Removal Procedure

  1. Remove the C and the D pillar trim. Refer to TRIM REPLACEMENT THIRD PILLAR RIGHT  and TRIM REPLACEMENT FOURTH PILLAR LEFT  .
  2. Remove the jack access panel.
  3. Remove the upper and the lower belt anchors. Refer to SEAT BELT SYSTEM in Seat Belts.
  4. Remove the cargo net bolt.
  5. Remove the screw that retains the panel to the C pillar.
  6. Use the J 38778 in order to release the fasteners that retain the panel to the vehicle.

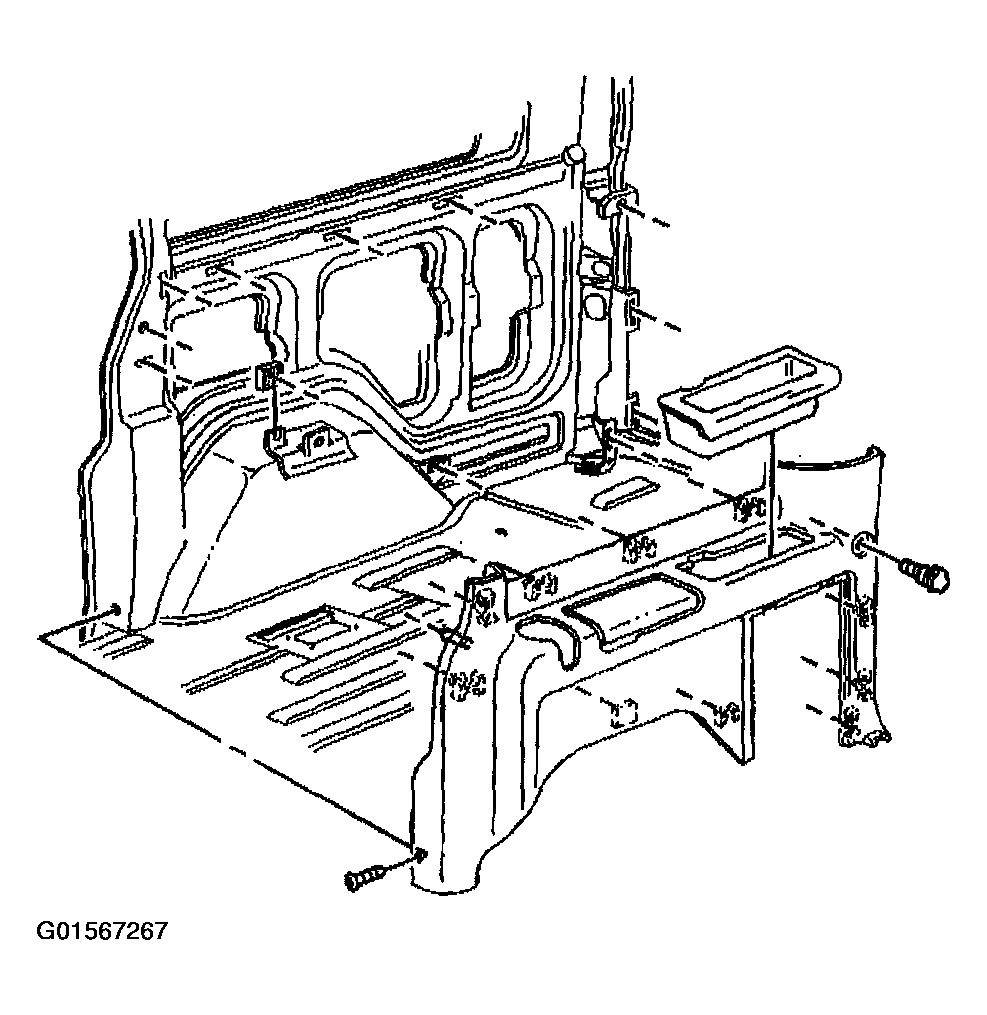

    Fig 1: Removing Trim Panel To The Vehicle (Right Body Side)
    G01567267Courtesy of GENERAL MOTORS CORP.
