Removal Procedure

  1. Remove the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT BODY SIDE FRONT LOWER .
  2. Remove the intermediate swing-out window latch. Refer to STATIONARY WINDOW SYSTEM in Stationary Windows.
  3. Remove the retaining screw at the B pillar.
  4. Use the J 38778 in order to remove the body side front upper trim panel from the vehicle.
  5. Disconnect the electrical connector from the rear audio controls, if equipped.
  6. Remove the rear audio controls from the trim panel. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT in Entertainment.

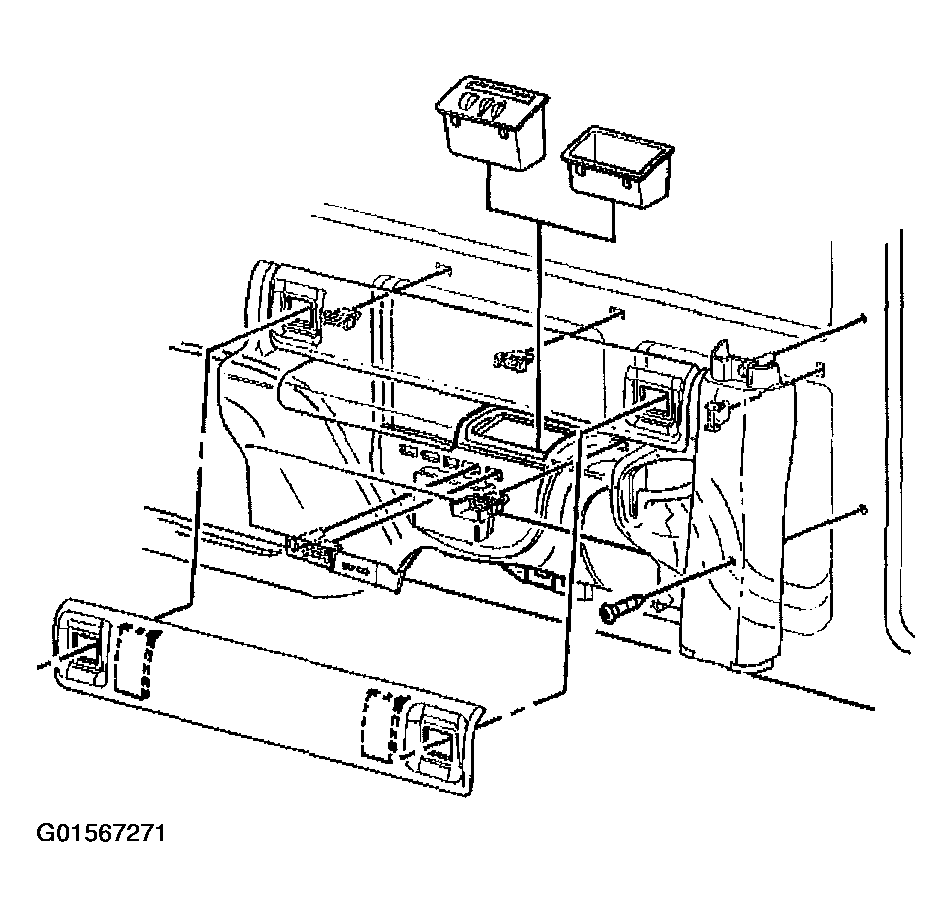

    Fig 1: Removing Body Side Front Upper Trim Panel
    G01567271Courtesy of GENERAL MOTORS CORP.
