Removal Procedure

  1. Remove the intermediate seat. Refer to SEAT SYSTEM in Seats.
  2. Remove the driver's door stepwell lamp cover retaining screw.
  3. Remove the stepwell lamp assembly from the body side lower storage pocket.
  4. Use the J 38778 in order to remove the body side front lower trim panel from the vehicle.

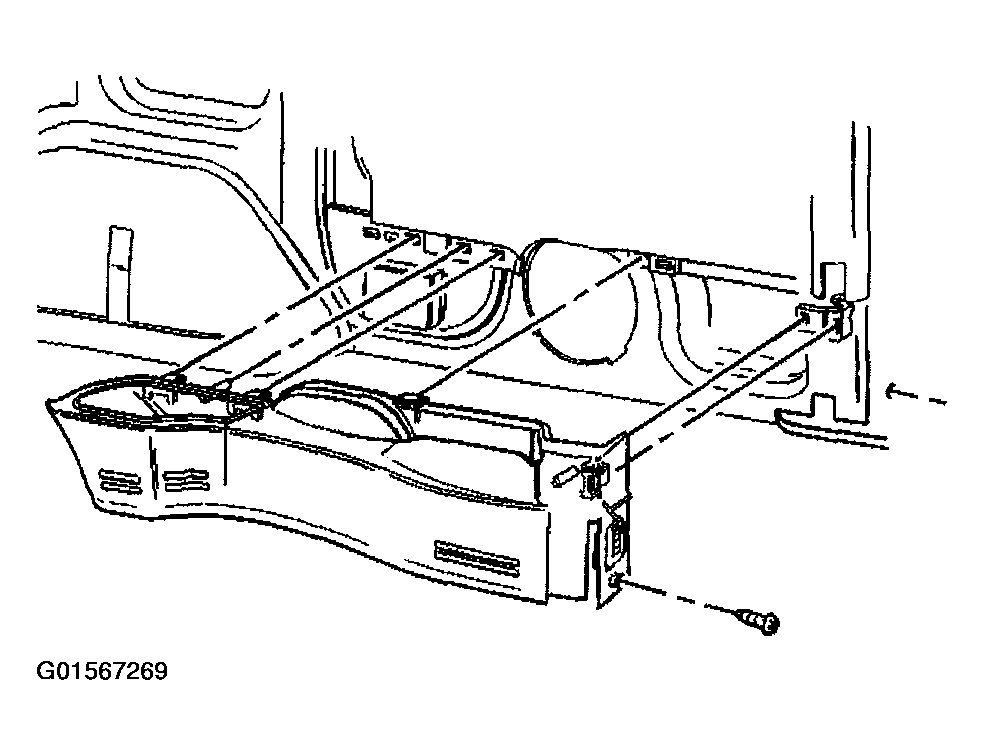

    Fig 1: Removing Body Side Front Lower Trim Panel
    G01567269Courtesy of GENERAL MOTORS CORP.
