Removal Procedure

  1. Remove the body side trim panel. Refer to the following procedures:
  2. Remove the wheelhouse carpet from the vehicle.

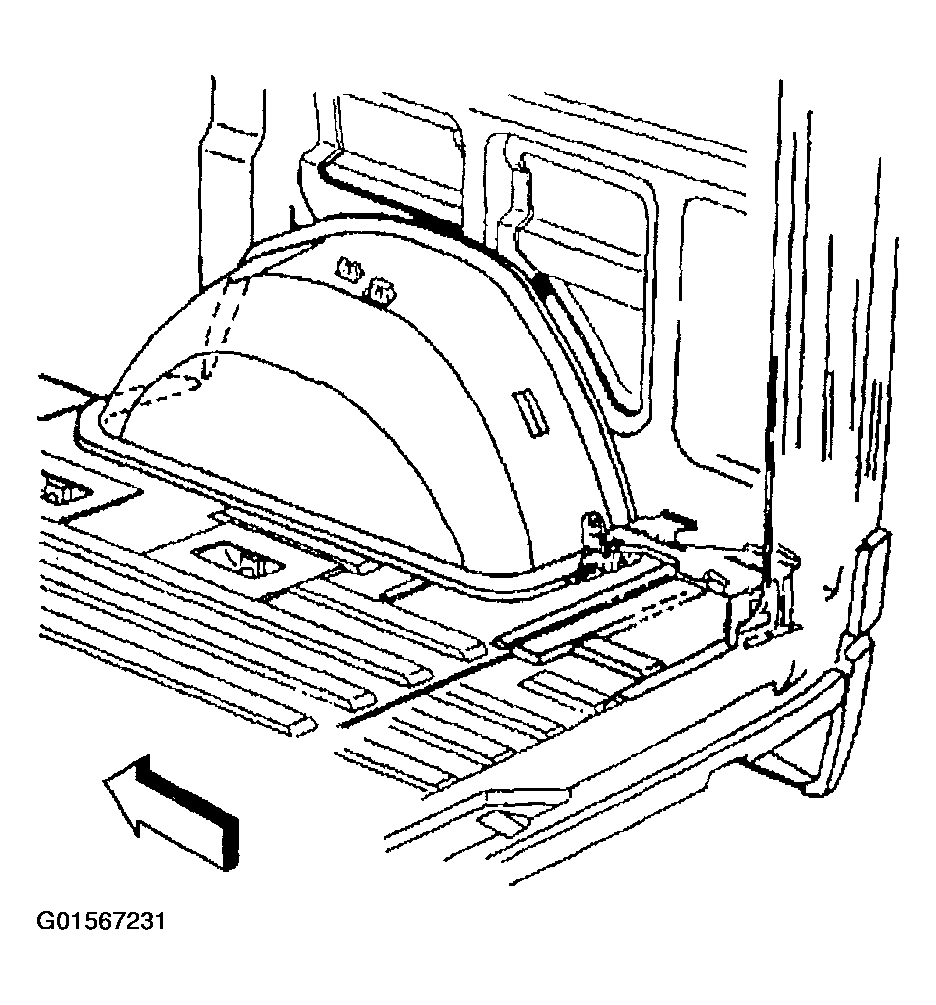

    Fig 1: Removing Rear Wheelhouse Carpet
    G01567231Courtesy of GENERAL MOTORS CORP.
