Removal Procedure

  1. Unsnap the seat belts from the second seat belt latches.
  2. Remove the seats from the vehicle. Refer to SEAT SYSTEM in Seats.
  3. Remove the front and the rear door trim plates. Refer to CARPET RETAINER REPLACEMENT .
  4. Remove the body side front lower trim panel, if required. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER  .
  5. Remove the bolt that retains each cargo net anchor to the floor of the vehicle, if equipped.

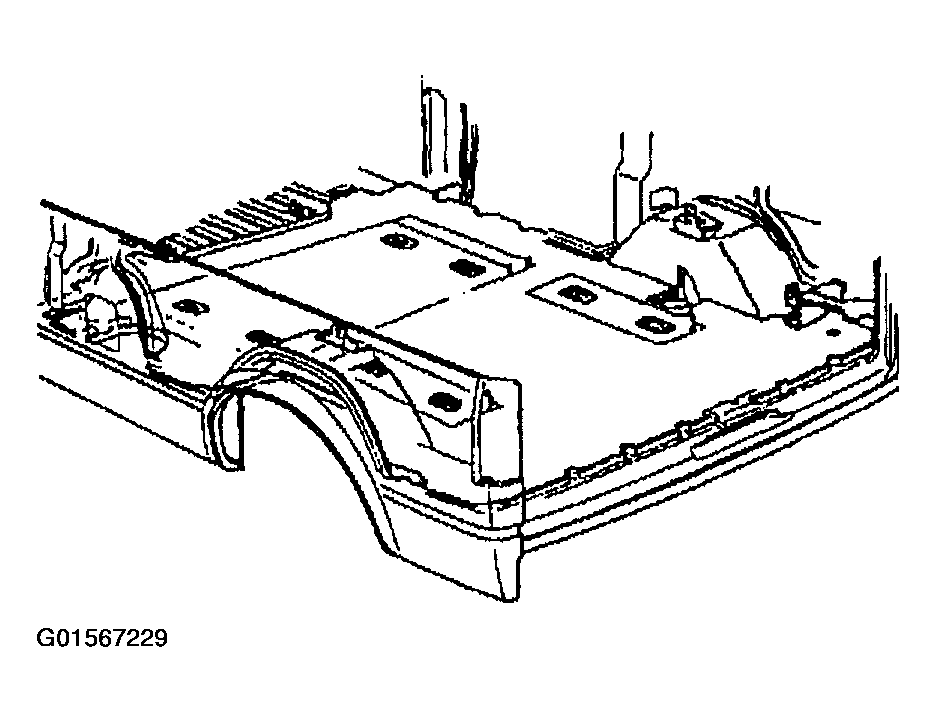

    Fig 1: Removing Rear Floor Carpet
    G01567229Courtesy of GENERAL MOTORS CORP.

    Important:  The carpet bezels are retained by sonic weld and are not to be removed from the carpet.

  6. Remove the carpet from the vehicle.
