Removal Procedure

  1. Remove the seats and the risers. Refer to SEAT SYSTEM .
  2. Remove the engine cover, if required. Refer to ENGINE COVER REPLACEMENT .
  3. Remove the trim plates from the front door openings. Refer to CARPET RETAINER REPLACEMENT .
  4. Remove the cowl side panel trim. Refer to TRIM PANEL REPLACEMENT - COWL SIDE  .
  5. Remove the throttle pedal guard.
  6. Remove the screws from the center floor air duct.
  7. Remove the center floor air duct.
  8. Remove the front side door lock pillar garnish molding, if required. Refer to GARNISH MOLDING REPLACEMENT LF LOCK PILLAR .
  9. Remove the carpet/mat from the vehicle.

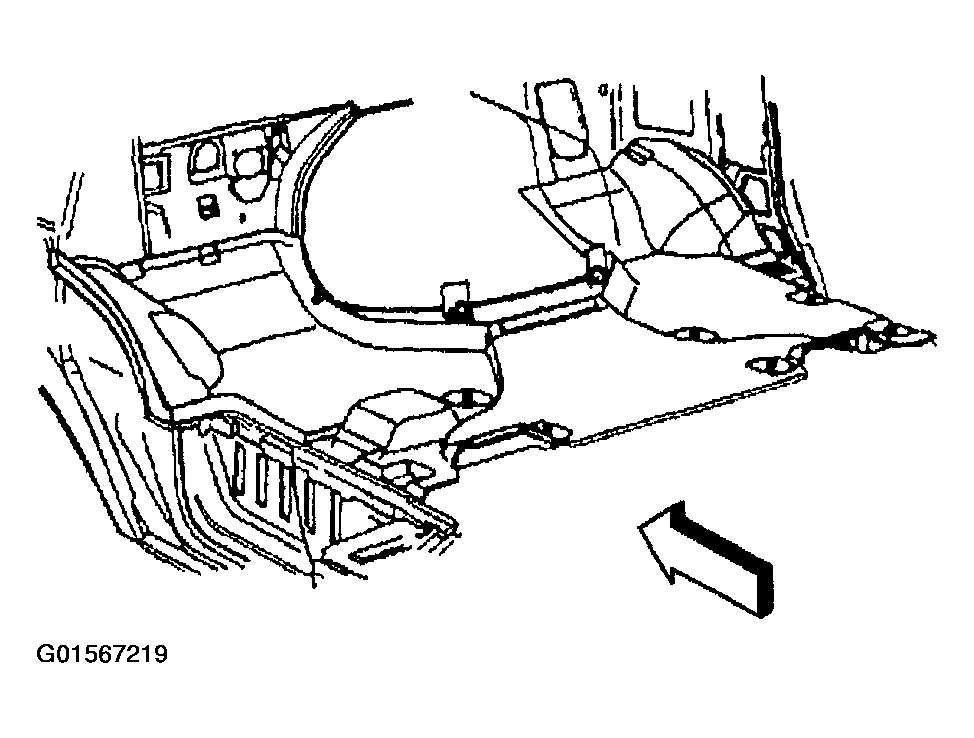

    Fig 1: Removing Carpet/Mat
    G01567219Courtesy of GENERAL MOTORS CORP.
