Removal Procedure

  1. Remove the screws from the step plate cover.
  2. Remove the step panel cover.

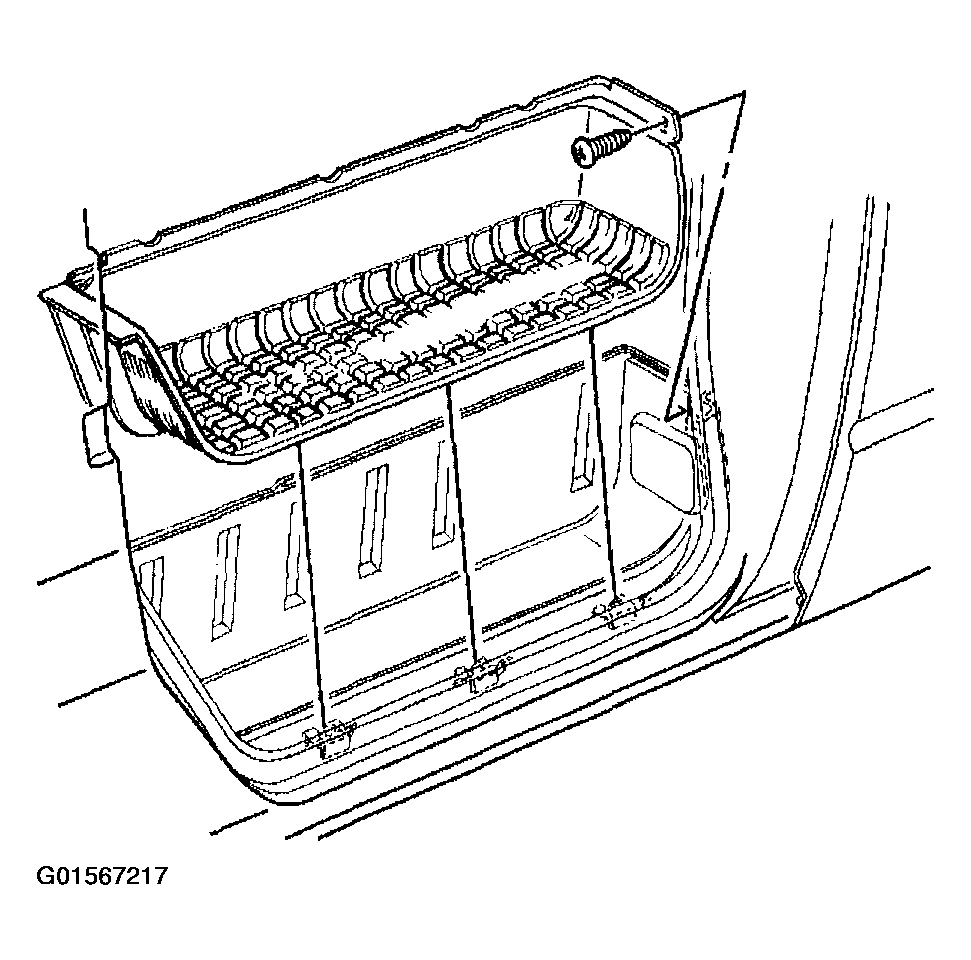

    Fig 1: Removing Step Panel Cover
    G01567217Courtesy of GENERAL MOTORS CORP.
