Removal Procedure

  1. Remove the sunshades. Refer to SUNSHADE REPLACEMENT .
  2. Remove the overhead console, if equipped. Refer to CONSOLE REPLACEMENT OVERHEAD .
  3. Remove the necessary moldings. Refer to the following procedures:
  4. Remove the right seat belt retractor. Refer to SEAT BELT SYSTEM in Seat Belts.
  5. Remove the dome lamp from the front headliner. Refer to DOME LAMP REPLACEMENT in Lighting Systems.
  6. Remove the sliding door track garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR  .
  7. Remove the coat hooks. Refer to COAT HOOK REPLACEMENT .
  8. Remove the front headliner from the roof panel by separating the retaining strips.
  9. With the aid of an assistant, remove the front headliner from the vehicle.
    Fig 1: Removing Front Headliner
    G01567233Courtesy of GENERAL MOTORS CORP.
  10. Remove the 2 push-in retainers (4) at the front edge of the rear headliner (2).
  11. Detach the rear headliner (2) from the retaining strips (3).
  12. Remove the rear headliner (2) from the roof panel (1).

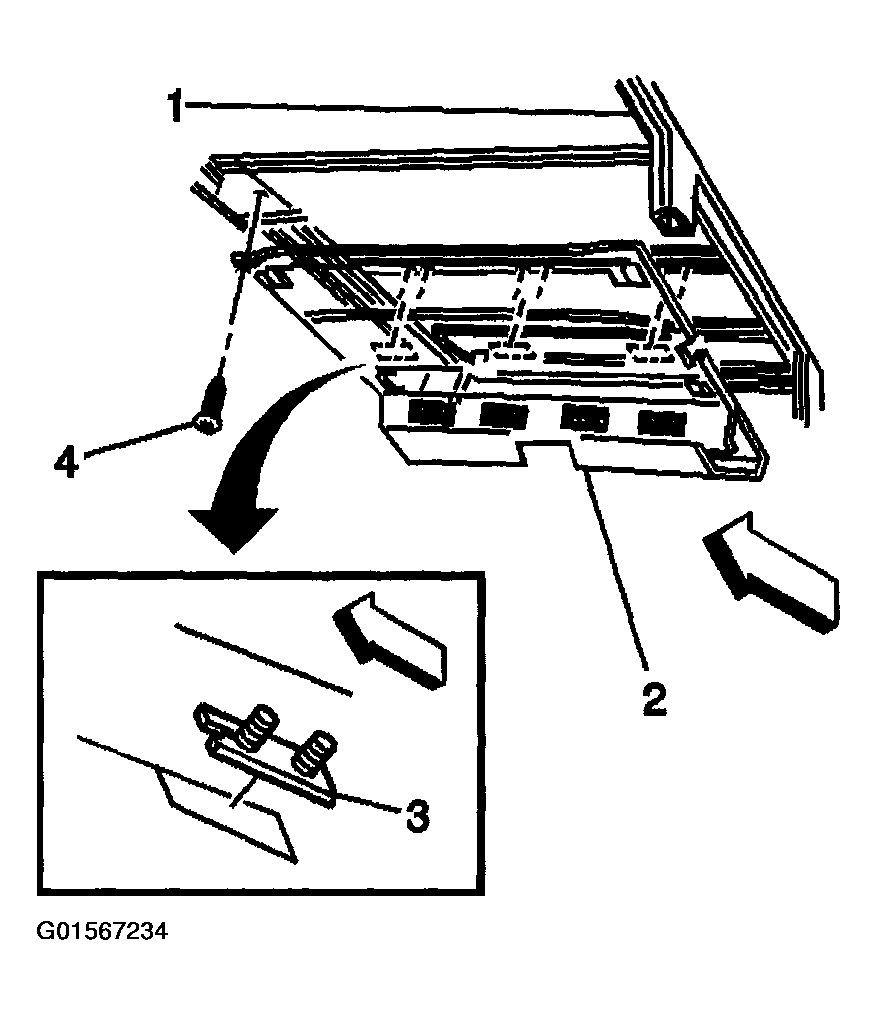

    Fig 2: Removing Push-In Retainers And Rear Headliner
    G01567234Courtesy of GENERAL MOTORS CORP.
