Removal Procedure

  1. Remove the retaining screws from the upper garnish molding.
  2. Use J 38778  in order to release the molding retainers.

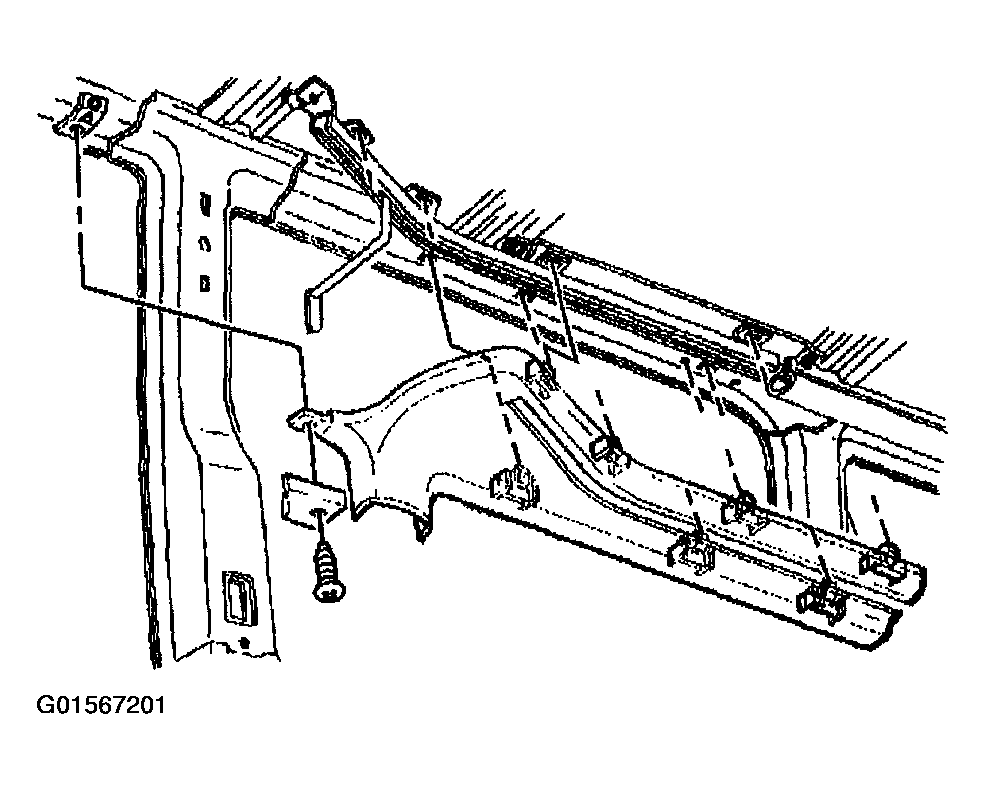

    Fig 1: Removing Retaining Screws From Upper Garnish Molding
    G01567201Courtesy of GENERAL MOTORS CORP.
