Removal Procedure

  1. Remove the swing-out window latch from the door, if equipped. Refer to WINDOW REPLACEMENT - SWING OUT .
  2. Remove the door handle bezel screws.
  3. Remove the door handle bezel.
  4. Use J 38778  in order to release the molding retainers.

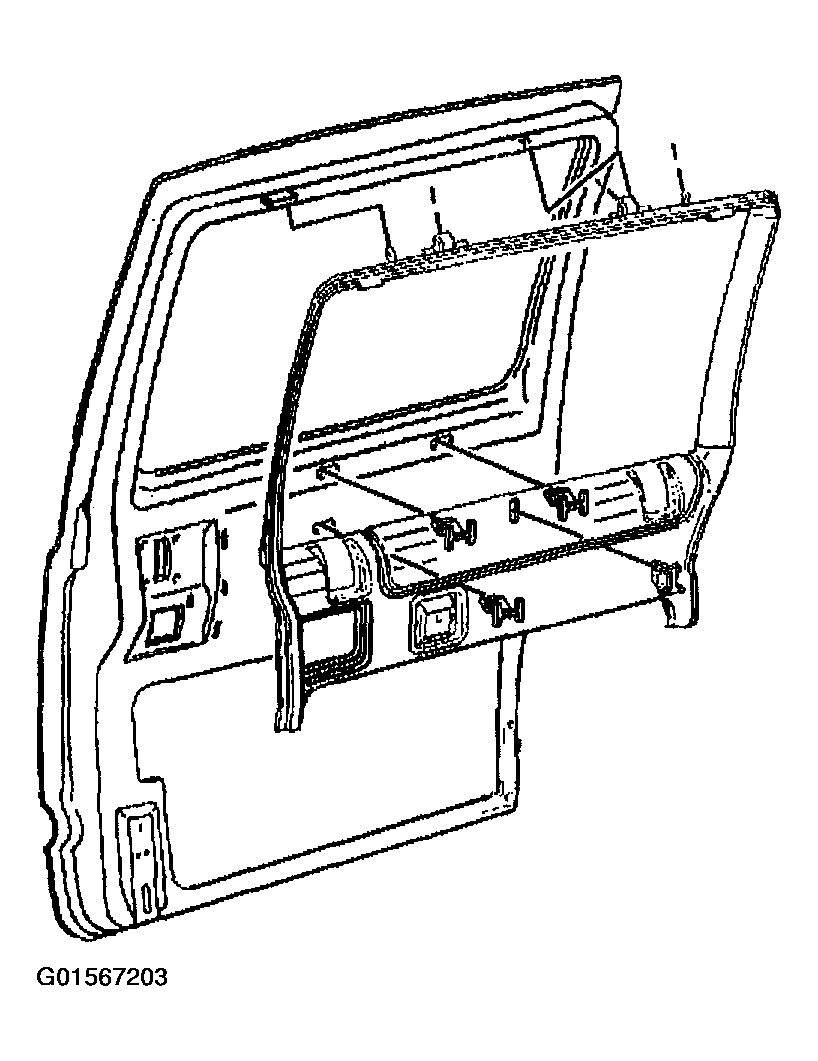

    Fig 1: Removing Garnish Molding - Sliding Door
    G01567203Courtesy of GENERAL MOTORS CORP.
