Removal Procedure

  1. Remove the screws that retain the door frame garnish molding to the vehicle.
  2. Remove the door frame garnish molding.
  3. Disconnect the electrical connector.

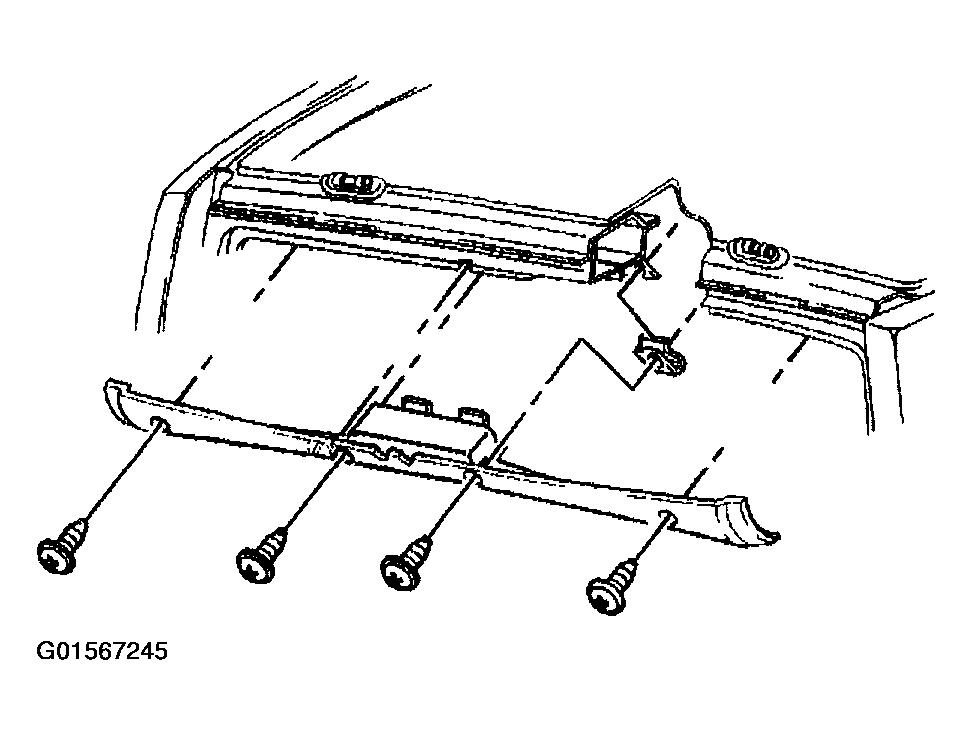

    Fig 1: Removing Door Frame Garnish Molding - Rear Upper
    G01567245Courtesy of GENERAL MOTORS CORP.
