Removal Procedure

  1. Remove the retaining screw from the garnish molding.
  2. Remove the driver's side seat belt upper mounting bolt. Refer SEAT BELT SYSTEM in Seat Belts.
  3. Pull back on the garnish molding in order to release the fasteners.
  4. Remove the garnish molding from the pillar.

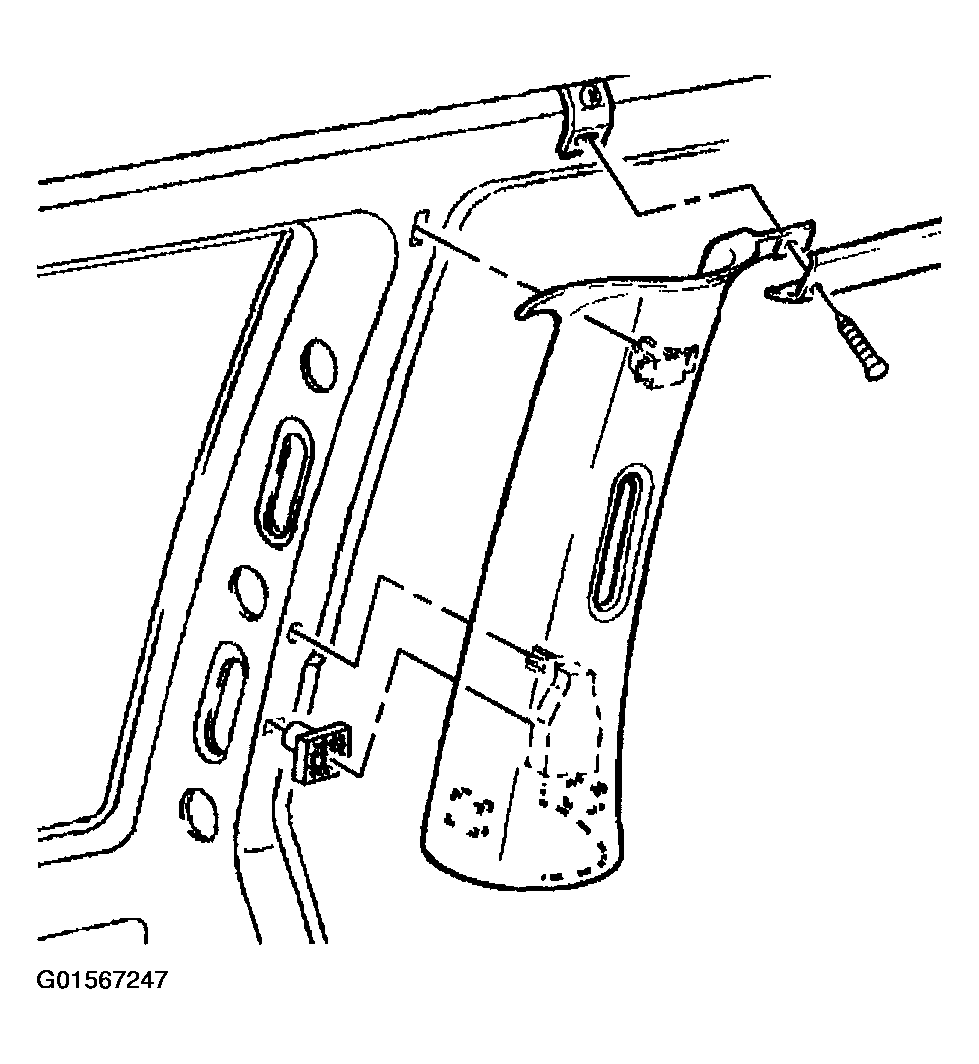

    Fig 1: Removing Garnish Molding - LF Lock Pillar
    G01567247Courtesy of GENERAL MOTORS CORP.
