Removal Procedure

  1. Remove the instrument panel extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the floor air outlet duct. Refer to AIR OUTLET REPLACEMENT - CENTER FLOOR in Heating, Ventilation and Air Conditioning.

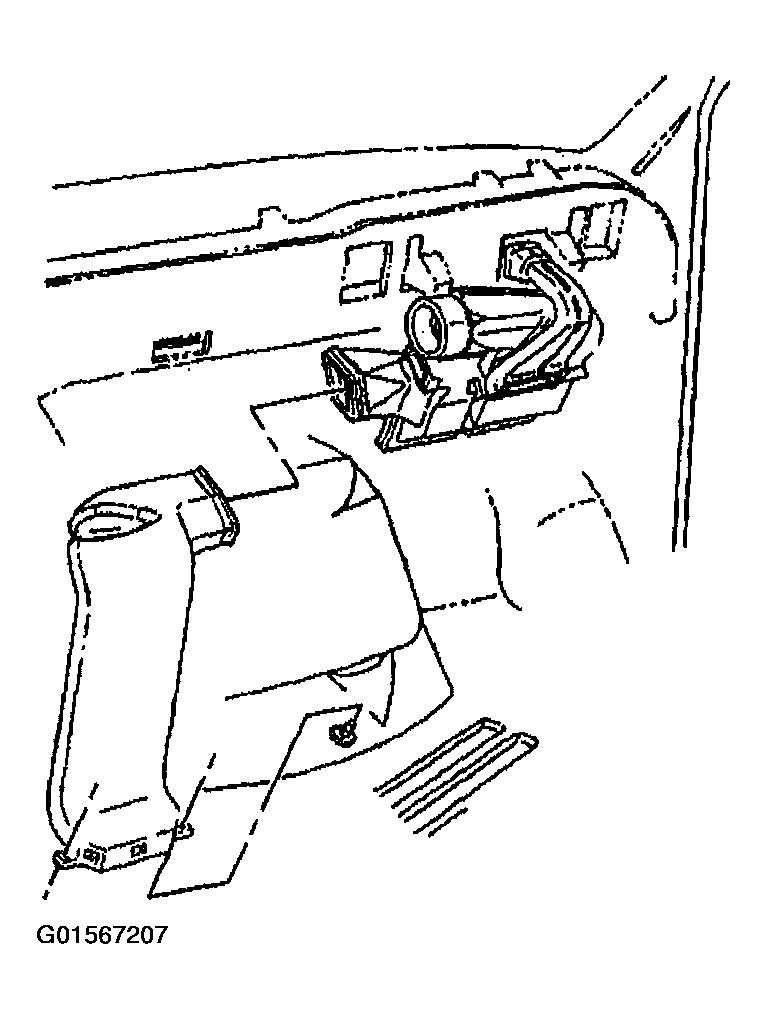

    Fig 1: Removing Floor Air Outlet Duct
    G01567207Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts from the brackets:
    1. 3.1. Loosen the bolt.
    2. 3.2. Rotate the bracket out of the way.
  4. Remove the latches.

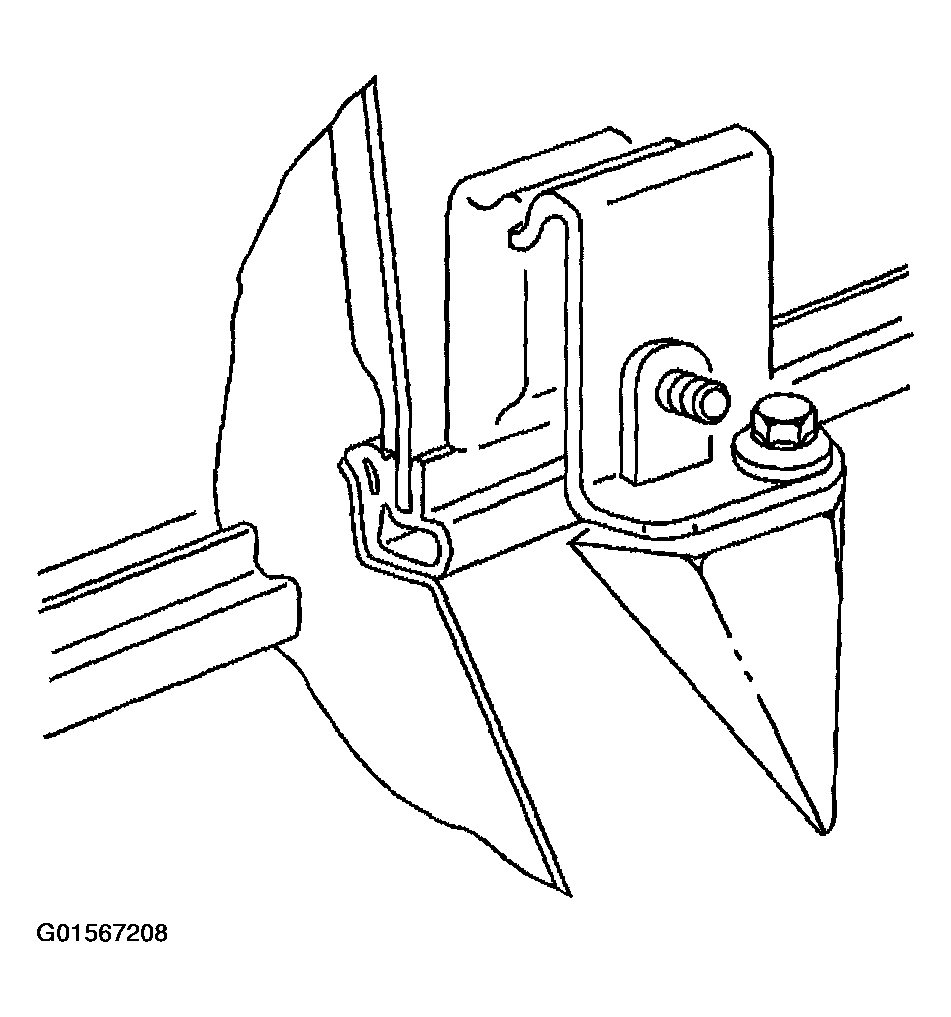

    Fig 2: View Of Engine Cover Latches
    G01567208Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws.
    Fig 3: Removing Engine Cover Screws
    G01567209Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine cover.

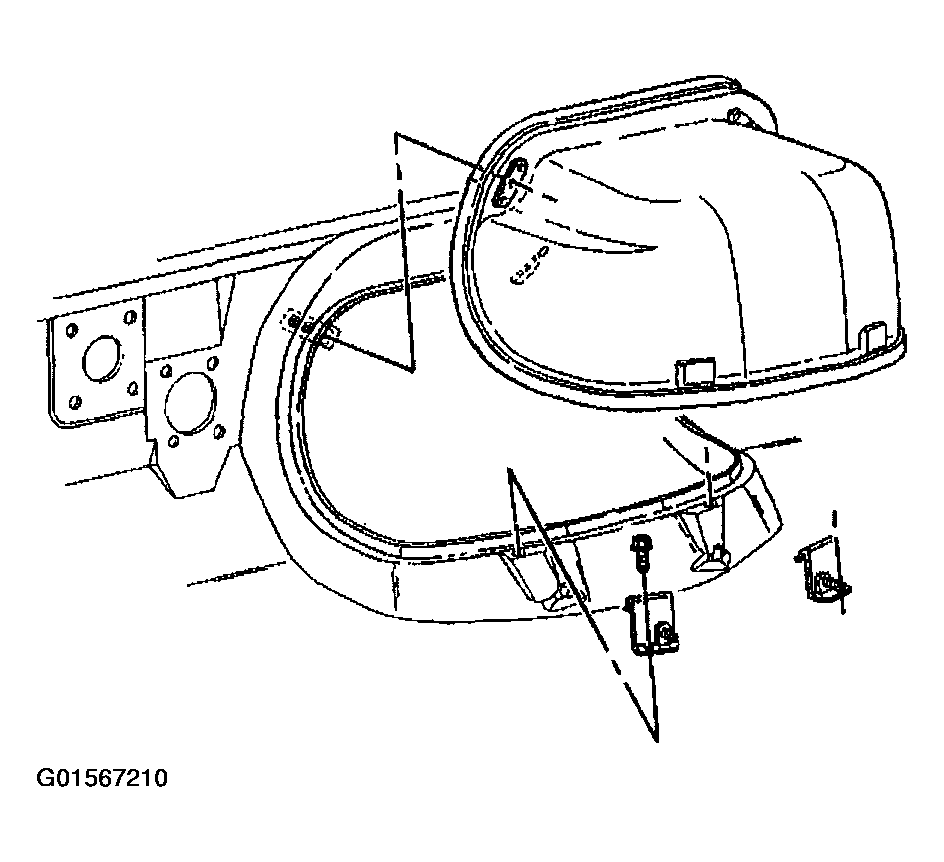

    Fig 4: Removing Engine Cover
    G01567210Courtesy of GENERAL MOTORS CORP.
