Removal Procedure

Because the compass system is so complex and susceptible to outside influences, examine the system thoroughly before performing any repairs. Diagnose the system in an area free from potential interference, such as an open field. Recalibrate the system before performing any other repairs in order to verify the existence of a problem. Refer to ELECTRONIC COMPASS CALIBRATION in Instrument Panel, Gages and Console.

1. Remove the retaining screws from the overhead console.
   1. 1.1. Remove the dome lamp lens from the overhead console.
   2. 1.2. Remove the front screws from the overhead console.
   3. 1.3. Remove the rear screws from the overhead console.

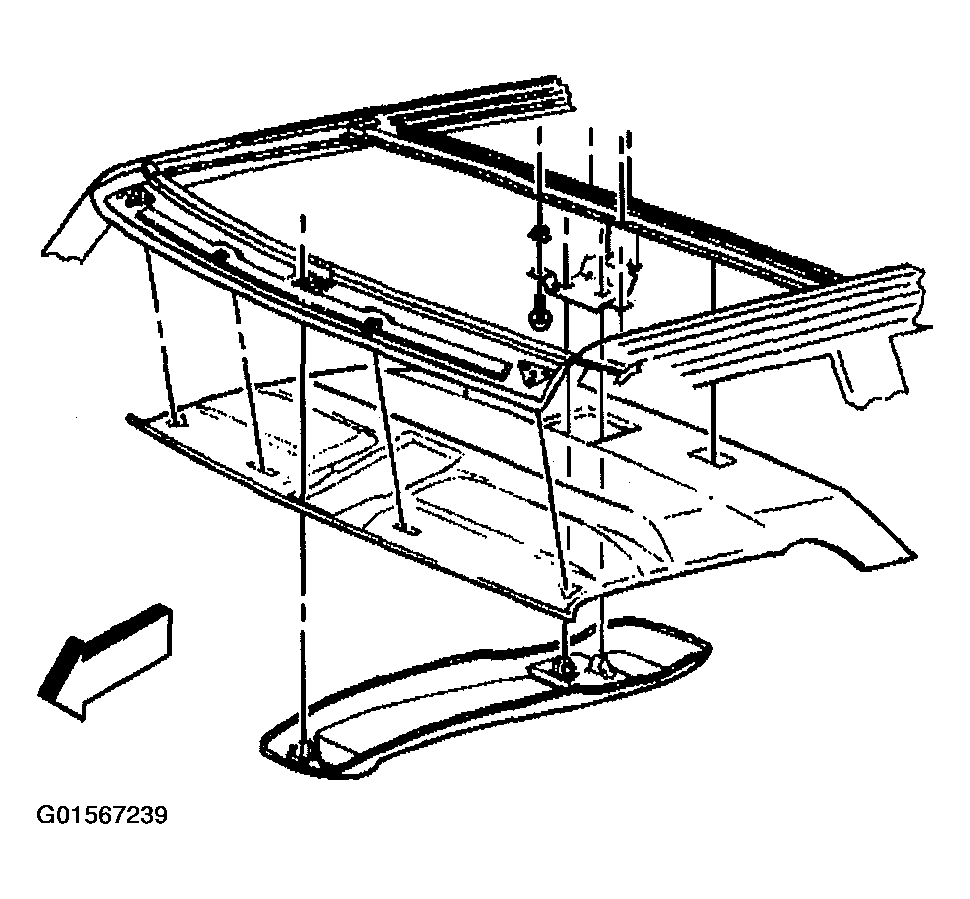

      Fig 1: Removing Overhead Console

      Courtesy of GENERAL MOTORS CORP.
2. Disconnect the electrical connectors.
3. Remove the overhead console as follows:
   1. 3.1. Swing the overhead console downward.
   2. 3.2. Pull the overhead console forward in order to clear the rear mounting tabs.
