Removal Procedure

  1. Open the door(s).
  2. Remove the screws that retain the left front door step trim plate to the vehicle.

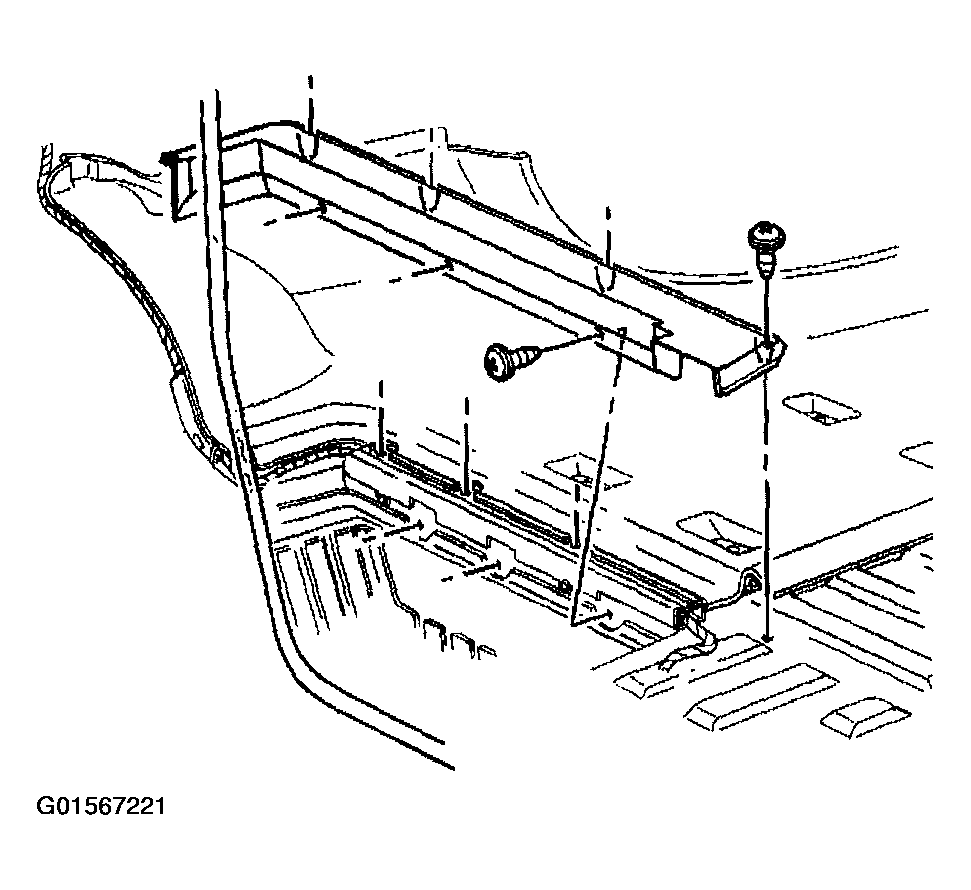

    Fig 1: Removing Screws Retaining Left Front Door Step Trim Plate
    G01567221Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws that retain the right front door step trim plate to the vehicle.
    Fig 2: Removing Screws Retaining Right Front Door Step Trim Plate
    G01567222Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the sliding door step trim plate to the vehicle.

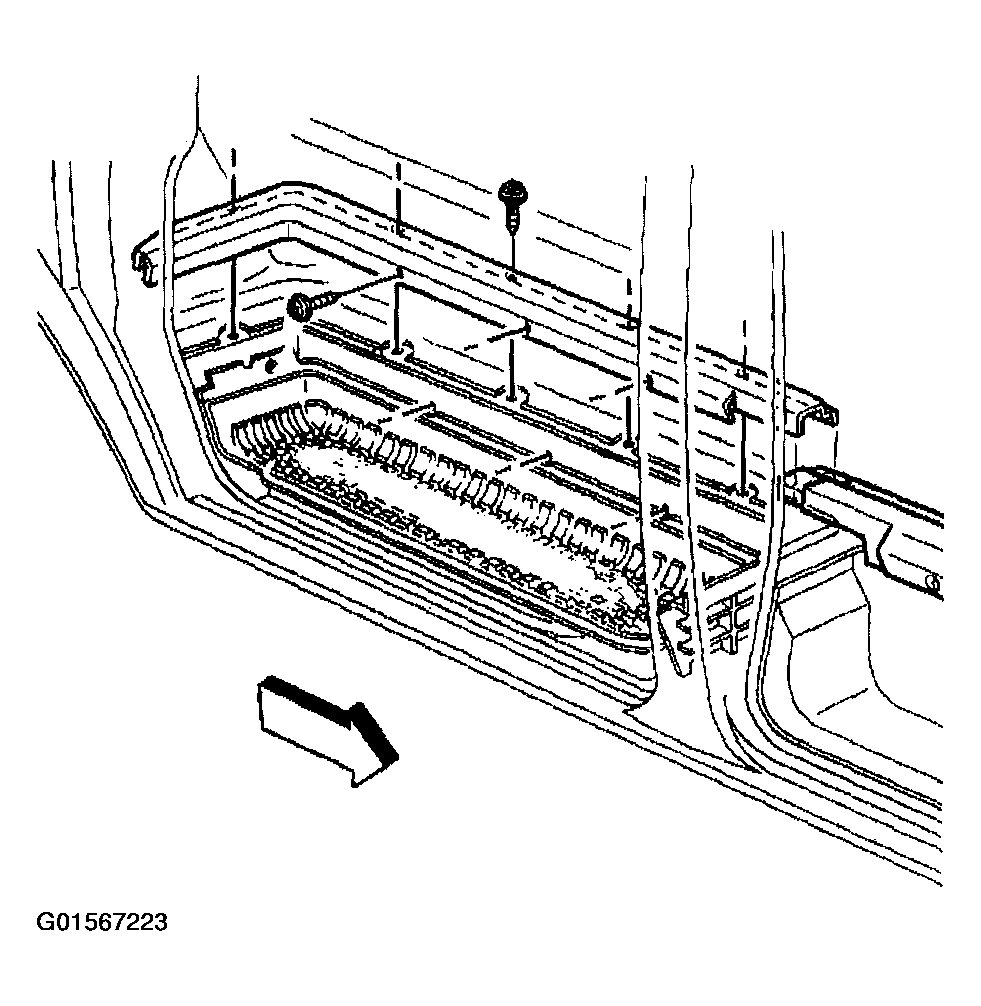

    Fig 3: Removing Screws Retaining Sliding Door Step Trim Plate
    G01567223Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws that retain the rear trim plate to the vehicle.
  6. Remove the trim plate from the vehicle.

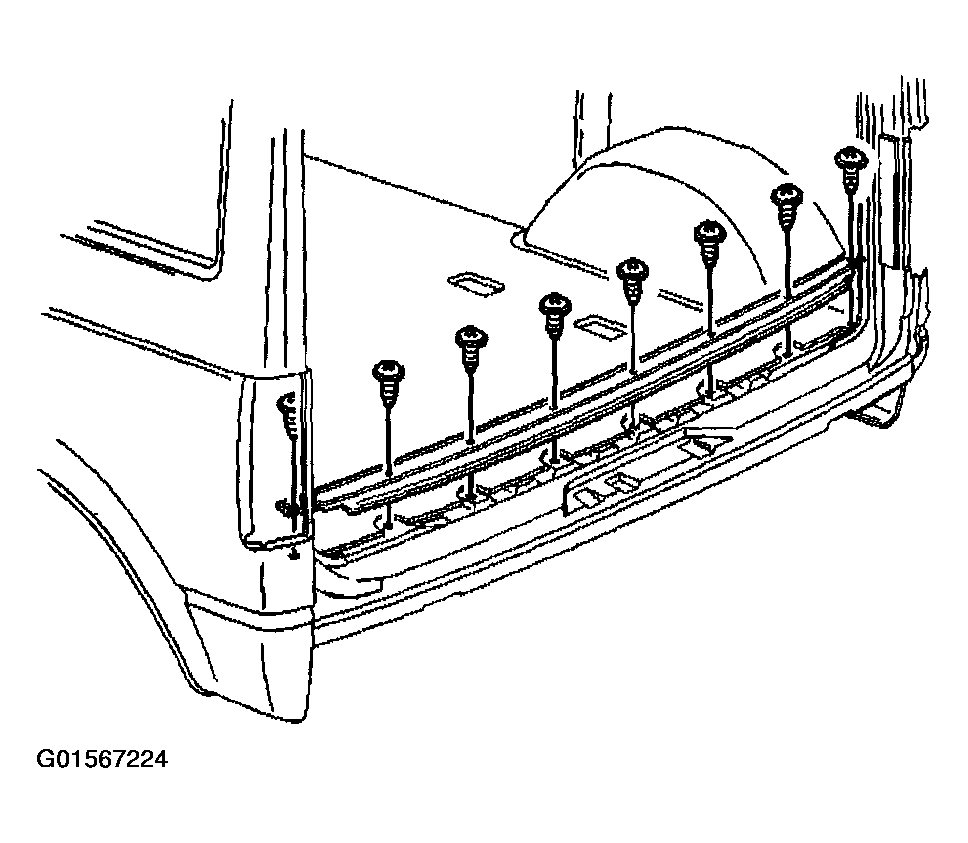

    Fig 4: Removing Rear Trim Plate
    G01567224Courtesy of GENERAL MOTORS CORP.
