Overhead Console Description

The overhead console is a convenience package that contains the following components:

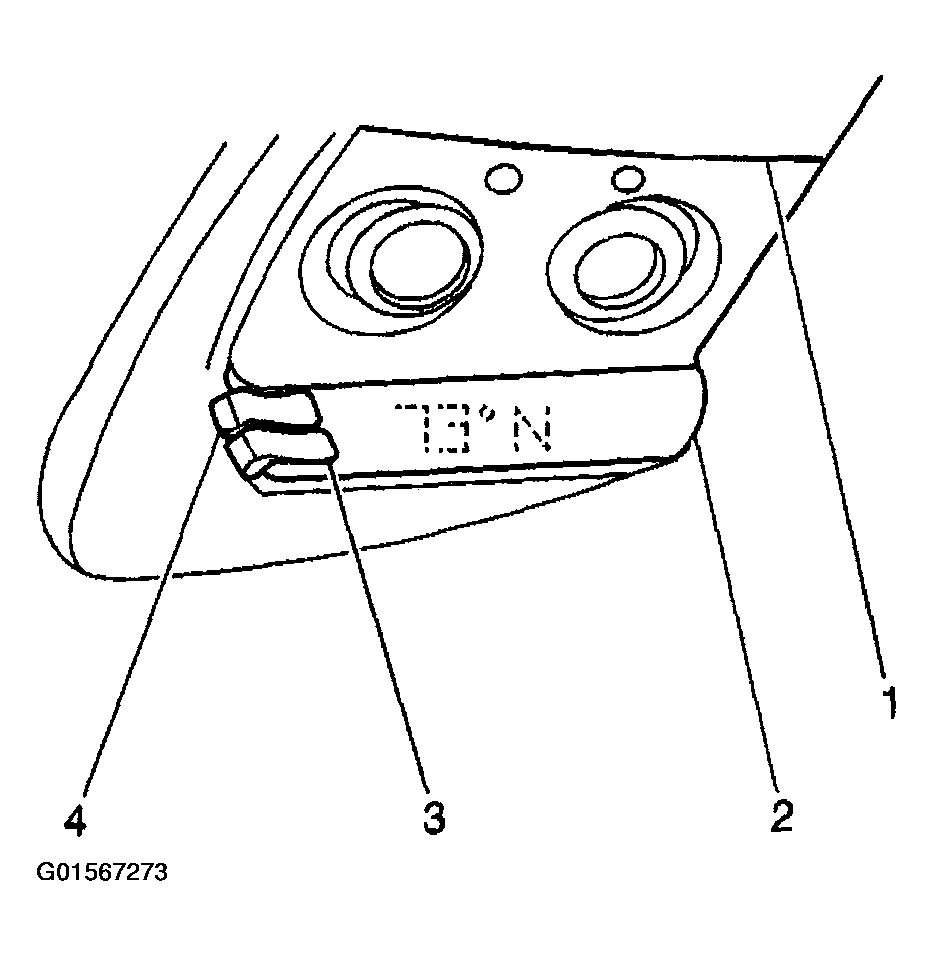

Fig 1: Locating Components Of Overhead Console (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

• A digital display (4) that provides:
  • The outside temperature
  • Eight primary compass readings indicating the direction the vehicle is travelling
• Two switches (3) including:
  • An ON/OFF switch for the temperature/compass display
  • A U.S./METRIC switch that changes the temperature readout from degrees Fahrenheit (F) to degrees Celsius (C)

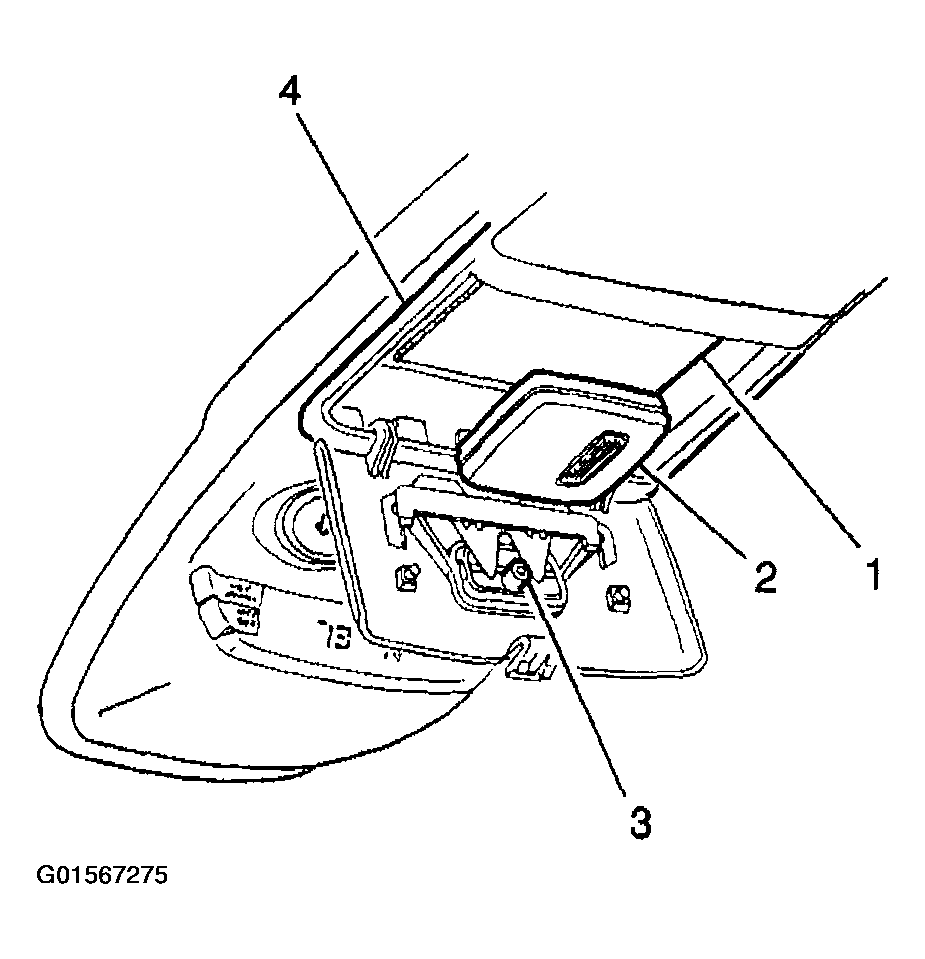

    Fig 2: Locating Components Of Overhead Console (2 Of 3)

    Courtesy of GENERAL MOTORS CORP.
• Two pivoting courtesy/map lamps (1)

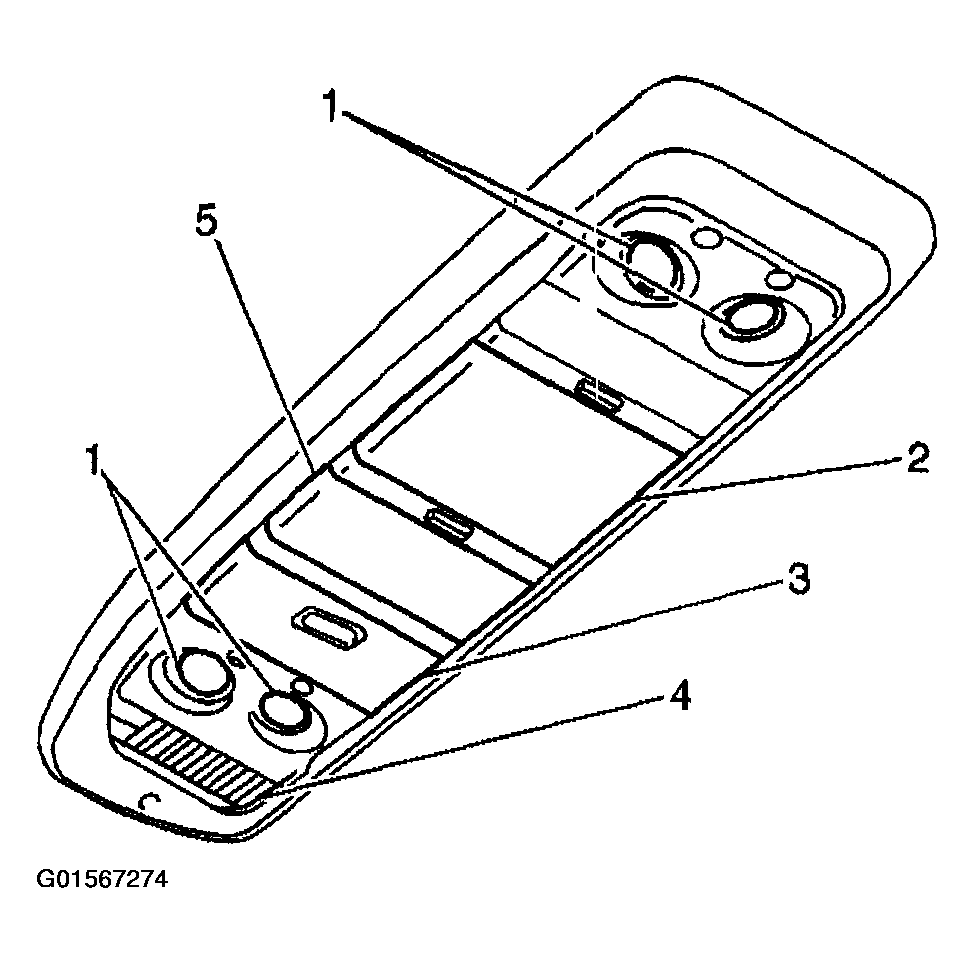

  Fig 3: Locating Components Of Overhead Console (3 Of 3)

  Courtesy of GENERAL MOTORS CORP.
• A compartment (4) for a garage door opener with a transmitter (2) that can be activated by pressing the button (3) on the compartment door.
• A compartment for storing sunglasses
• A compartment for storing compact discs or tapes

For more information on the overhead console, refer to DRIVER INFORMATION CENTER (DIC) DESCRIPTION AND OPERATION in Instrument Panel, Gages and Console.
