Removal Procedure

  1. Remove the park/turn signal lamp. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT .
  2. Remove the screws from the grille to radiator support.
  3. Remove the screw from the signal housing.
  4. Remove the grille from the vehicle.

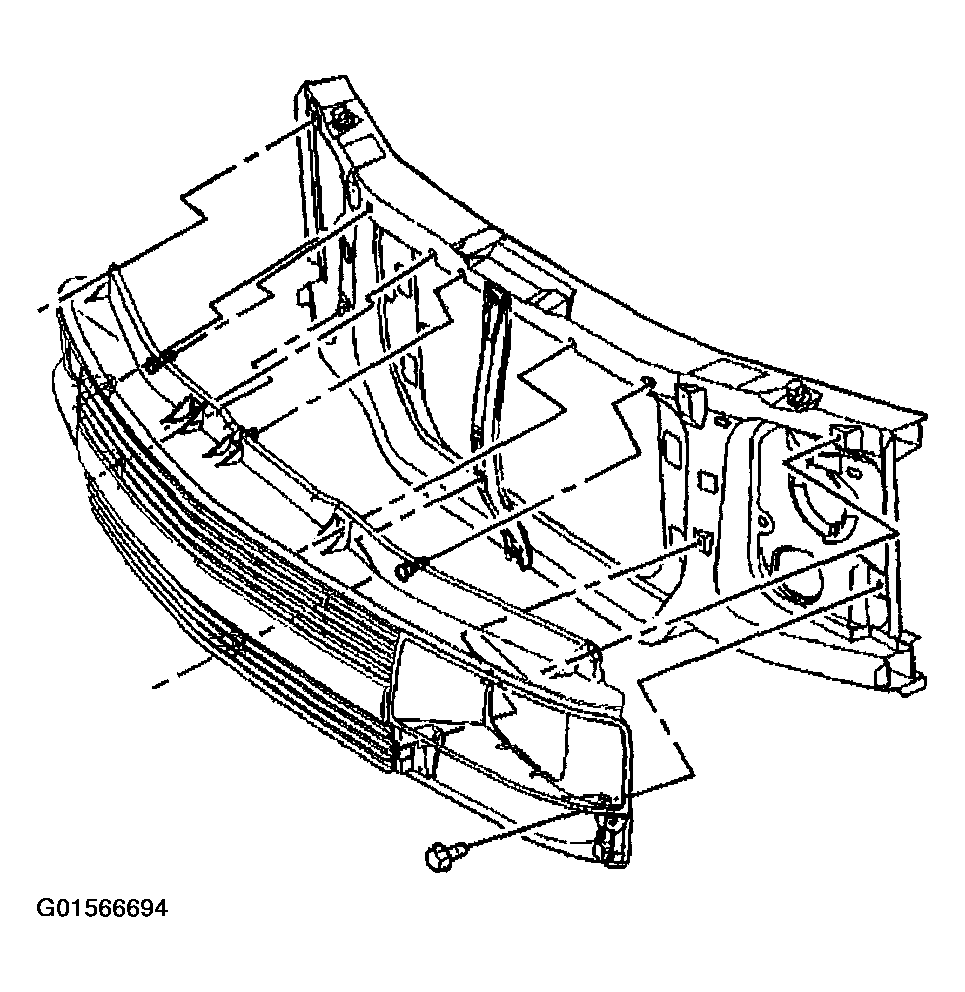

    Fig 1: Removing Grille From Vehicle
    G01566694Courtesy of GENERAL MOTORS CORP.
