Removal Procedure

  1. Remove the grille from the vehicle. Refer to GRILLE REPLACEMENT .
  2. Protect the face of the grille while removing the grille emblem.
  3. Remove the nuts from the back side of the grille emblem.
  4. Remove the grille emblem from the grille.

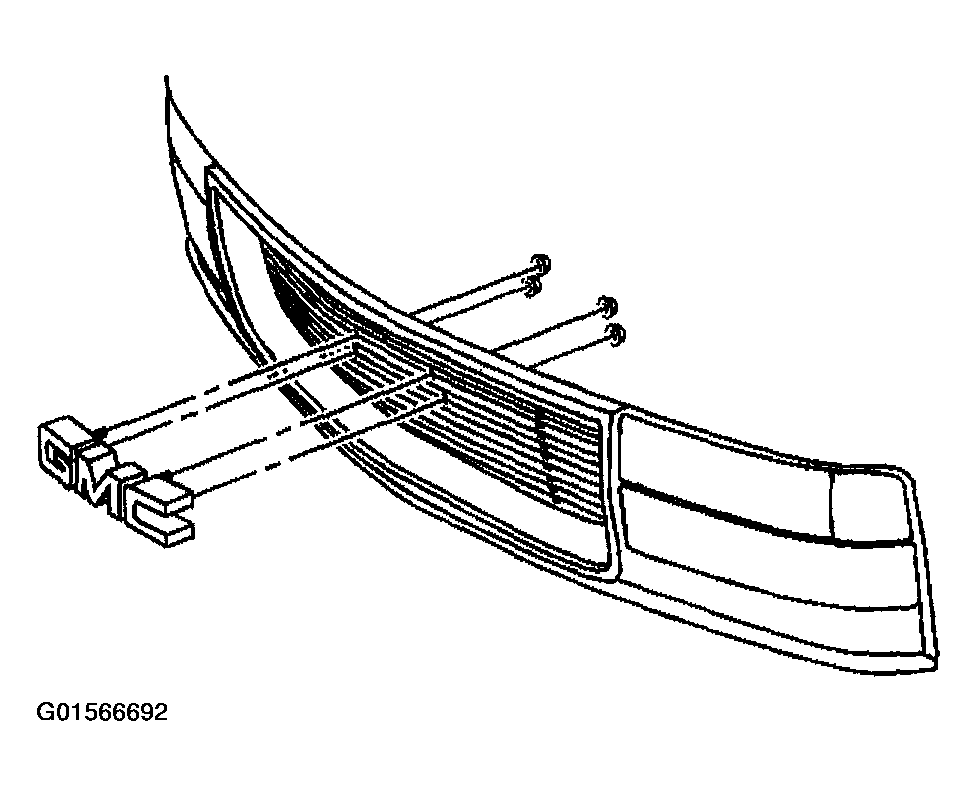

    Fig 1: Removing Grille Emblem From Grille
    G01566692Courtesy of GENERAL MOTORS CORP.
