Removal Procedure

  1. Remove the rear corner extension molding retainers.
  2. Remove the rear corner extension molding.
  3. Remove the cladding screws.
  4. Remove the cladding retainers.
  5. Remove the cladding from the body. Refer to CLADDING REPLACEMENT - ADHESIVE RETAINED .

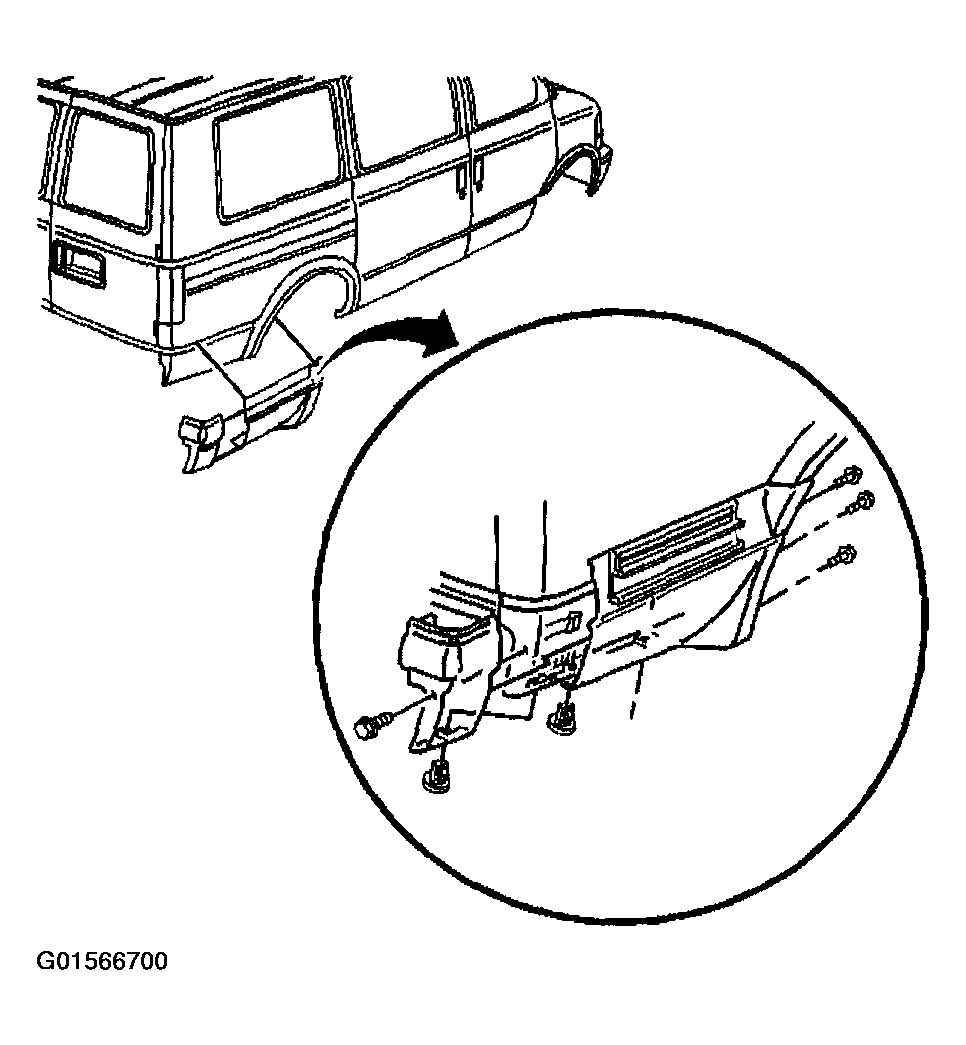

    Fig 1: Removing Cladding From Body
    G01566700Courtesy of GENERAL MOTORS CORP.
