Removal Procedure

  1. Remove the screws from the cladding.
  2. Remove the retainers from the wheelhouse.
  3. Remove the nut on the back of the cladding from the stud.
  4. Remove the cladding from the retaining rail.

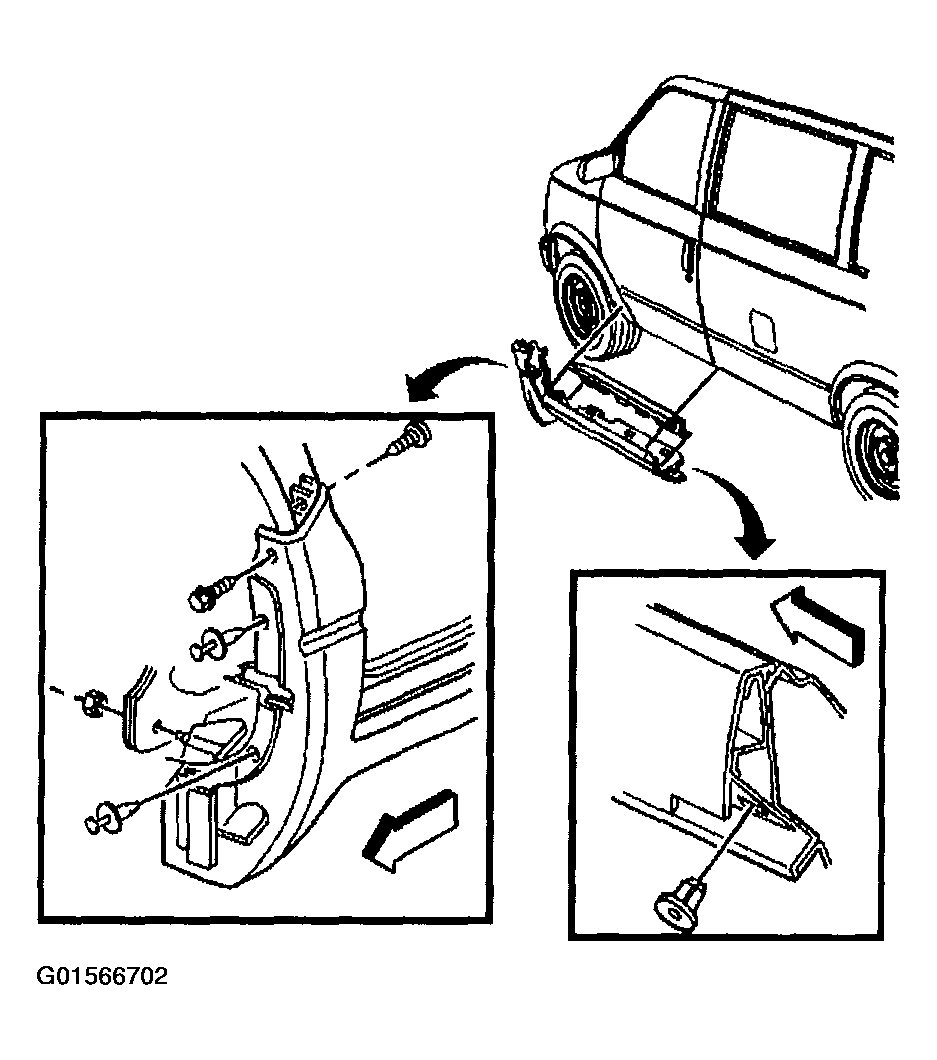

    Fig 1: Removing Cladding From Retaining Rail (Left Rocker Panel)
    G01566702Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining rail screws.
  6. Remove the retaining rail from the body.

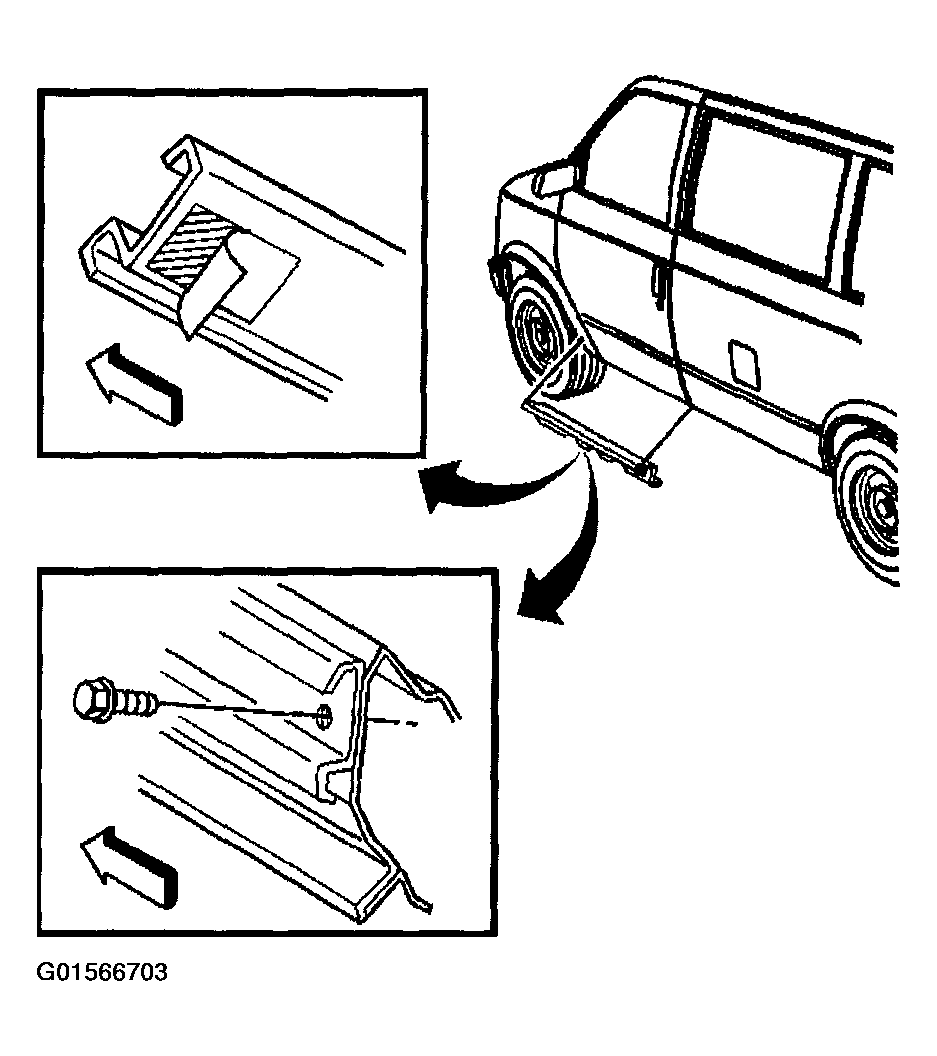

    Fig 2: Removing Retaining Rail From Body (Left Rocker Panel)
    G01566703Courtesy of GENERAL MOTORS CORP.
