Removal Procedure

  1. Remove the wheel opening screws. If the vehicle is equipped with assist steps, the cladding will be shorter across the bottom.
  2. Remove the cladding from the rear quarter panel. Refer to CLADDING REPLACEMENT - ADHESIVE RETAINED .

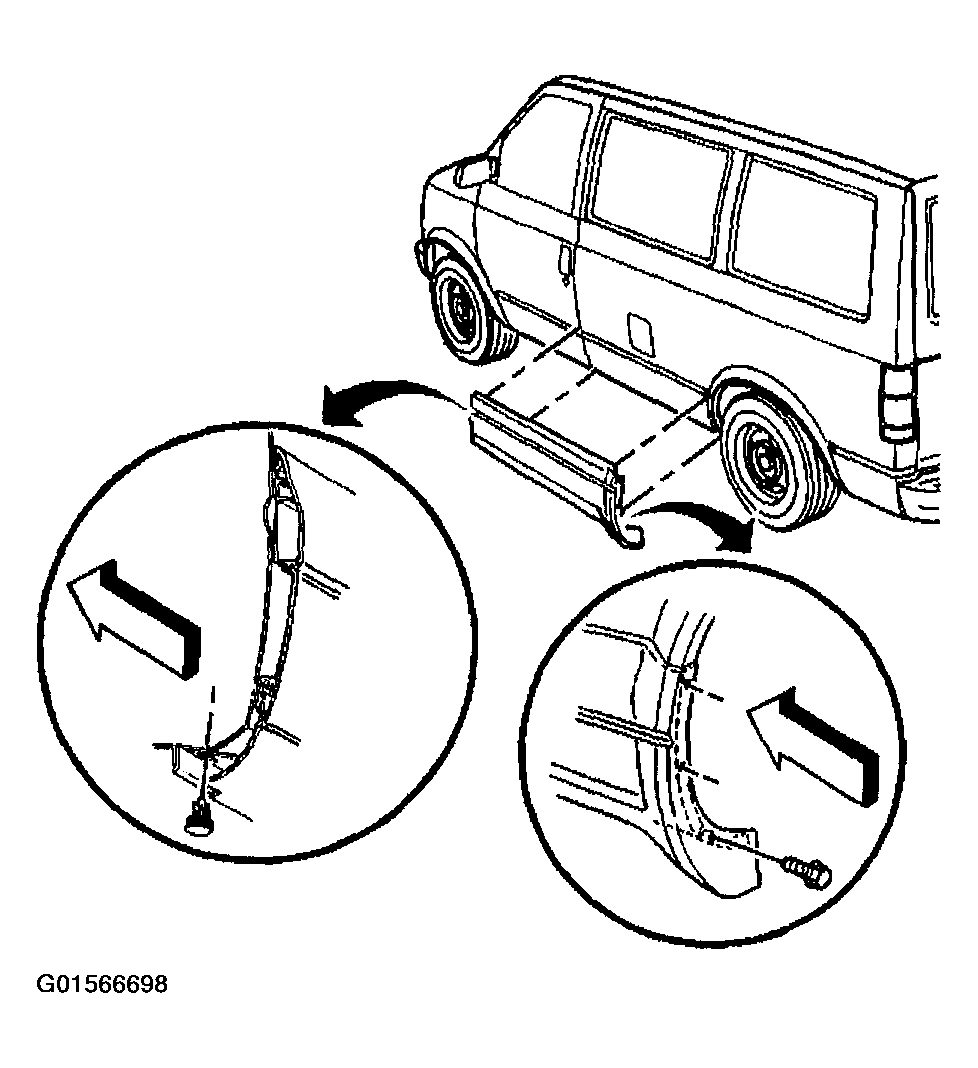

    Fig 1: Removing Cladding From Rear Quarter Panel
    G01566698Courtesy of GENERAL MOTORS CORP.
