Removal Procedure

  1. Apply masking tape to the body side border of the cladding in order to protect the body from scratches. The tape will also aid in aligning the cladding during installation.

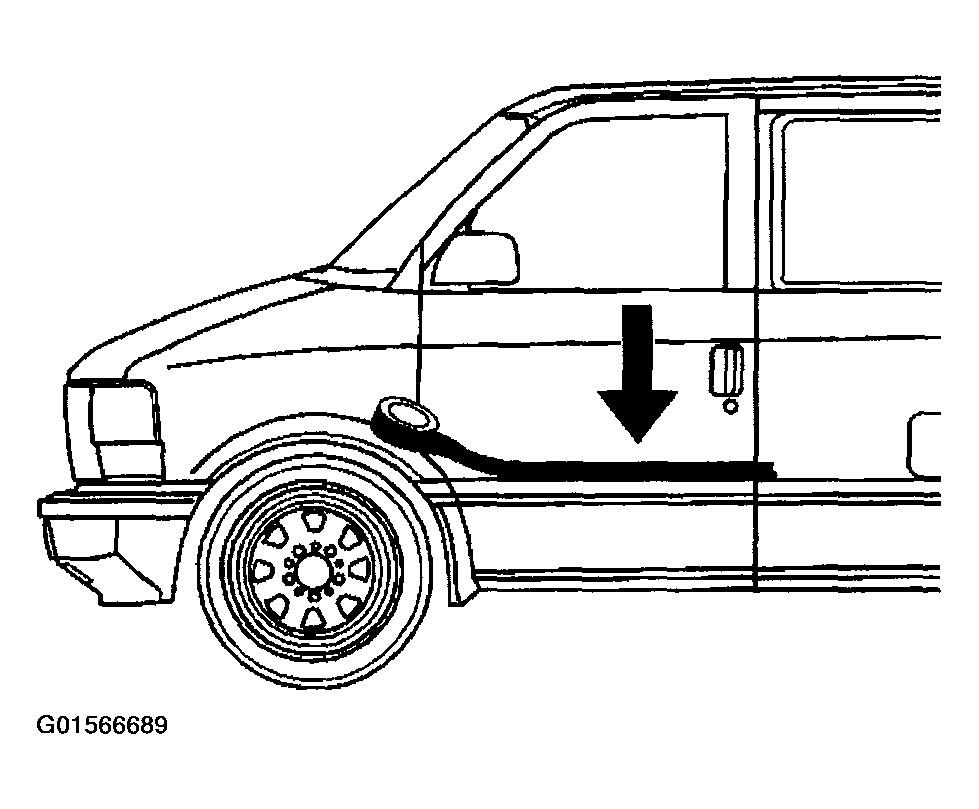

    Fig 1: Applying Masking Tape To Body Side Border Of Cladding
    G01566689Courtesy of GENERAL MOTORS CORP.
  2. Remove all of the mechanical fasteners. Refer to the Cladding Replacement procedure below that is specific to the cladding location.
  3. Use the J 41409  or a 0.8 mm (0.03 in) fishing line in order to cut through the adhesive material.
    Fig 2: Cutting Adhesive Material Using J 41409
    G01566690Courtesy of GENERAL MOTORS CORP.
