Removal Procedure

  1. Remove the step pad nuts.
  2. Disconnect the retainers.
  3. Remove the step pad from the bumper.

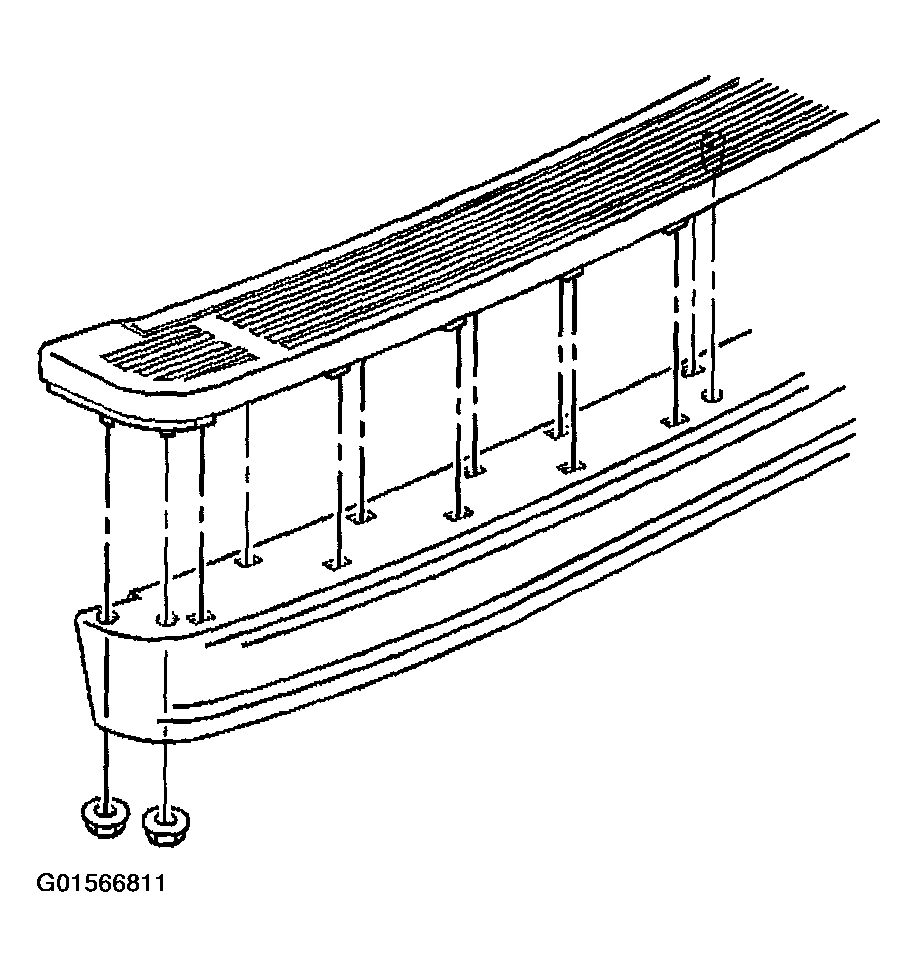

    Fig 1: Removing Step Pad From Rear Bumper
    G01566811Courtesy of GENERAL MOTORS CORP.
