Installation Procedure

  1. Align the center post to the hole in the bumper.
  2. Push in the retainers in order to fully seat the step pad to the bumper.
  3. Install the step pad nuts.

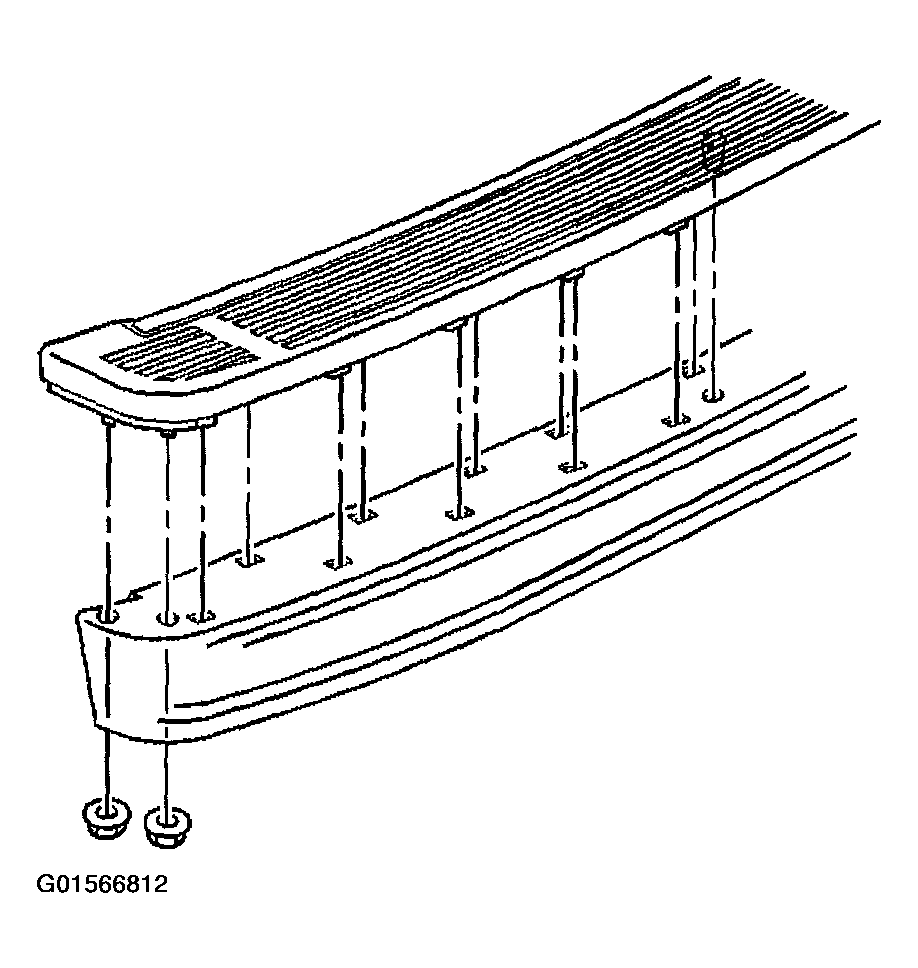

    Fig 1: Installing Step Pad To Rear Bumper
    G01566812Courtesy of GENERAL MOTORS CORP.
