Removal Procedure

  1. Remove the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .
  3. Remove the bracket bolts from the impact bar.
  4. Remove the impact bar from the vehicle.

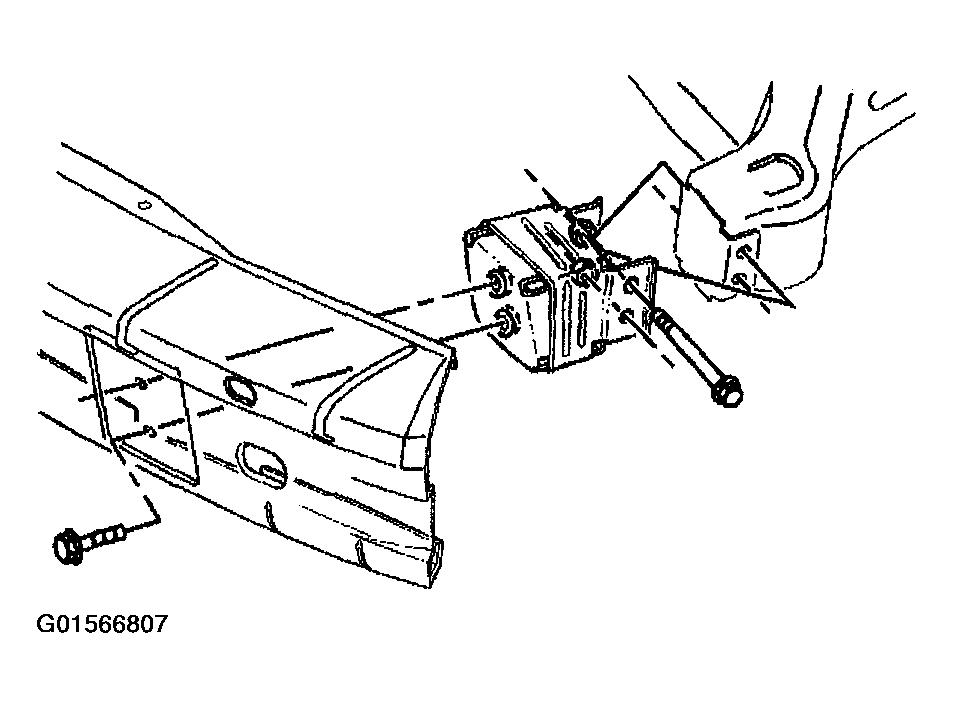

    Fig 1: Removing Impact Bar From The Vehicle
    G01566807Courtesy of GENERAL MOTORS CORP.
