Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the impact bar to the bracket bolts.

    Tighten

    Tighten the bolts to 58 N.m (43 lb ft).

  2. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .
  3. Install the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.

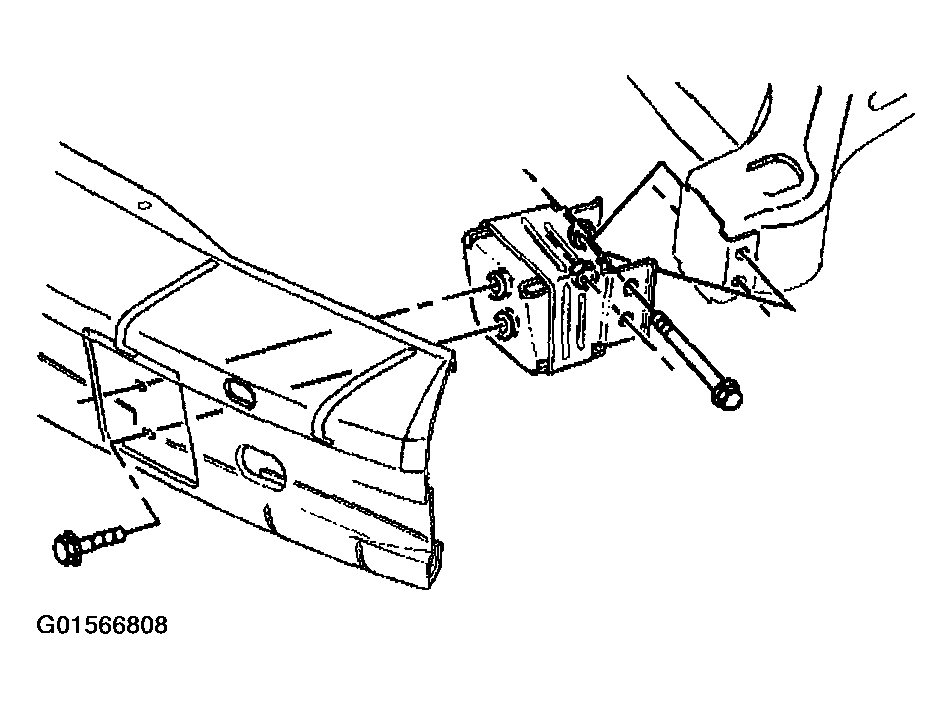

    Fig 1: Installing Impact Bar To The Vehicle
    G01566808Courtesy of GENERAL MOTORS CORP.
