Removal Procedure

  1. Remove the top fascia retainers.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Disengage the retainers from the underside of the fascia.
  4. Remove the fascia from the impact bar.

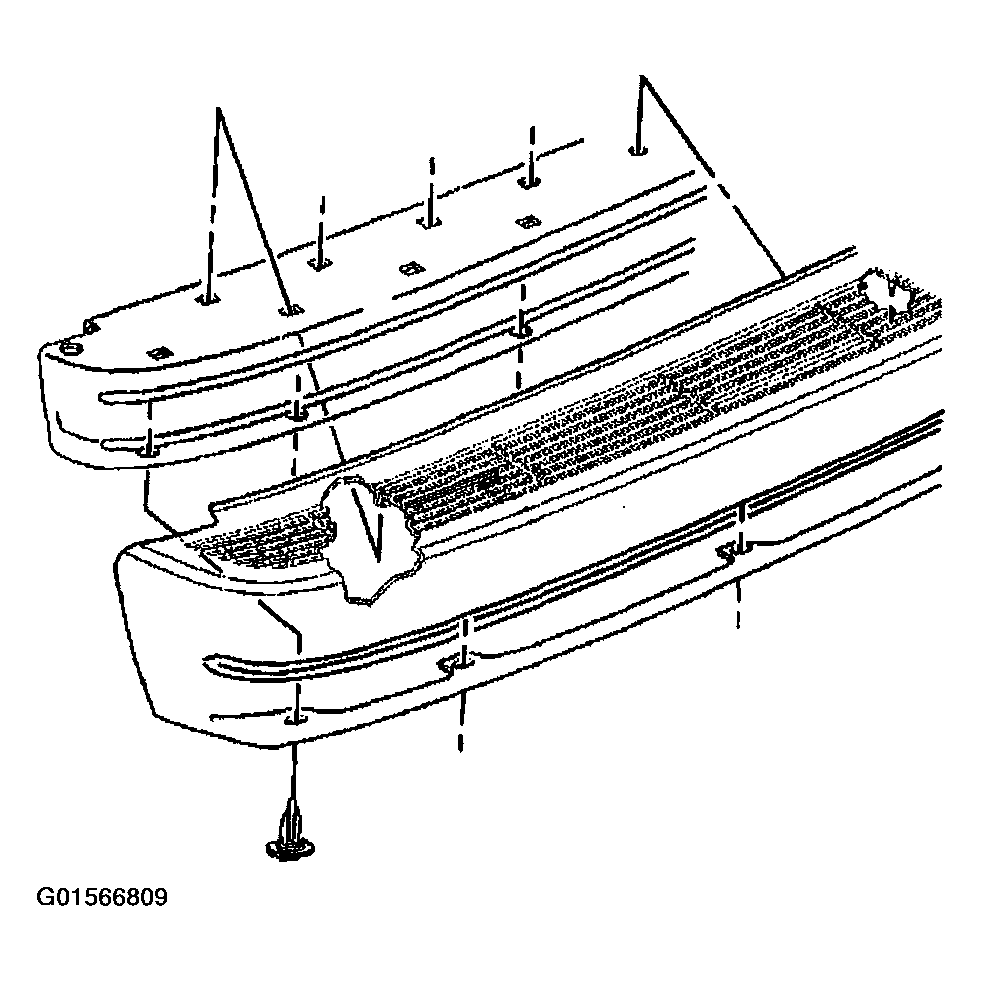

    Fig 1: Removing Fascia From The Impact Bar (Rear)
    G01566809Courtesy of GENERAL MOTORS CORP.
