Installation Procedure

  1. Align the locator pin of the fascia to the hole in the impact bar.
  2. Press the retainers into the underside of the fascia.
  3. Lower the vehicle.
  4. Install the top fascia retainers.

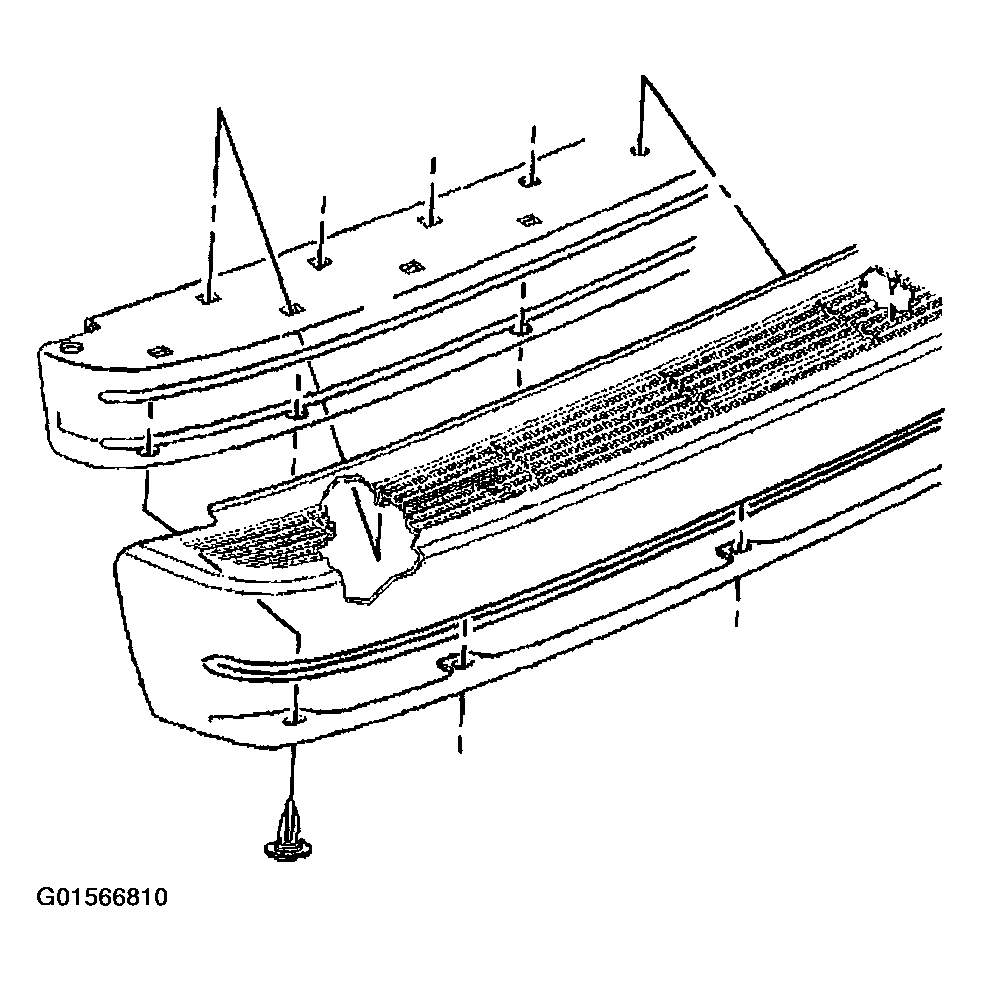

    Fig 1: Installing Fascia To Impact Bar (Rear)
    G01566810Courtesy of GENERAL MOTORS CORP.
