Removal Procedure

  1. Remove the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the front bumper fascia to bumper lower brace bolts.

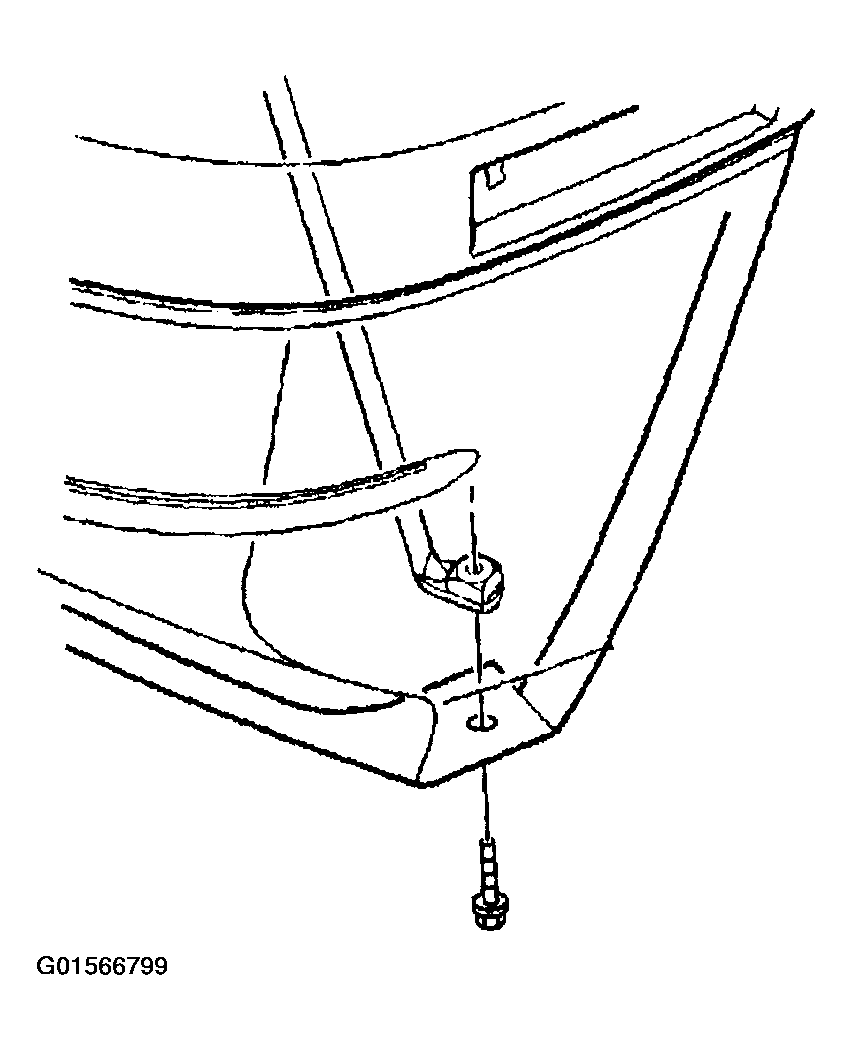

    Fig 1: Removing Front Bumper Fascia To Bumper Lower Brace Bolts
    G01566799Courtesy of GENERAL MOTORS CORP.
  4. Remove the front bumper fascia to fender bolts.

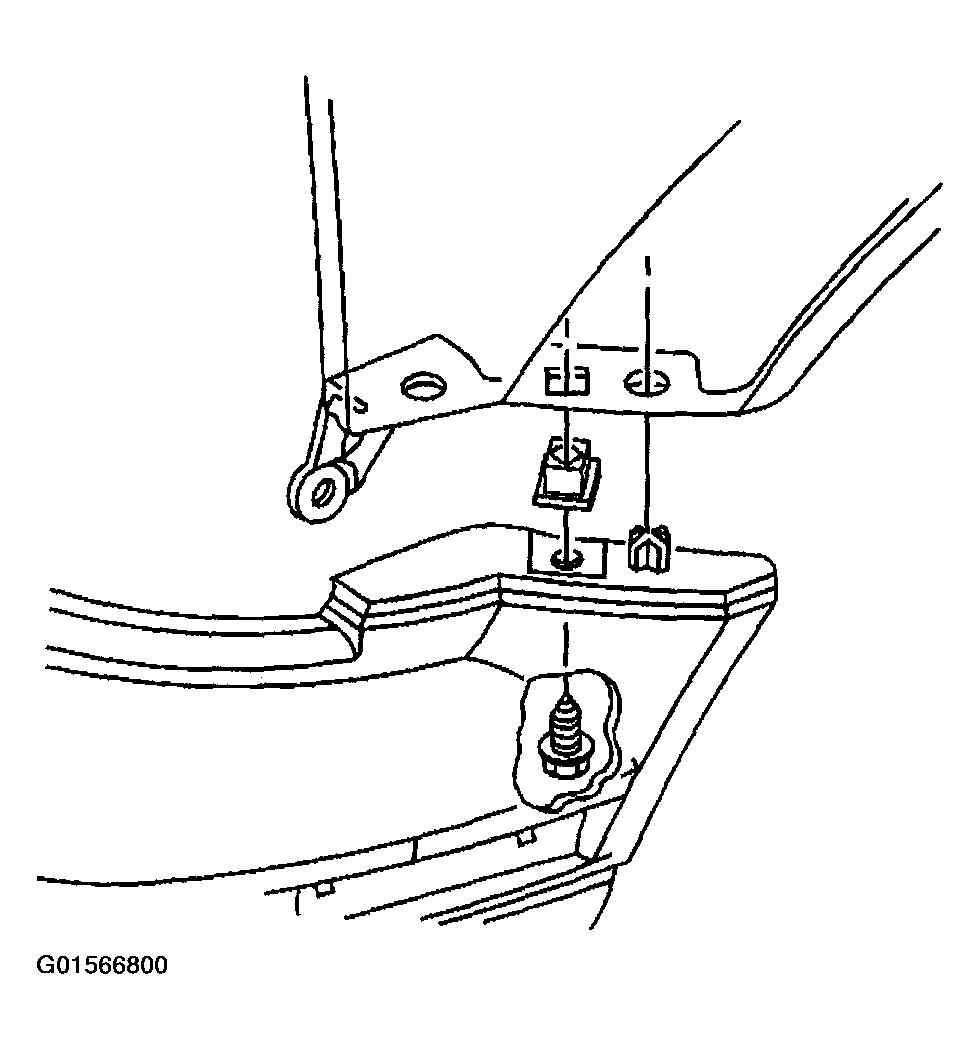

    Fig 2: Removing Front Bumper Fascia To Fender Bolts
    G01566800Courtesy of GENERAL MOTORS CORP.
  5. Remove the front bumper fascia to impact bar push-in retainers.
    Fig 3: Identifying Front Bumper Fascia To Impact Bar Push-In Retainers
    G01566801Courtesy of GENERAL MOTORS CORP.
  6. Remove the front bumper fascia from the impact bar.

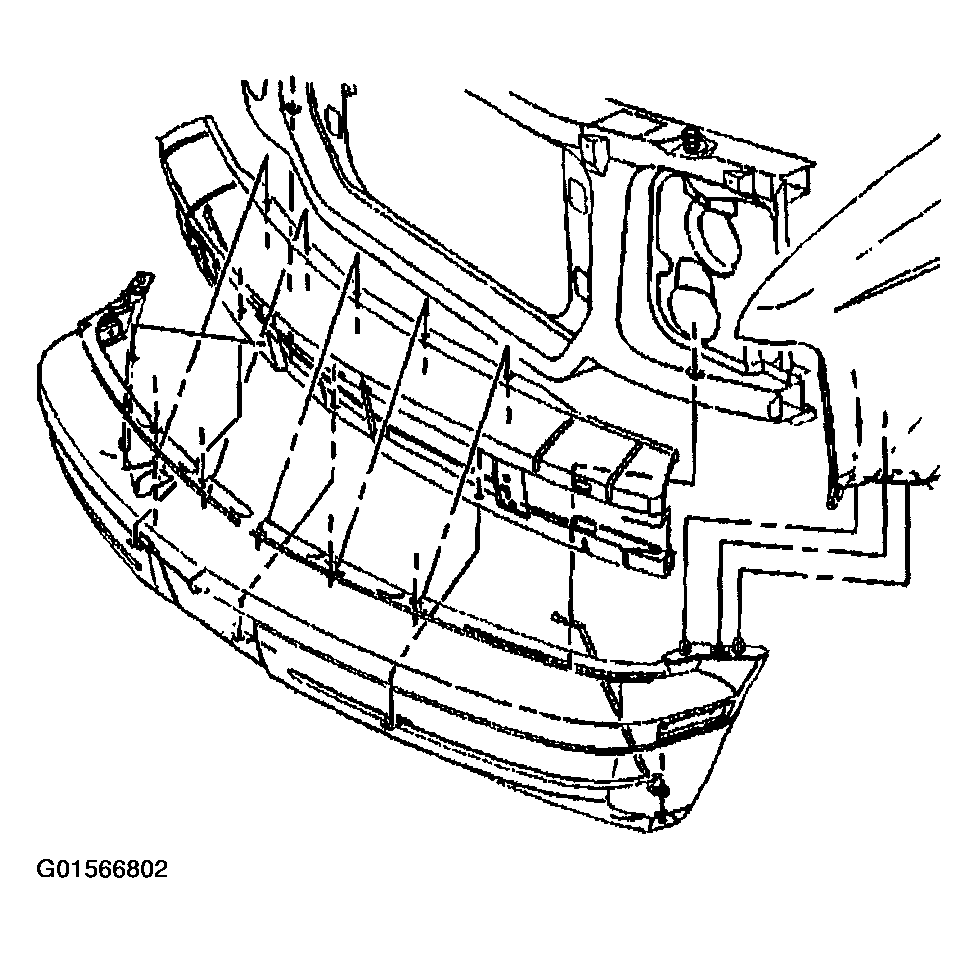

    Fig 4: Removing Front Bumper Fascia From The Impact Bar
    G01566802Courtesy of GENERAL MOTORS CORP.
