Installation Procedure

  1. Install the front bumper fascia to the impact bar.

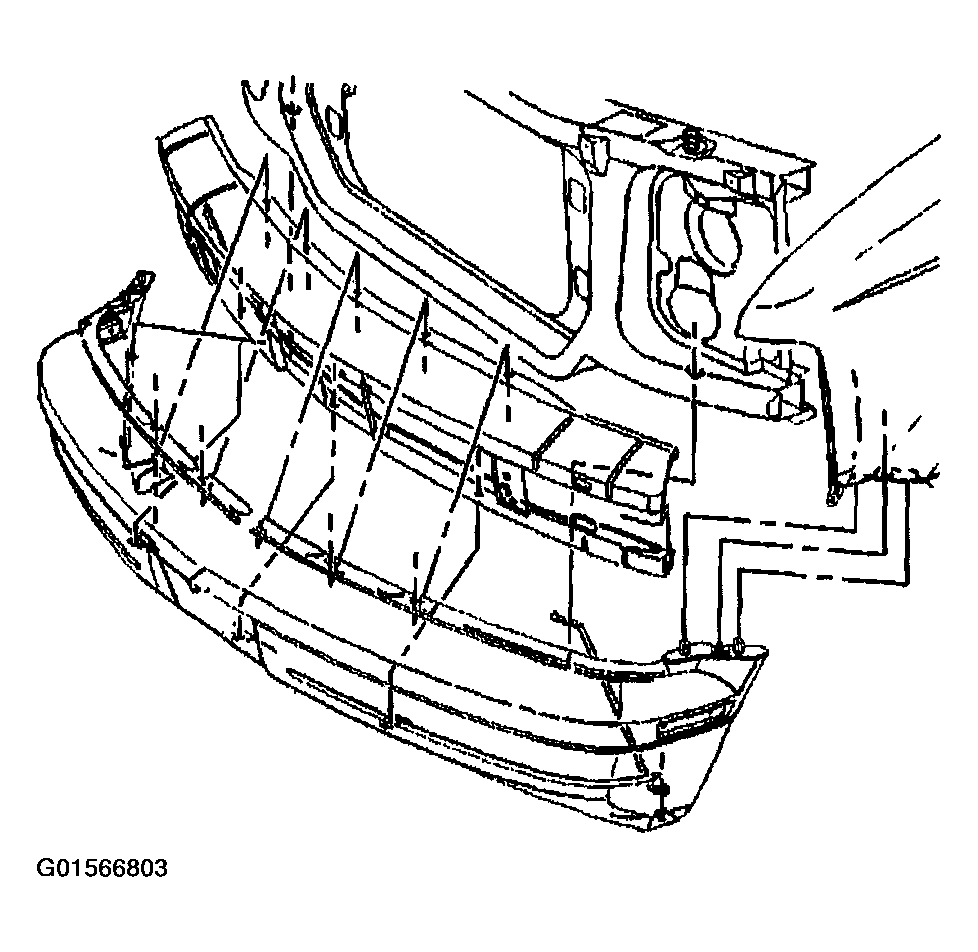

    Fig 1: Installing Front Bumper Fascia To The Impact Bar
    G01566803Courtesy of GENERAL MOTORS CORP.
  2. Install the front bumper fascia to impact bar push-in retainers.
    Fig 2: Identifying Front Bumper Fascia To Impact Bar Push-In Retainers
    G01566804Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the front bumper fascia to the fender bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

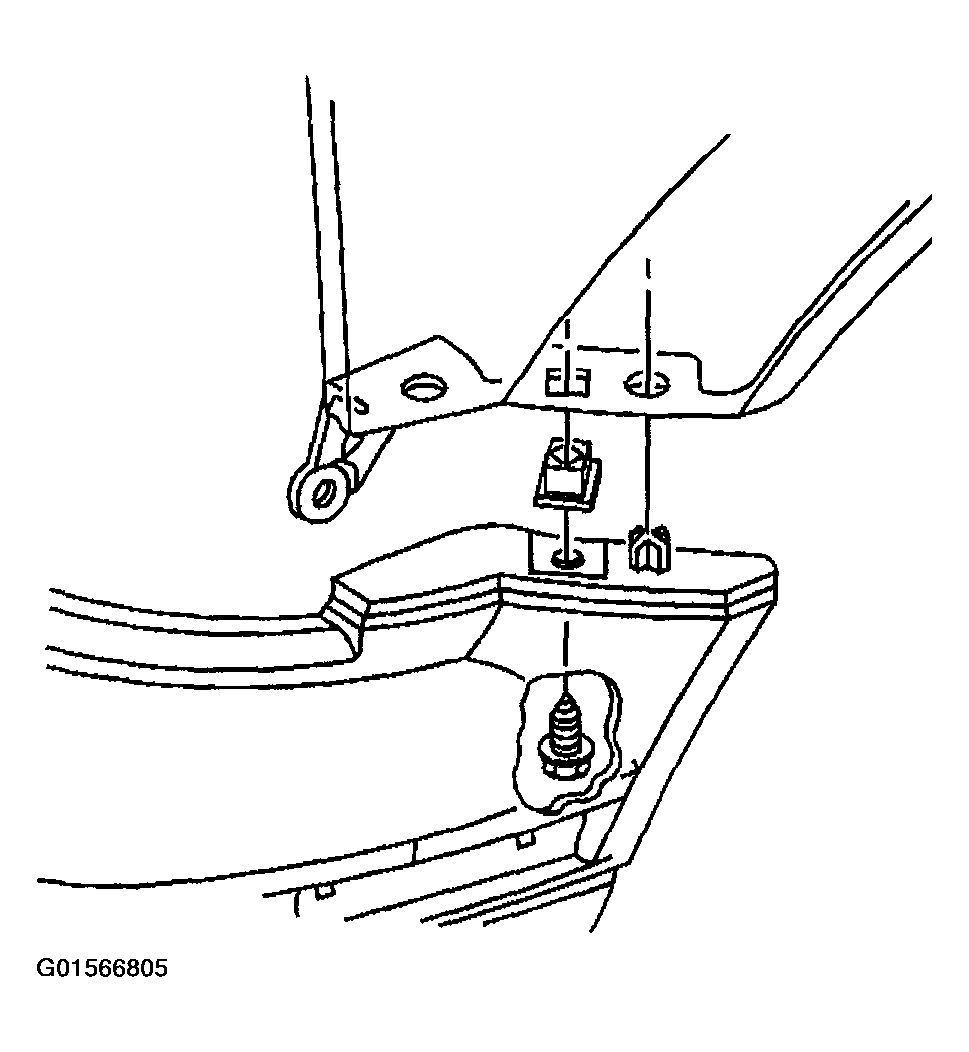

    Fig 3: Installing Front Bumper Fascia To The Fender Bolts
    G01566805Courtesy of GENERAL MOTORS CORP.
  4. Install the front bumper fascia to the bumper lower brace bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  5. Install the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
  6. Lower the vehicle.

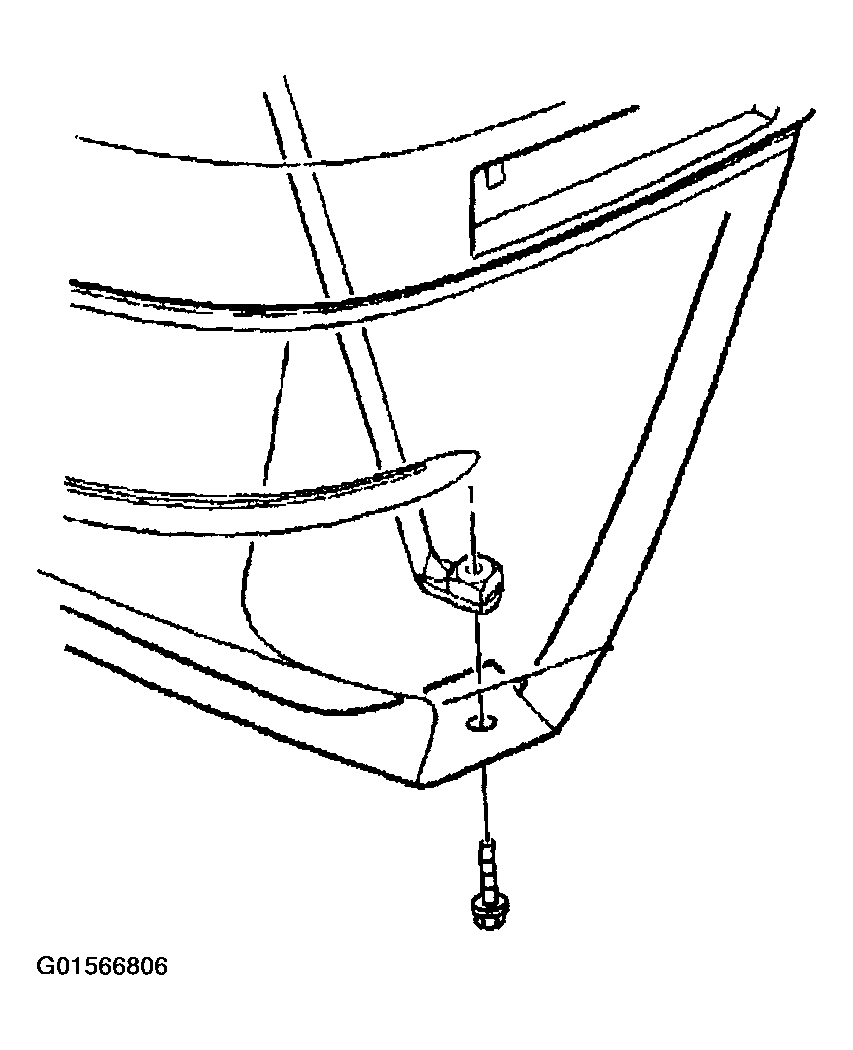

    Fig 4: Installing Front Bumper Fascia To The Bumper Lower Brace Bolts
    G01566806Courtesy of GENERAL MOTORS CORP.
