Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the brace to frame bolts.
  3. Remove the bracket to frame bolts.
  4. Remove the bumper from the vehicle.
  5. Remove the brace to bumper nuts.
  6. Remove the bracket to bumper bolts and nuts.
  7. Remove the bracket from the bumper.

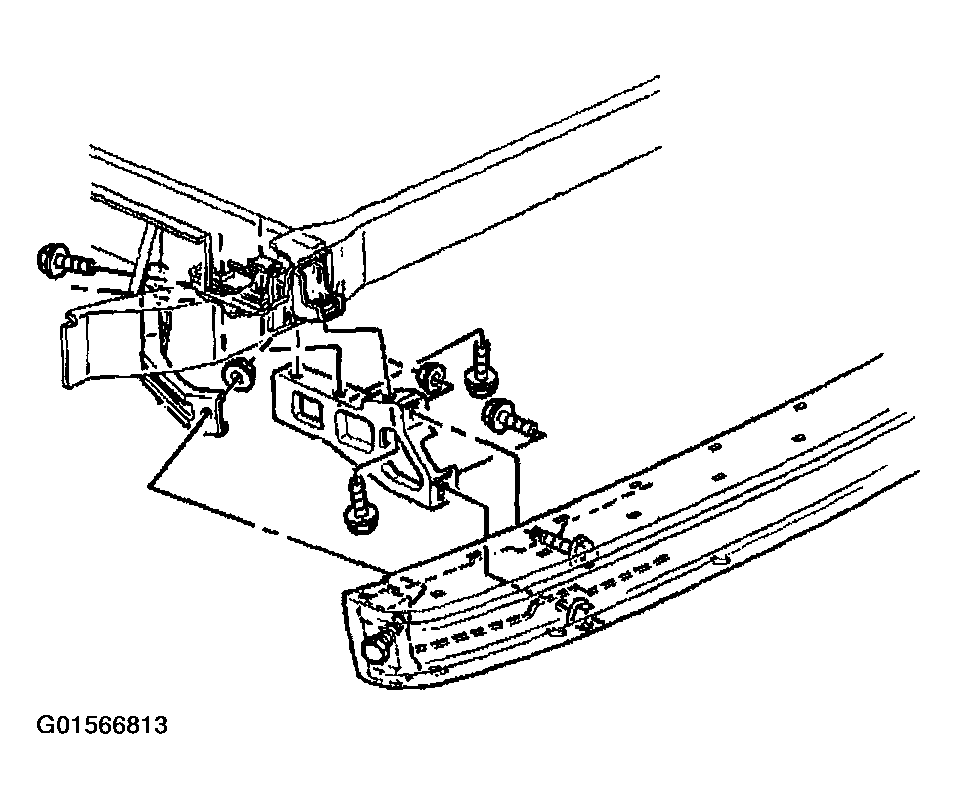

    Fig 1: Removing Rear Bumper
    G01566813Courtesy of GENERAL MOTORS CORP.
