Removal Procedure

  1. Remove the swing-out window latch. Refer to WINDOW REPLACEMENT - SWING OUT in Stationary Windows.
  2. Remove the screws that retain the right molding on the sides and the bottom.

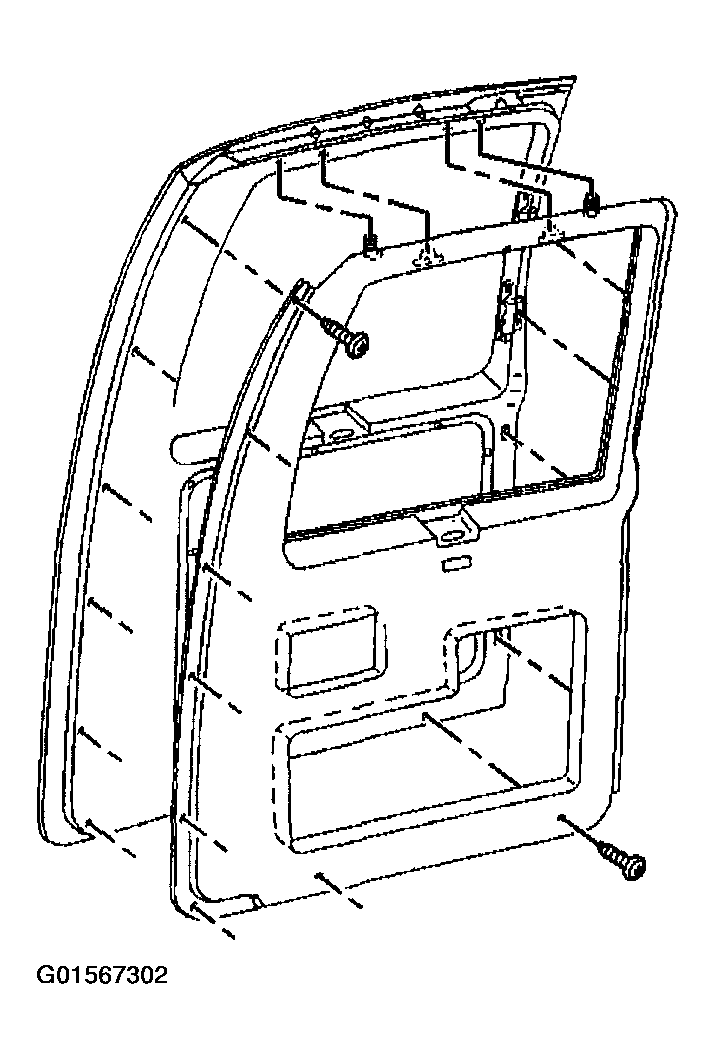

    Fig 1: Removing Screws From Molding On Sides And Bottom
    G01567302Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws that retain the left molding on the sides and the bottom.
  4. Remove the molding from the door in the area of the retainers.

    There are 2 retainers on top, one in the center of the panel, and 6 around the outside edge.

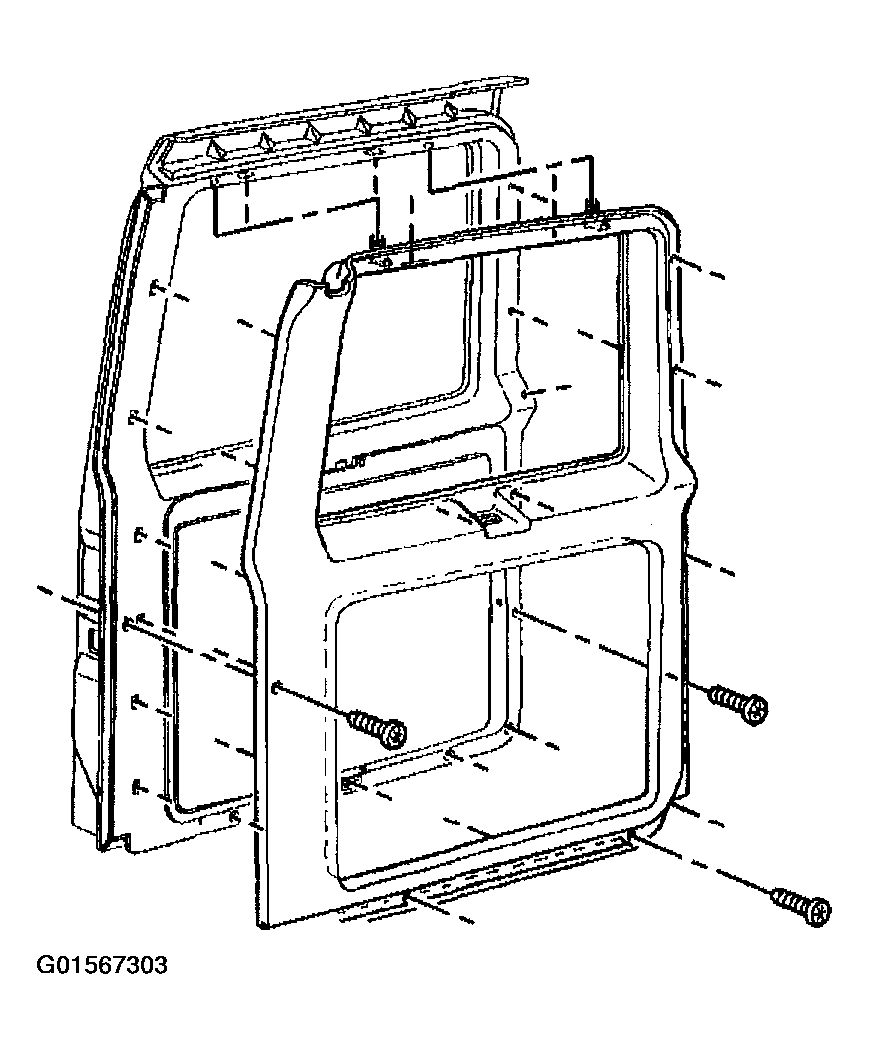

    Fig 2: Removing Screws From Left Door Molding
    G01567303Courtesy of GENERAL MOTORS CORP.
