Removal Procedure

  1. Use the J 38778  in order to remove the retainers.
  2. Use 3M Release Agent in order to break the weatherstrip adhesive bond.
  3. Use the J 38778  in order to remove the plastic retainers.
  4. Remove the left door weatherstrip.

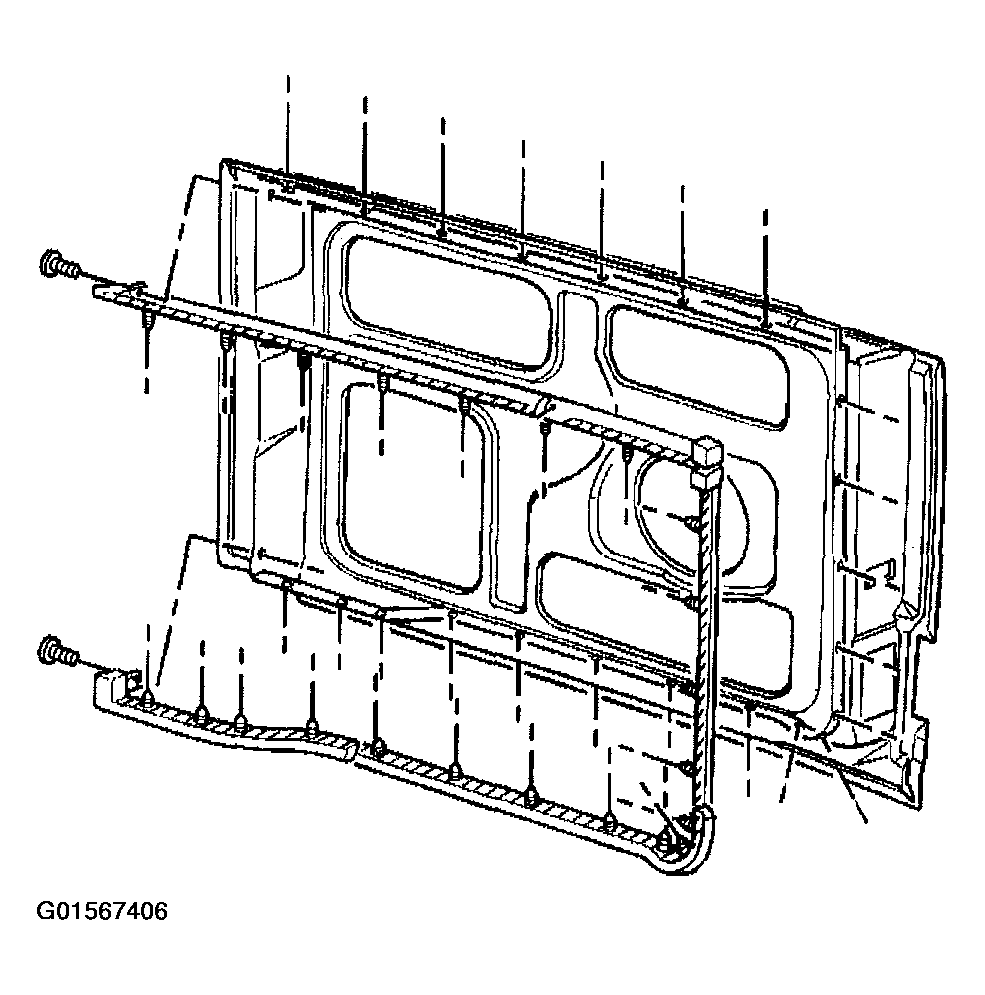

    Fig 1: Removing Rear Left Door Weatherstrip (E54)
    G01567406Courtesy of GENERAL MOTORS CORP.
  5. Remove the right door weatherstrip.

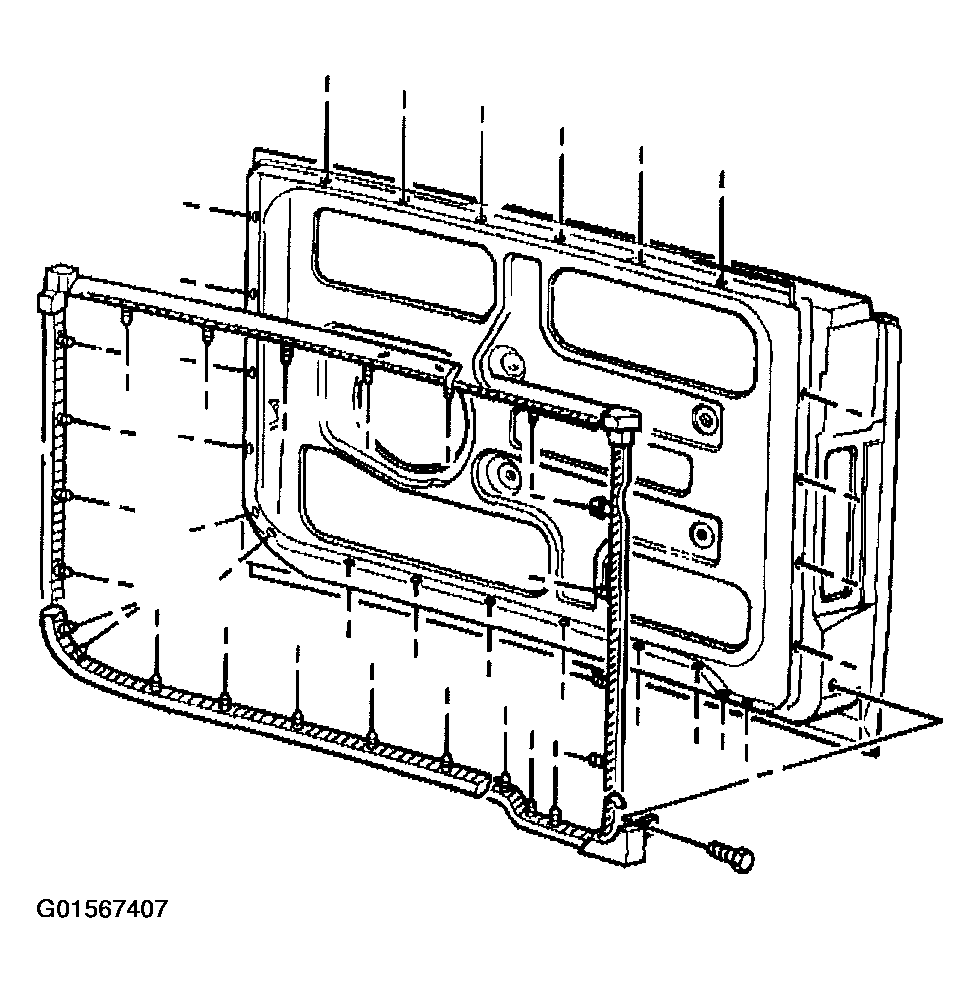

    Fig 2: Removing Rear Right Door Weatherstrip (E54)
    G01567407Courtesy of GENERAL MOTORS CORP.
