Installation Procedure

Use 3M Weatherstrip adhesive or an equivalent in order to install the right door weatherstrip.

Fig 1: Installing Rear Right Door Weatherstrip (E54)
Courtesy of GENERAL MOTORS CORP.
Use 3M Weatherstrip adhesive or an equivalent in order to install the left door weatherstrip.
Install the plastic retainers into place. Push the retainers into place until the retainers are fully seated.

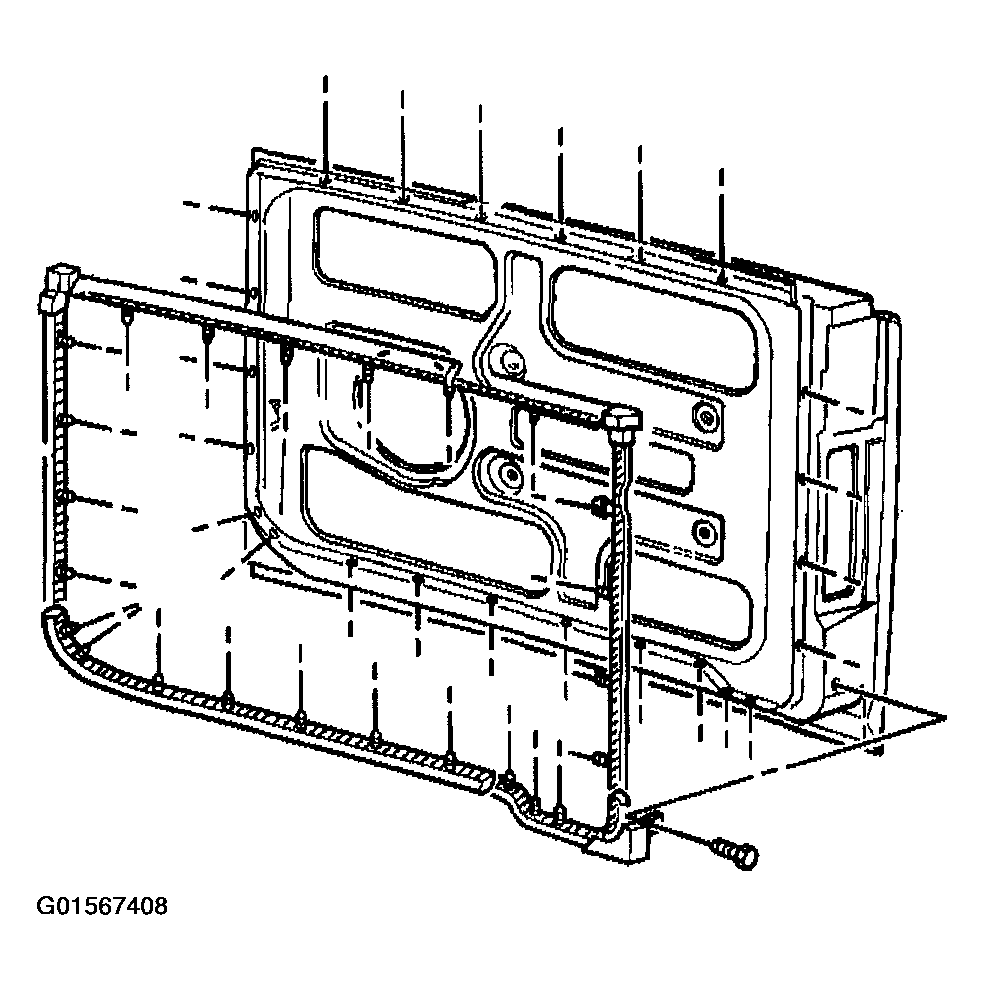

Fig 2: Installing Rear Left Door Weatherstrip (E54)
Courtesy of GENERAL MOTORS CORP.
