Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

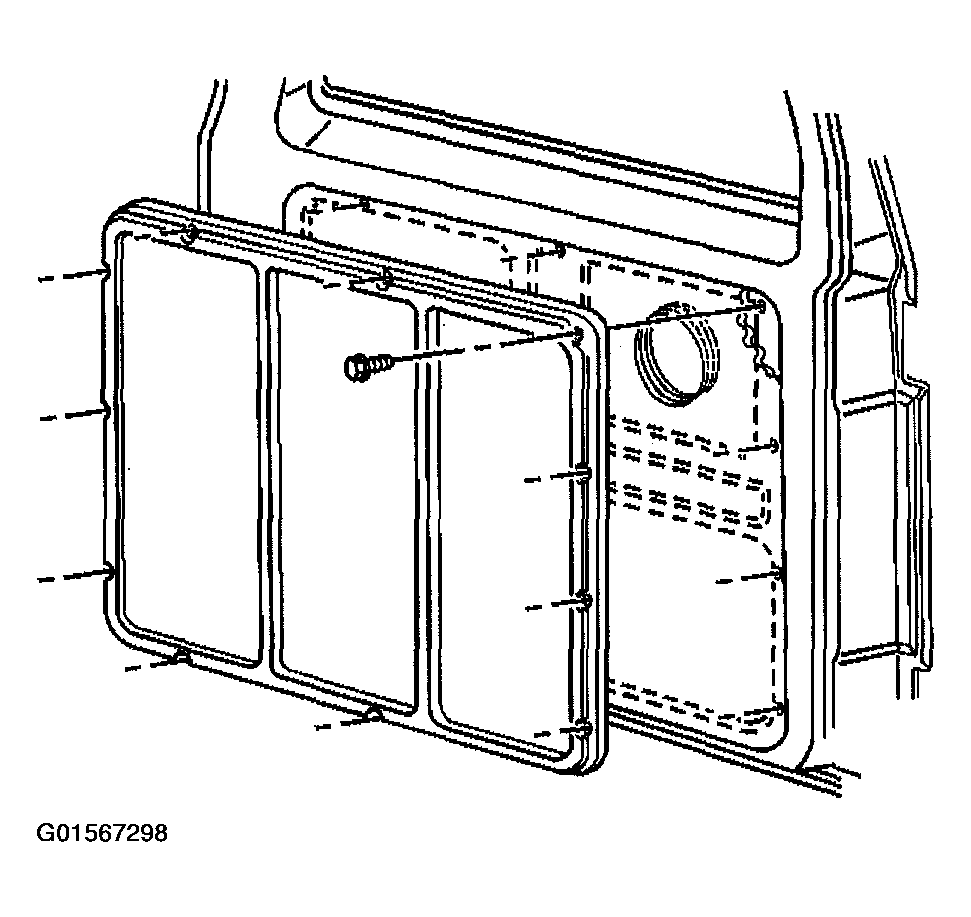

    Fig 1: Removing Trim Panel
    G01567298Courtesy of GENERAL MOTORS CORP.
  2. Peel the water deflector from the door and remove from the door.

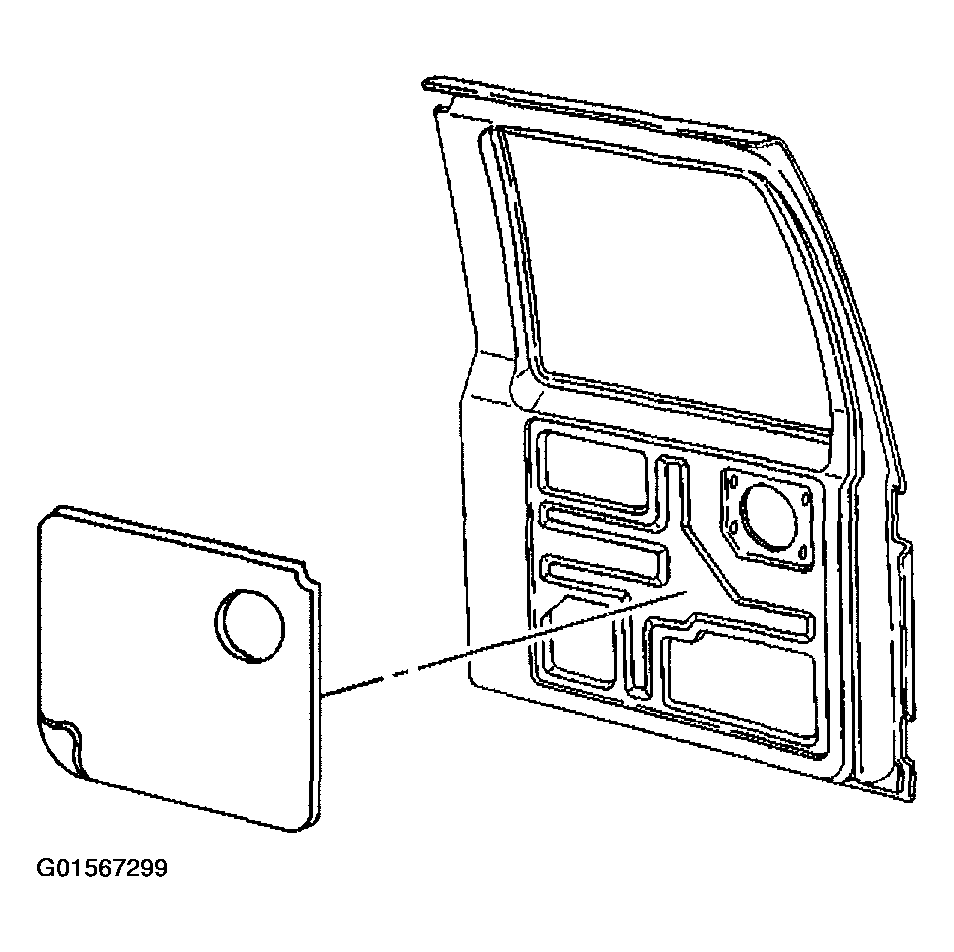

    Fig 2: Removing Water Deflector
    G01567299Courtesy of GENERAL MOTORS CORP.
