Installation Procedure

  1. Install the water deflector.

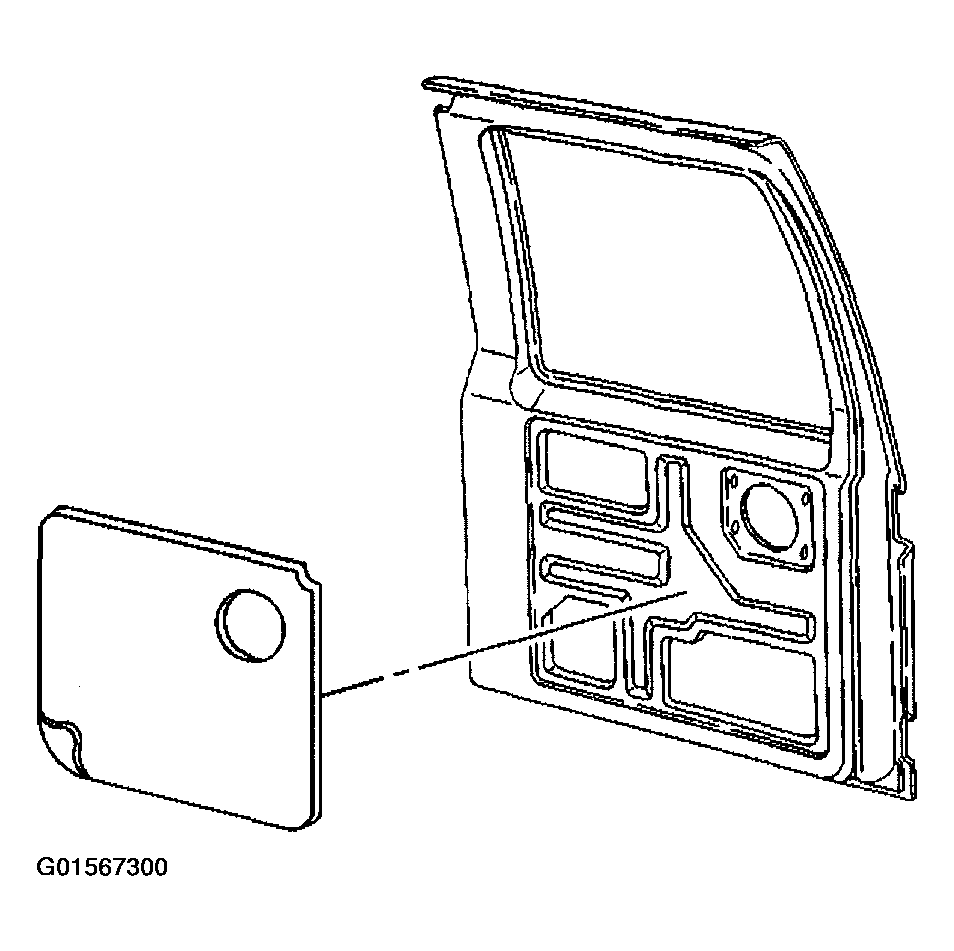

    Fig 1: Installing Water Deflector
    G01567300Courtesy of GENERAL MOTORS CORP.
  2. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

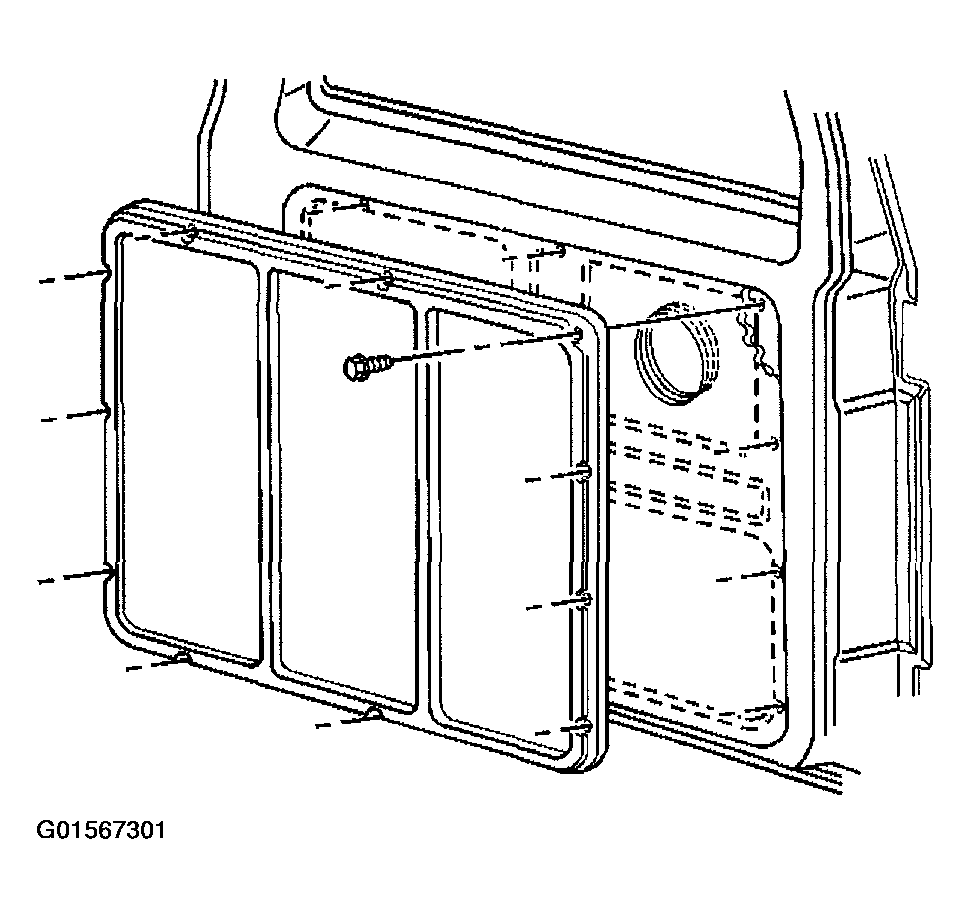

    Fig 2: Installing Trim Panel
    G01567301Courtesy of GENERAL MOTORS CORP.
