Installation Procedure

  1. Install the trim panel to the door.

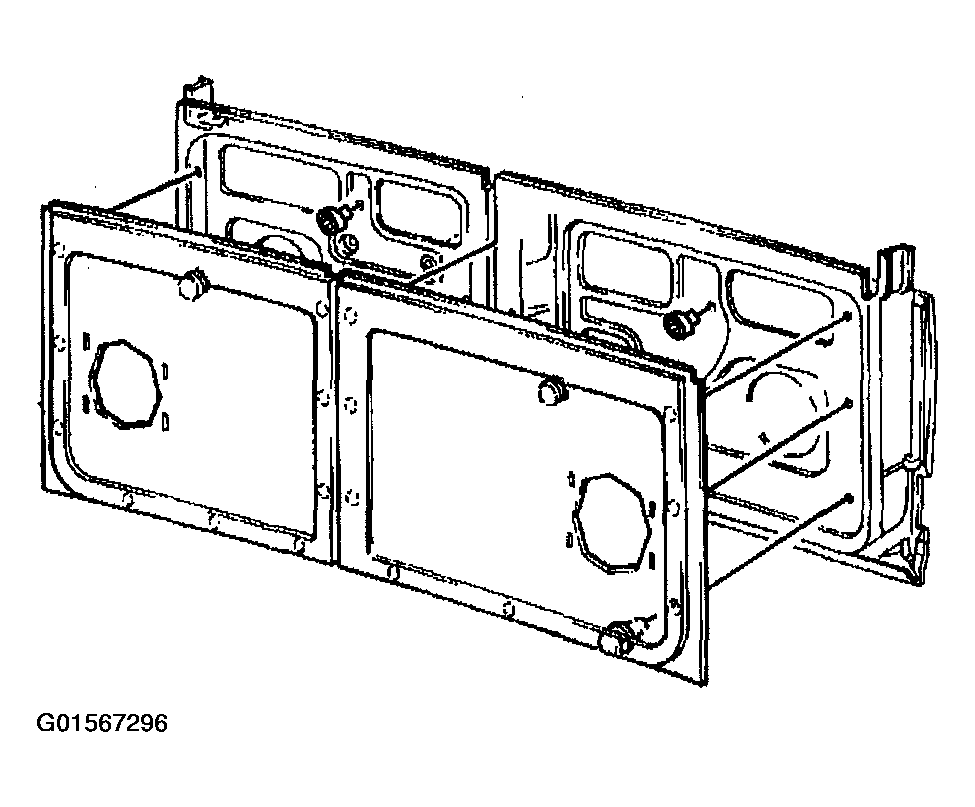

    Fig 1: Installing Trim Panel To Door
    G01567296Courtesy of GENERAL MOTORS CORP.
  2. Install the lace.

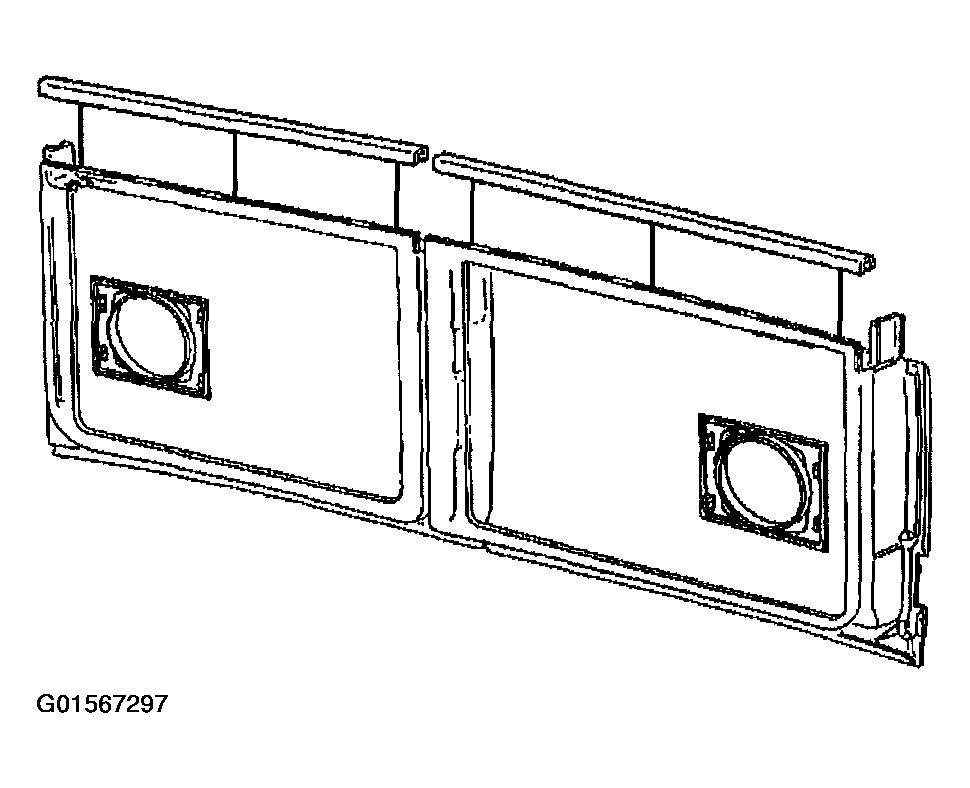

    Fig 2: Installing Lace
    G01567297Courtesy of GENERAL MOTORS CORP.
