Removal Procedure

  1. Open and support the liftgate.
  2. Remove the strut. Refer to STRUT REPLACEMENT - LIFT GATE .
  3. Remove the strut ball from the lid or body by turning counterclockwise.

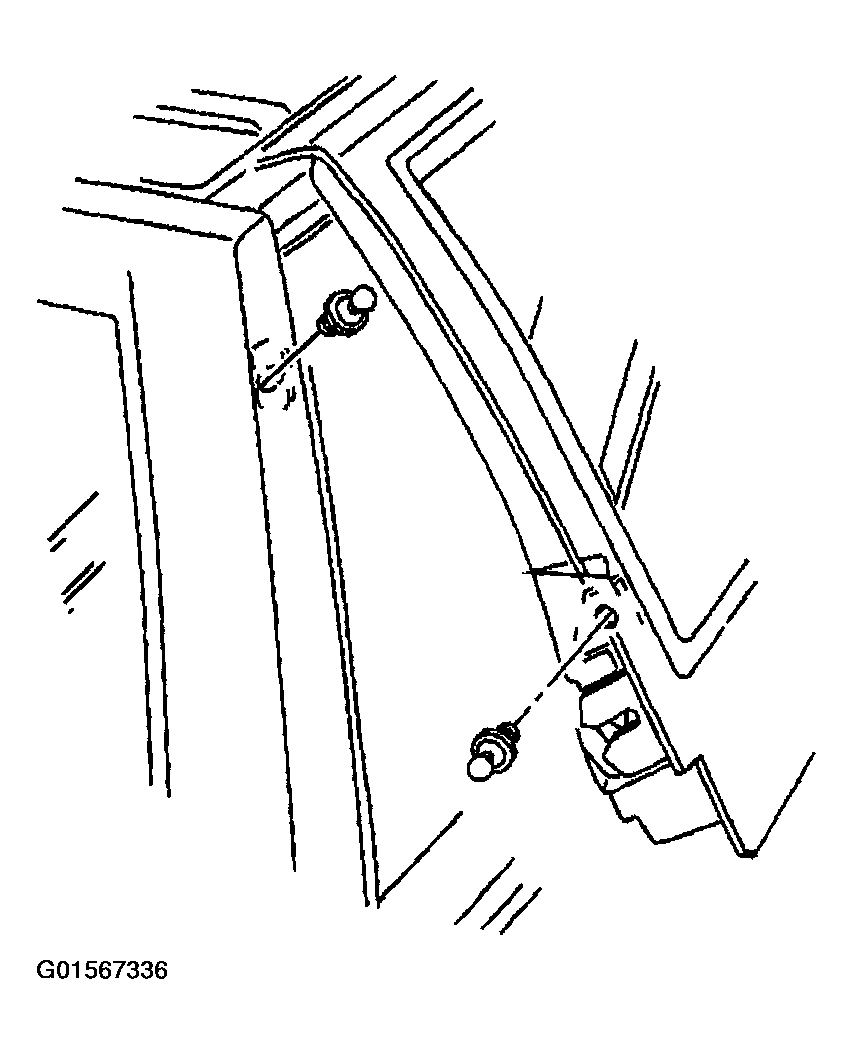

    Fig 1: Removing Lift Gate Strut Ball Stud
    G01567336Courtesy of GENERAL MOTORS CORP.
