Removal Procedure

  1. Remove the bolts that retain the striker.
  2. Remove the striker from the vehicle.

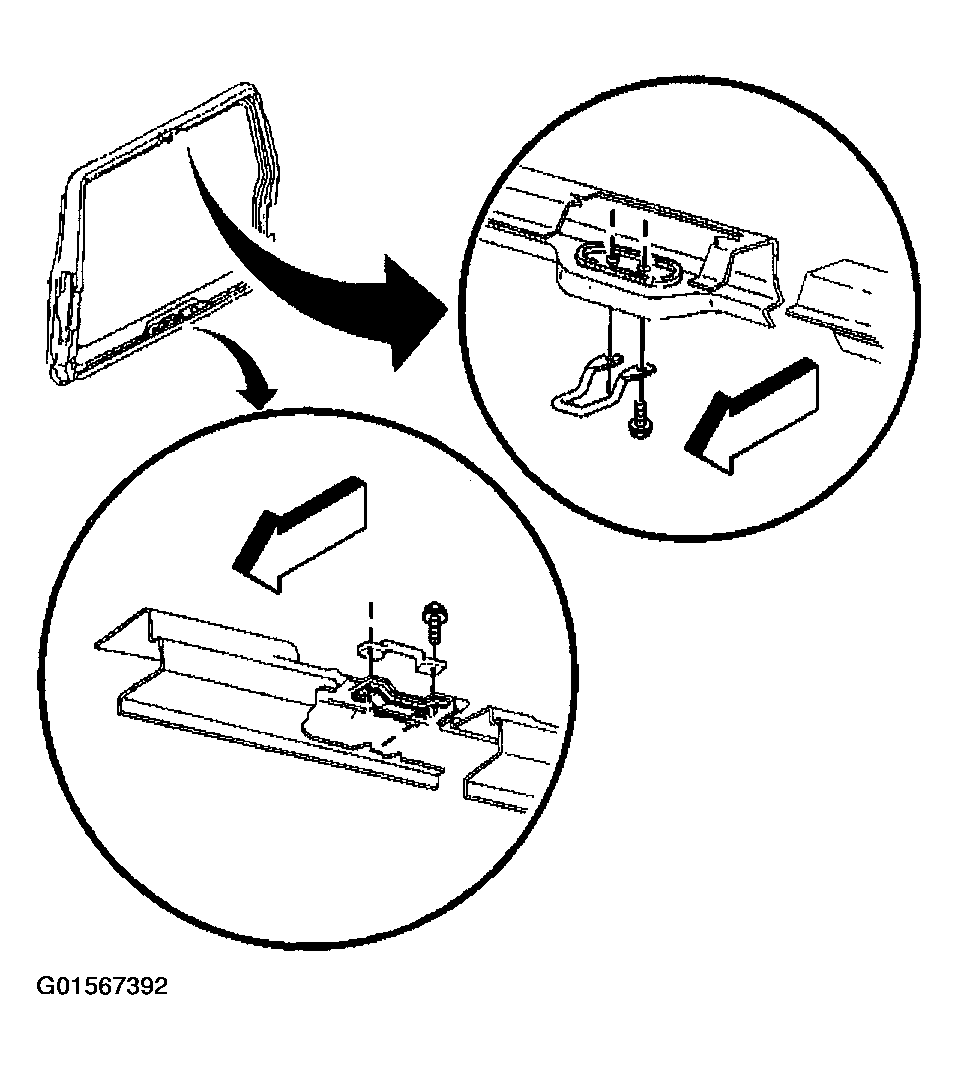

    Fig 1: Removing Upper And Lower Lock Striker
    G01567392Courtesy of GENERAL MOTORS CORP.
