Removal Procedure

  1. Remove the screws (1).
  2. Remove the striker assembly (2).

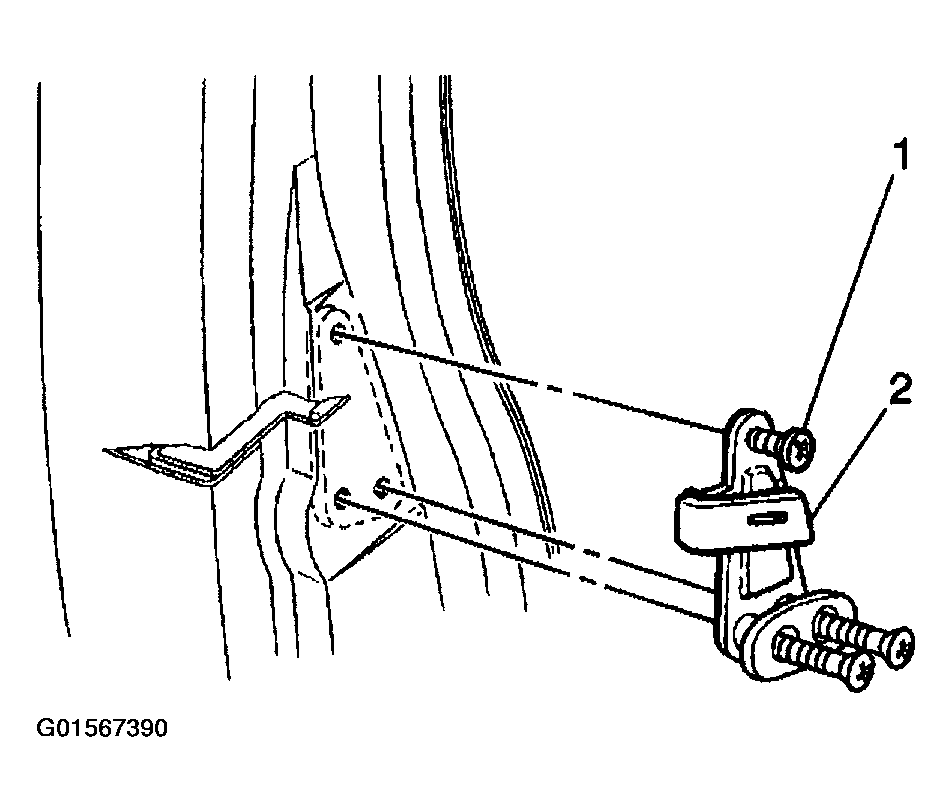

    Fig 1: Removing Lift Gate Lock Striker
    G01567390Courtesy of GENERAL MOTORS CORP.
