Installation Procedure

  1. Install the clips to the remote lock.
  2. Install the remote lock.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the remote lock nuts.

    Tighten

    Tighten the remote lock nuts to 7 N.m (62 lb in).

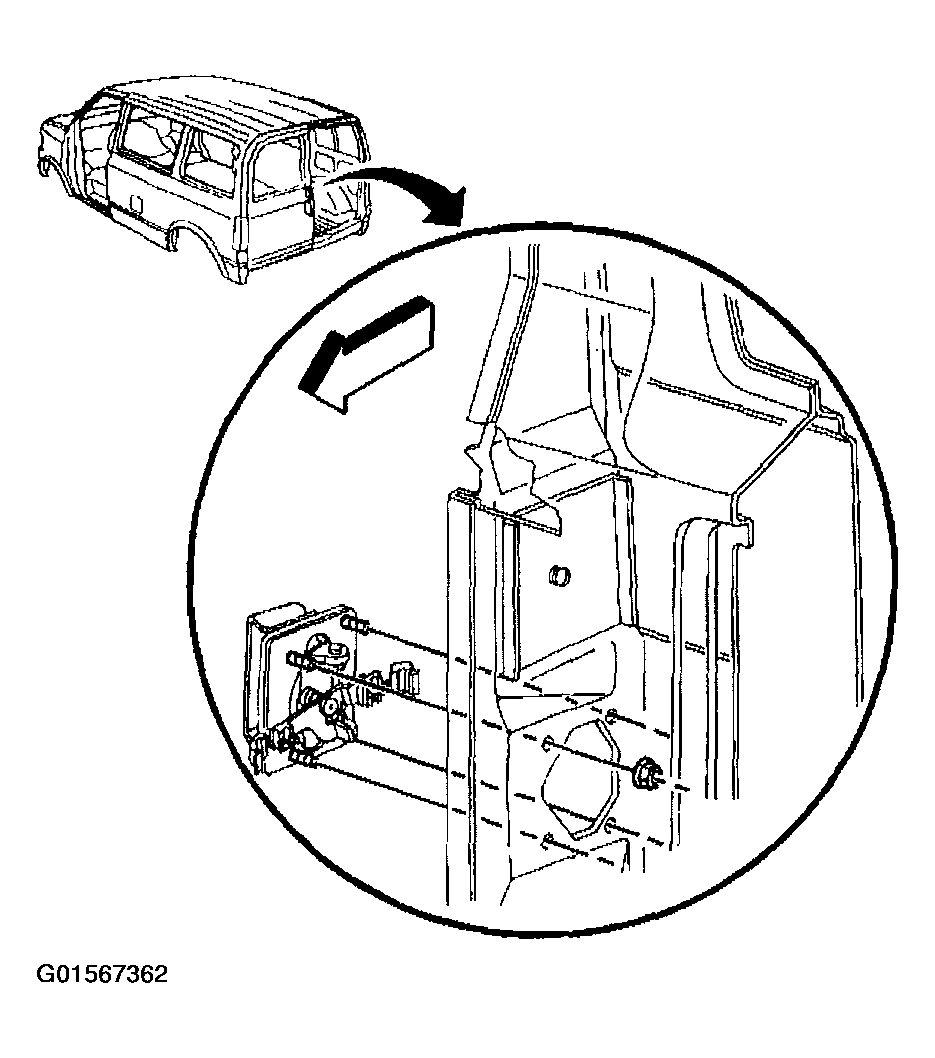

    Fig 1: Installing Remote Lock - Rear Door
    G01567362Courtesy of GENERAL MOTORS CORP.
  4. Install the control rods through the clips to the remote lock.
  5. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

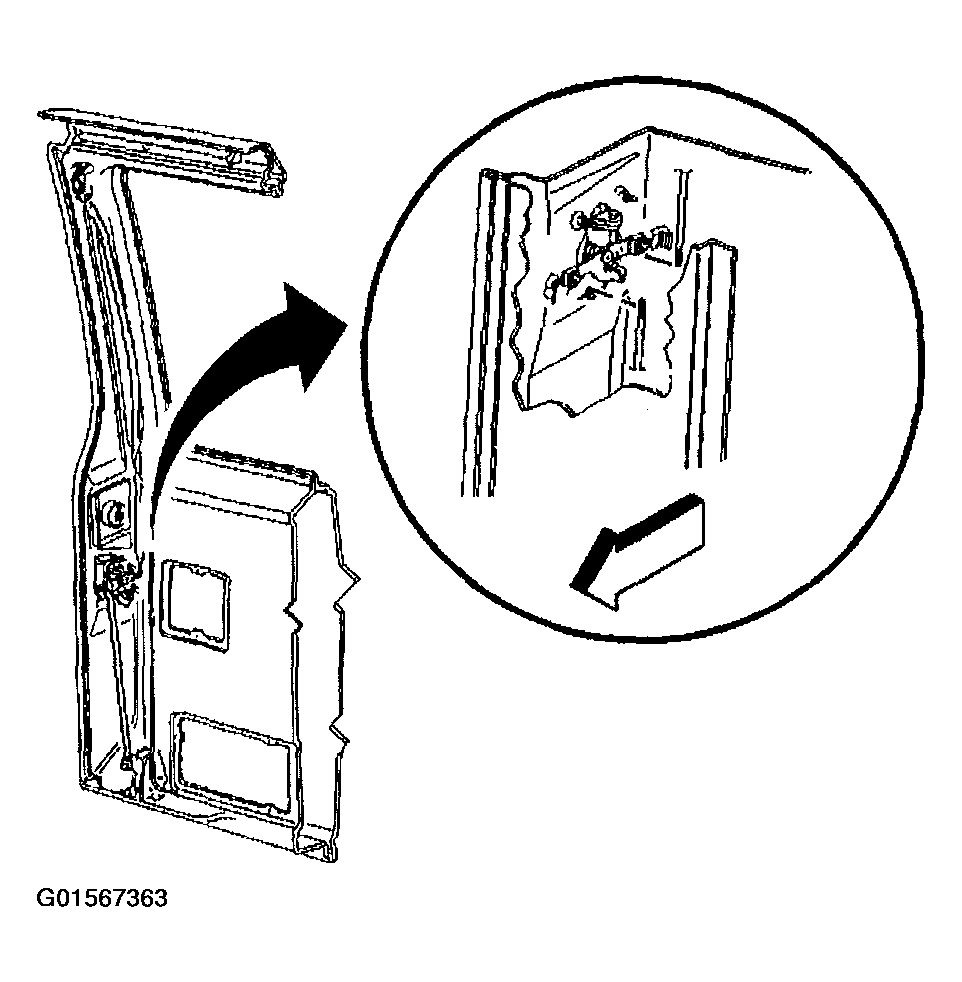

    Fig 2: Installing Remote Lock Control Rods
    G01567363Courtesy of GENERAL MOTORS CORP.
