Installation Procedure

  1. Install the lever to the door.
  2. Use M 39010  in order to install the lever to door rivets (1).
  3. Install the control rods to the lever (3).
  4. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  5. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

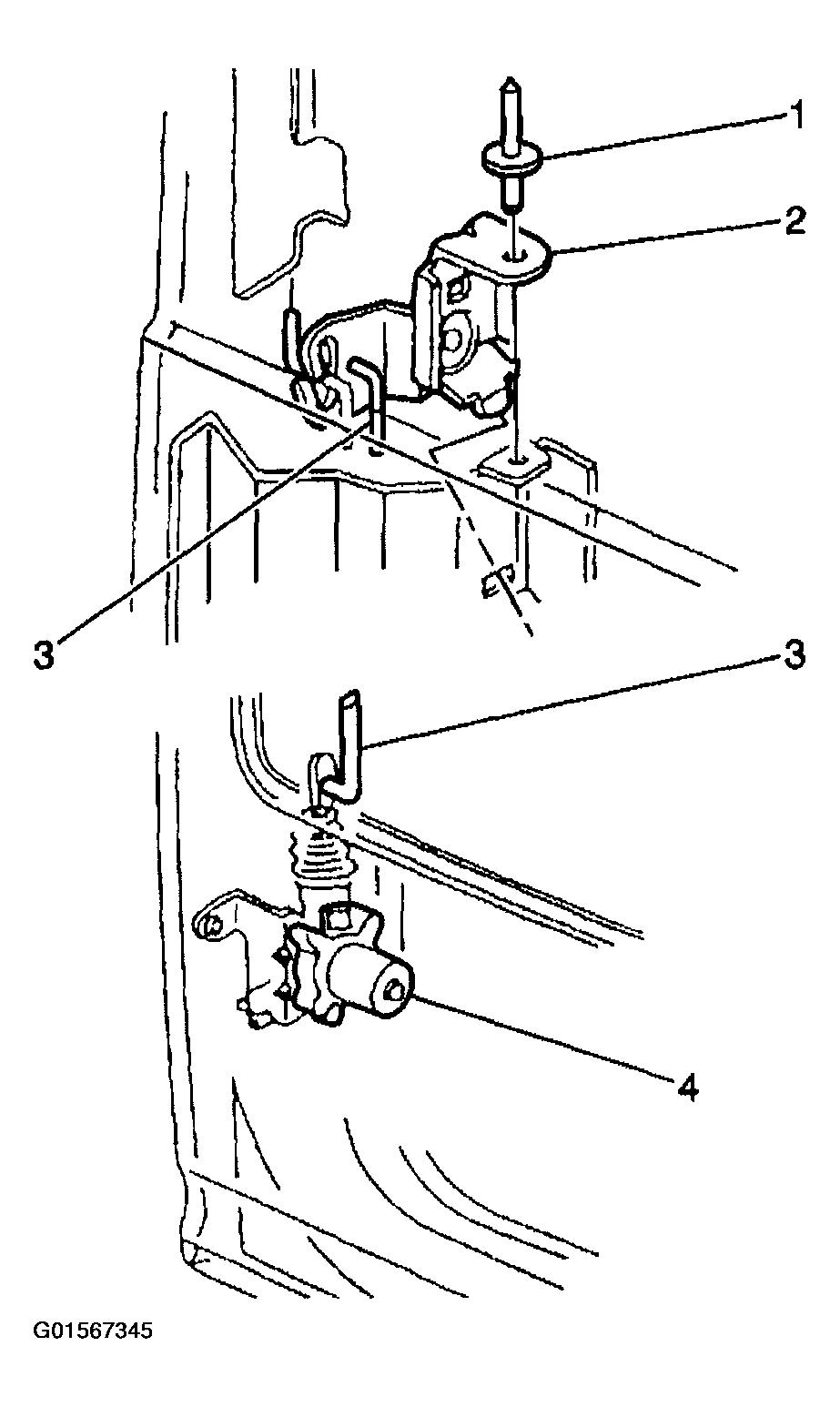

    Fig 1: Installing Rear Door Remote Lock Lever
    G01567345Courtesy of GENERAL MOTORS CORP.
