Removal Procedure

  1. Remove the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE .
  2. Disconnect the electrical connector.
  3. Remove the rear wiper motor from the liftgate.
  4. Remove the lock cylinder retainer.
  5. Remove the lock cylinder from the liftgate.

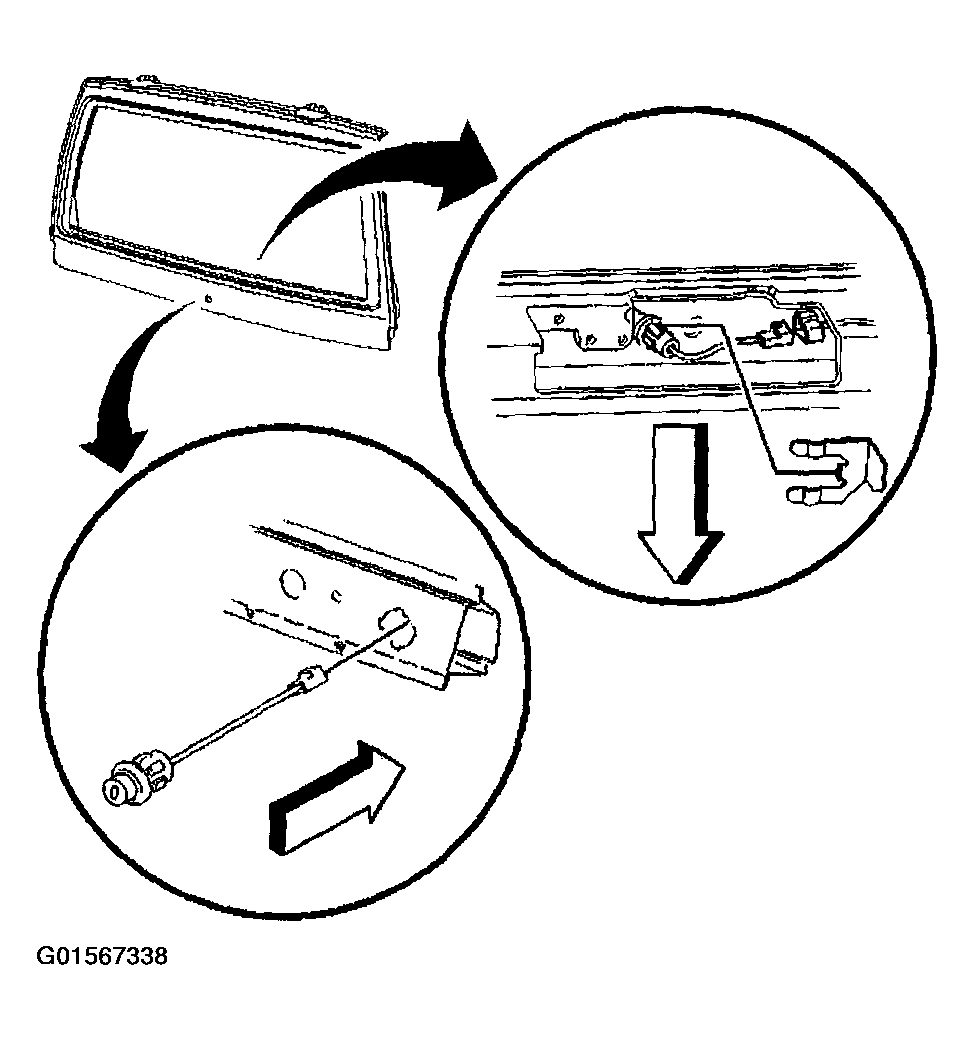

    Fig 1: Removing Lift Gate Lock Cylinder
    G01567338Courtesy of GENERAL MOTORS CORP.
