Installation Procedure

  1. Install the lock cylinder to the liftgate.
  2. Install the lock cylinder retainer.
  3. Install the rear wiper motor to the liftgate.
  4. Connect the electrical connector.
  5. Install the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE .

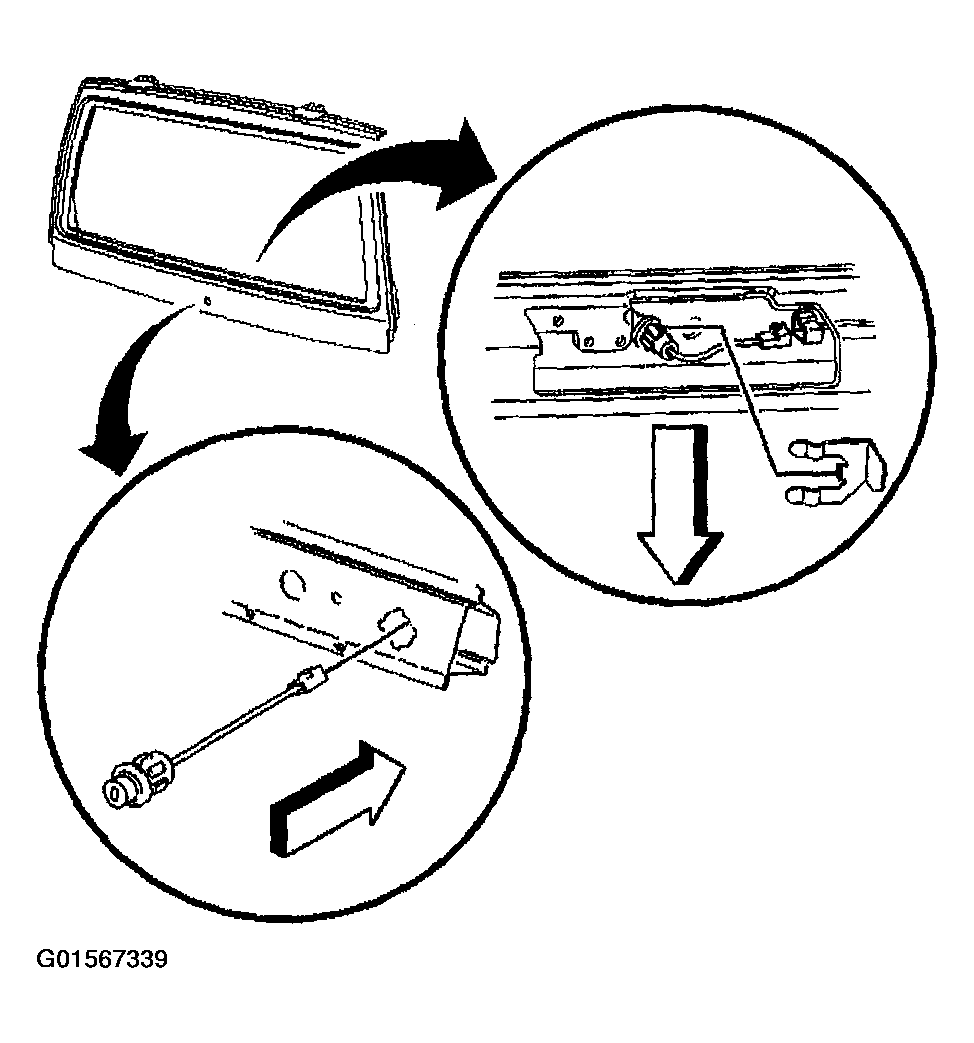

    Fig 1: Installing Lift Gate Lock Cylinder
    G01567339Courtesy of GENERAL MOTORS CORP.
