Installation Procedure

  1. Install the housing (2) to the door.
  2. Install the door handle. Refer to HANDLE REPLACEMENT - REAR DOOR OUTSIDE .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the housing to door bolts (1).

    Tighten

    Tighten the door bolts to 4 N.m (35 lb in).

  4. Install the lamp harness to the housing.
  5. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

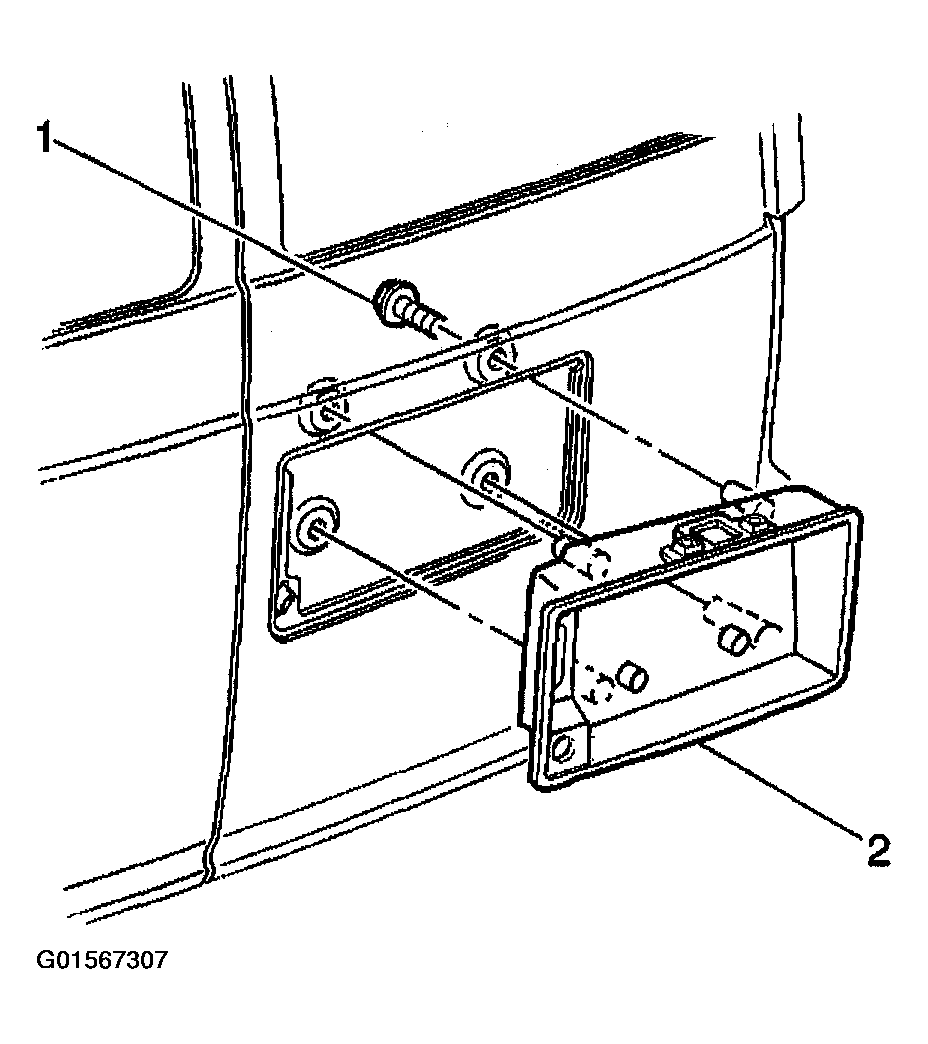

    Fig 1: Installing Housing Bolts
    G01567307Courtesy of GENERAL MOTORS CORP.
