Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Separate the weatherstrip deflector at the perforation. Use a sharp-bladed tool if needed. Refer to WATER DEFLECTOR REPLACEMENT .
  3. Remove the control rod from the lock assembly.

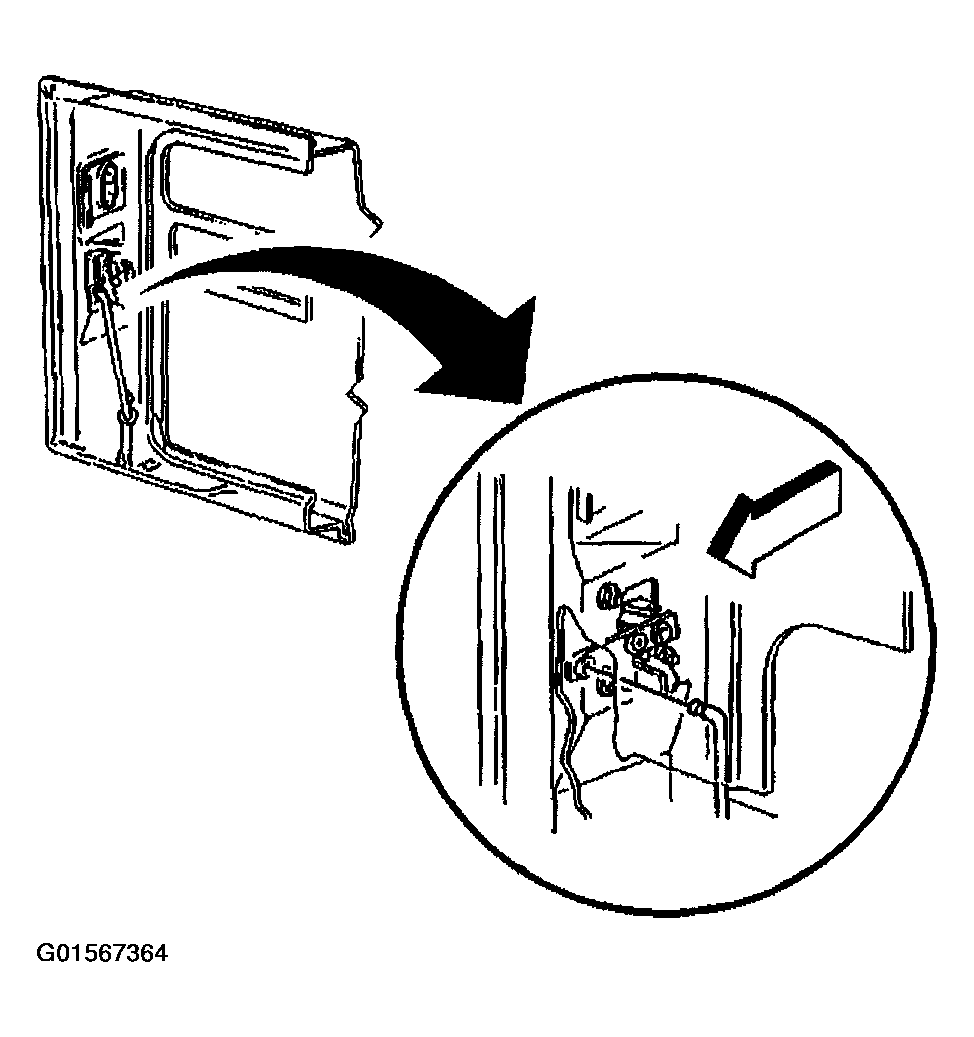

    Fig 1: Removing Lock Assembly Control Rod
    G01567364Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts and the reinforcement.

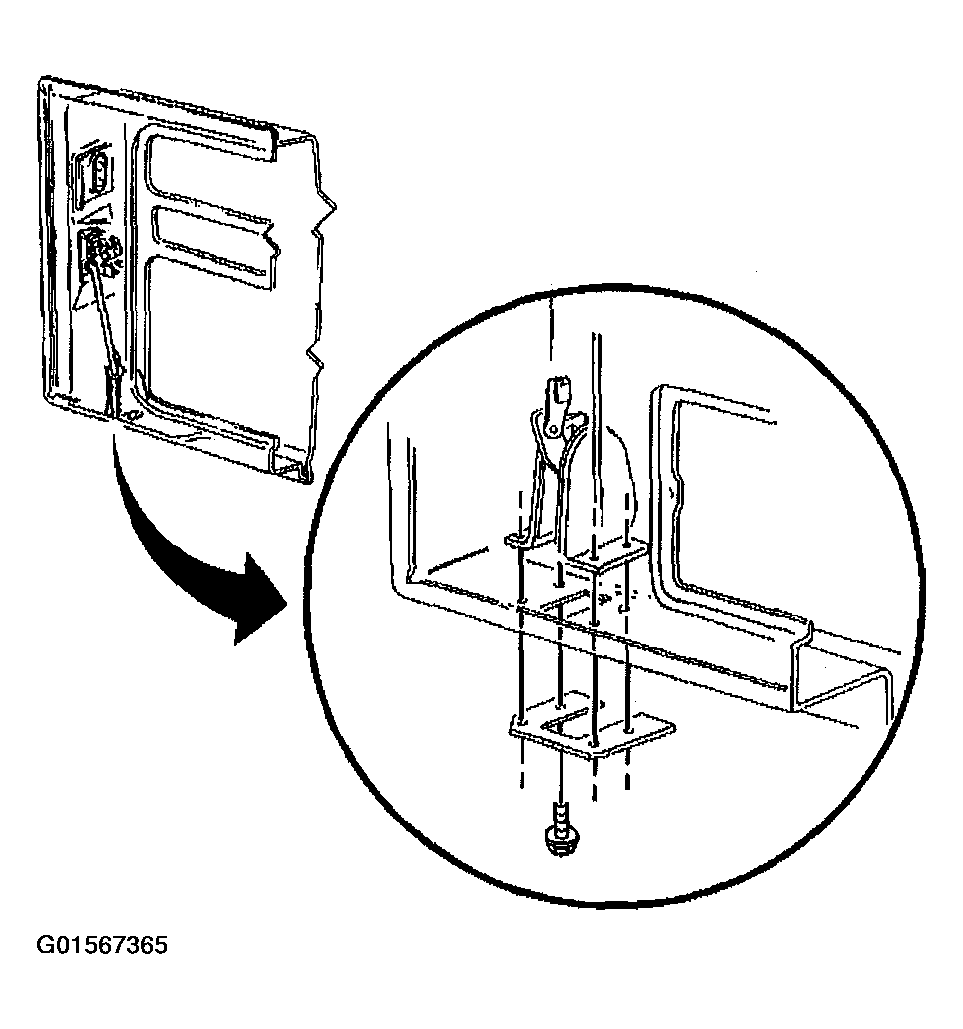

    Fig 2: Removing Bolts And Reinforcement
    G01567365Courtesy of GENERAL MOTORS CORP.
  5. Remove the following components from the door:
    • The latch
    • The rod
    • The retainer
  6. Remove the rod and the retainer from the latch.

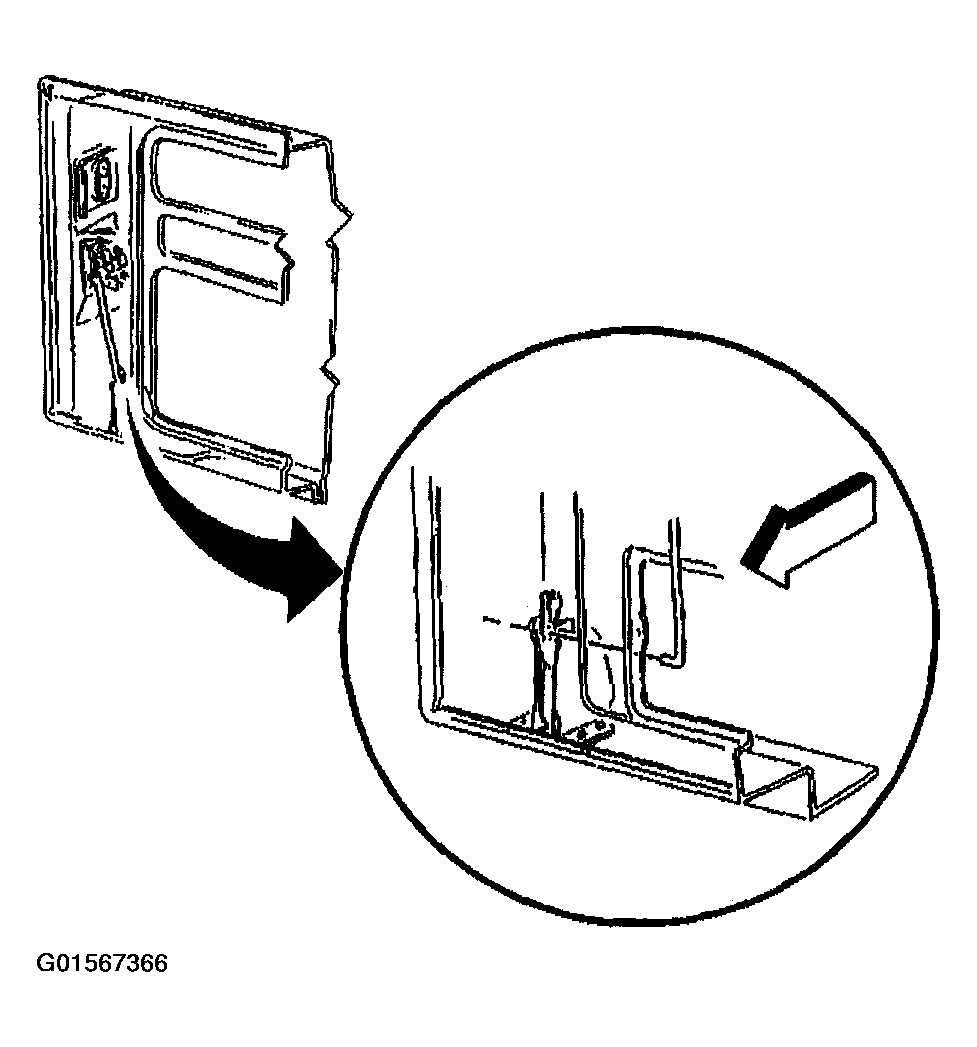

    Fig 3: Removing Latch Rod And Retainer
    G01567366Courtesy of GENERAL MOTORS CORP.
