Installation Procedure

  1. Install the control rod and the retainer to the latch.
  2. Install the retainer as shown in order to prevent squeaks and rattles.

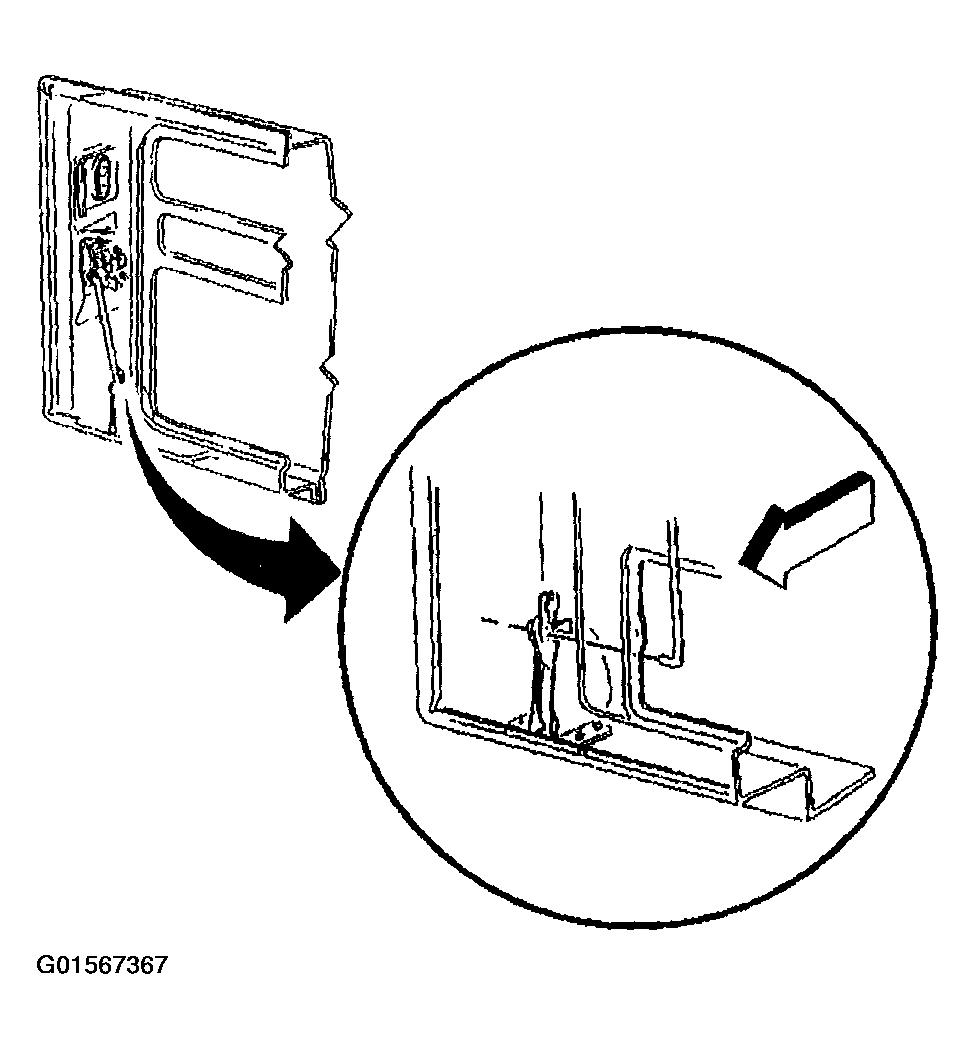

    Fig 1: Installing Latch Control Rod And Retainer
    G01567367Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the following components to the door. Ensure that the arrow on the retainer points toward the front of the vehicle:
    • The latch
    • The retainer
    • The bolts

    Tighten

    Tighten the bolts to the door to 8 N.m (71 lb in).

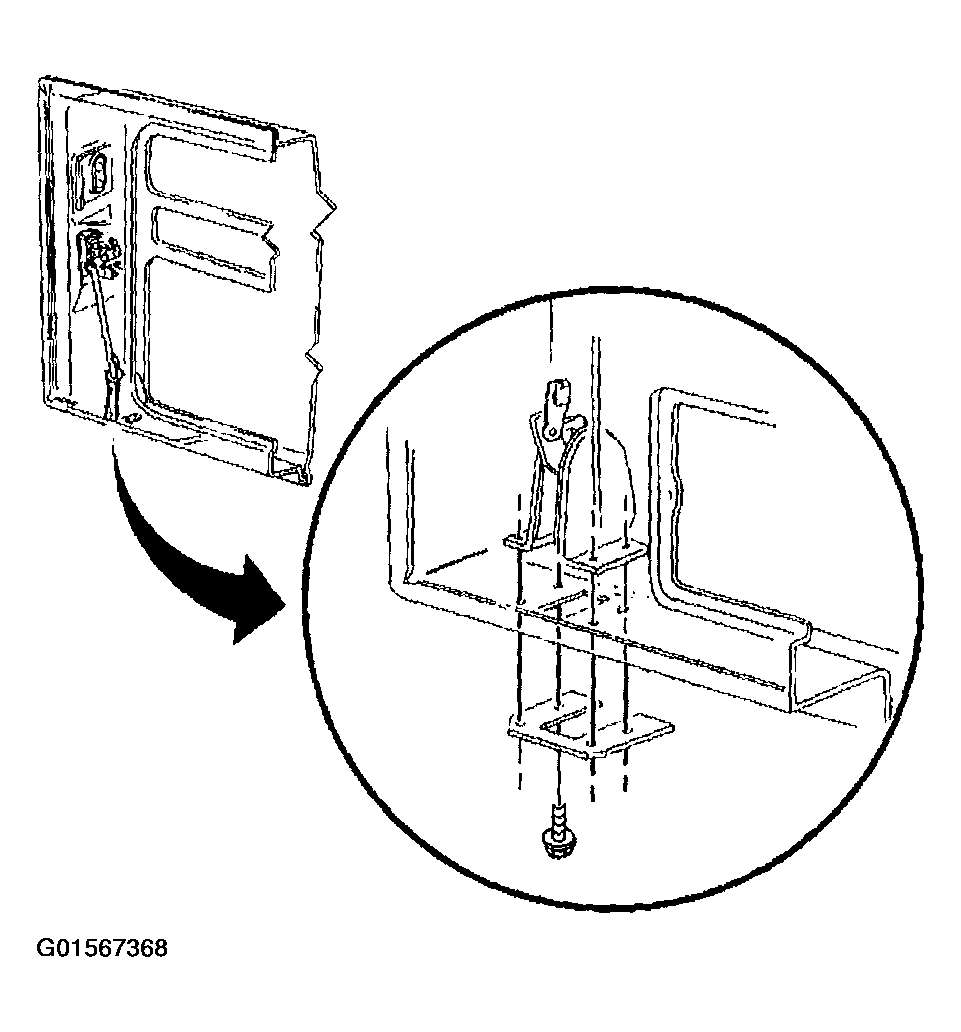

    Fig 2: Installing Bolts And Reinforcement
    G01567368Courtesy of GENERAL MOTORS CORP.

    Important:  Install new nylon retainers whenever you remove the control rods.

  4. Install the control rod to the lock assembly.
  5. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

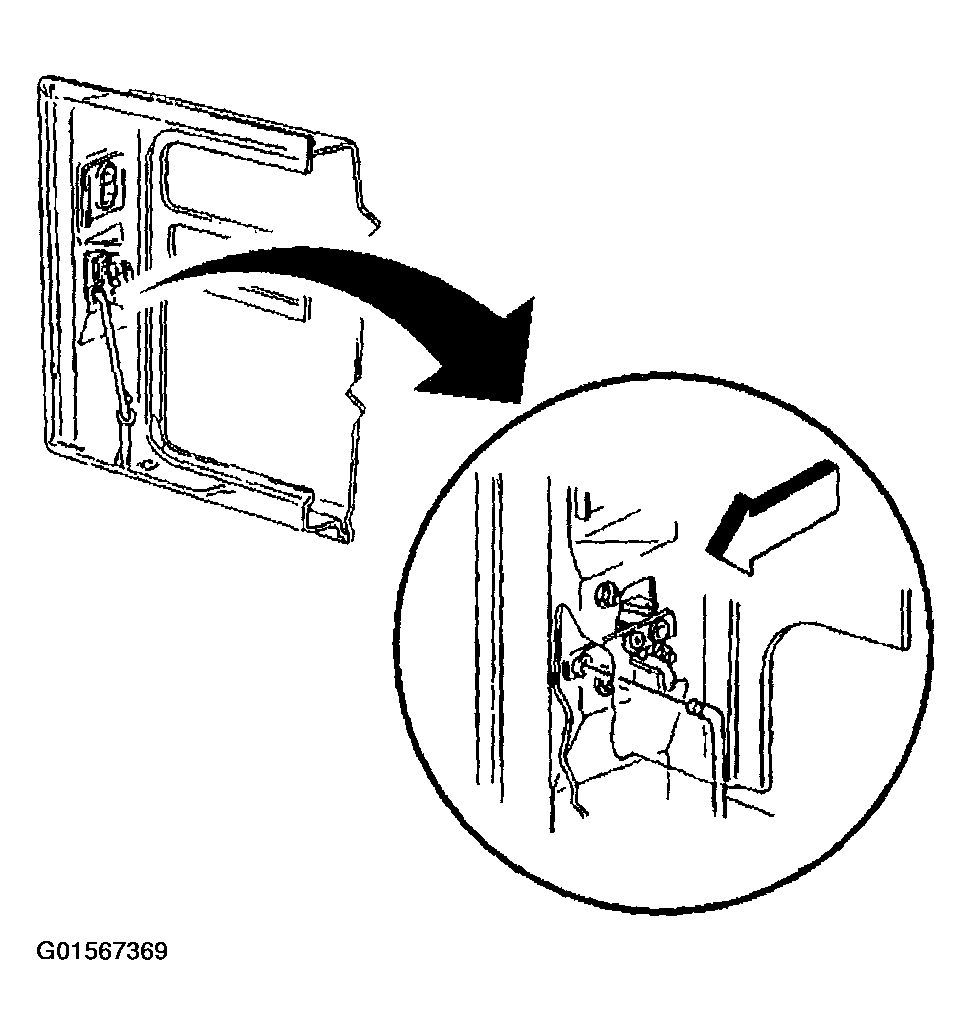

    Fig 3: Install Lock Assembly Control Rod
    G01567369Courtesy of GENERAL MOTORS CORP.
