Installation Procedure

Install the latch (4) with the control rod to the liftgate (3).

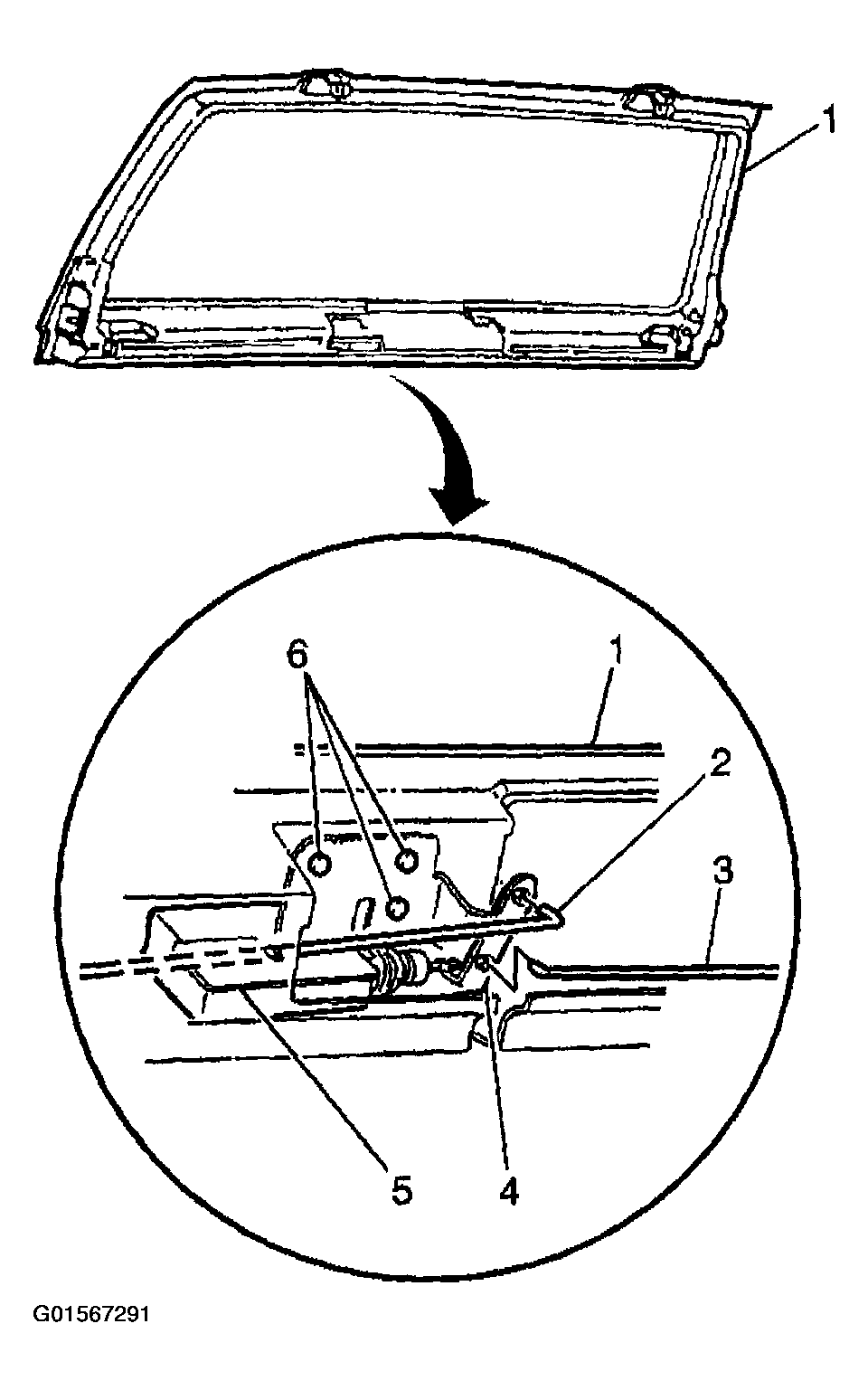

Fig 1: Installing Slide Latch With Control Rod To Liftgate
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Install the new retainers whenever the control rods are removed.
Install the liftgate latch screws (6).

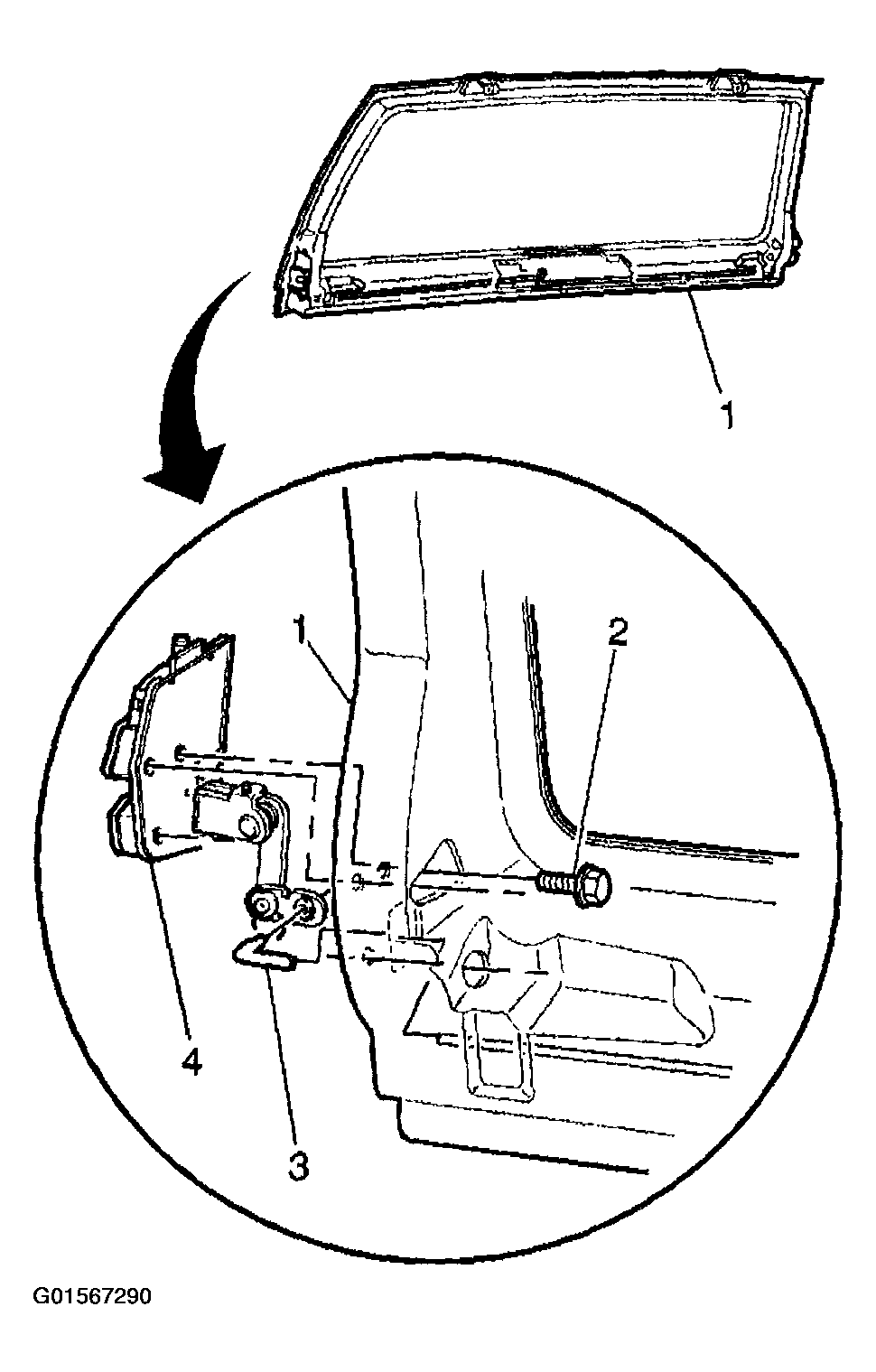

Fig 2: Installing Liftgate Latch Screws
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the liftgate latch screws to 10 N.m (88 lb in).
Use the following procedure in order to install the control rods to the actuator lever (2):
1. 3.1. Push the actuator lever and the control rod together (2).
2. 3.2. Push the control rod through the hole.
Install the liftgate garnish molding (1). Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE .
