Installation Procedure

  1. Install the clip to the lock cylinder (3).
  2. Install the lock cylinder to the door.

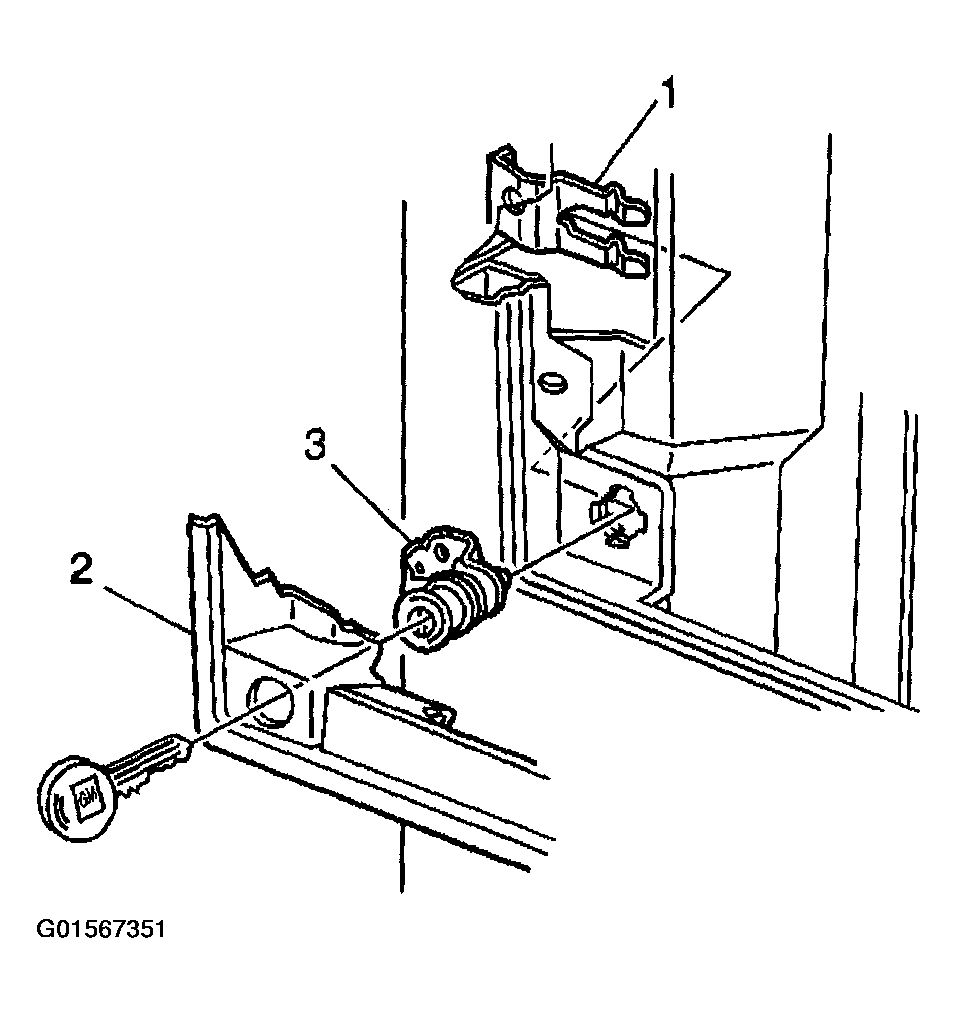

    Fig 1: Installing Lock Cylinder
    G01567351Courtesy of GENERAL MOTORS CORP.
  3. Install the lock cylinder retainer (1).
  4. Install the control rod to the lock cylinder through the clip.
  5. Install the door lock shield.
  6. Install the license plate housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the license plate housing bolts.

    Tighten

    Tighten the bolts to 4 N.m (35 lb in).

  8. Install the license lamp bolts.

    Tighten

    Tighten the bolts to 4 N.m (35 lb in).

  9. Install the clip to the outside handle.
  10. Install the outside handle to the door.
  11. Install the outside handle nuts.

    Tighten

    Tighten the nuts to 7 N.m (62 lb in).

    Fig 2: Installing Outside Handle Nuts
    G01567352Courtesy of GENERAL MOTORS CORP.
  12. Install the control rod (1) to the outside handle through the clip.

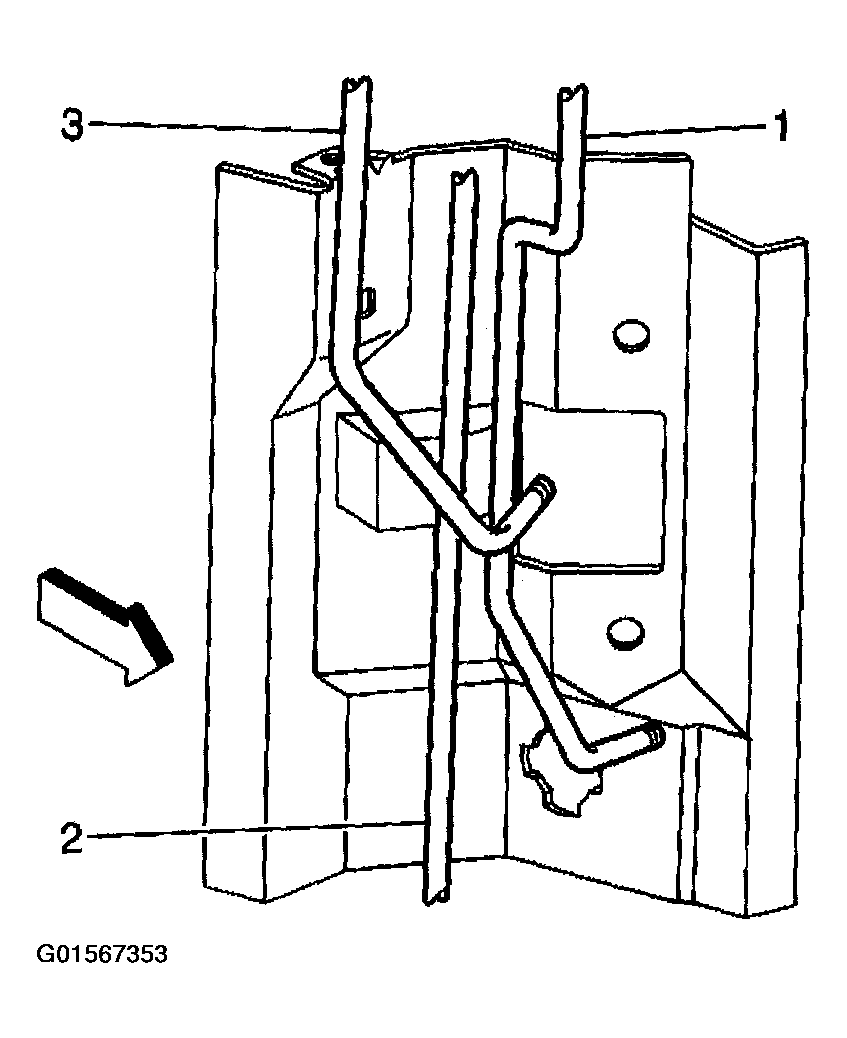

    Fig 3: Installing Control Rod To Outside Handle
    G01567353Courtesy of GENERAL MOTORS CORP.
  13. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  14. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
