Installation Procedure

  1. Install the outside handle to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the outside handle nuts.

    Tighten

    Tighten the outside handle nuts to 7 N.m (62 lb in).

  3. Install the control rod to the outside handle through the clip.
  4. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  5. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

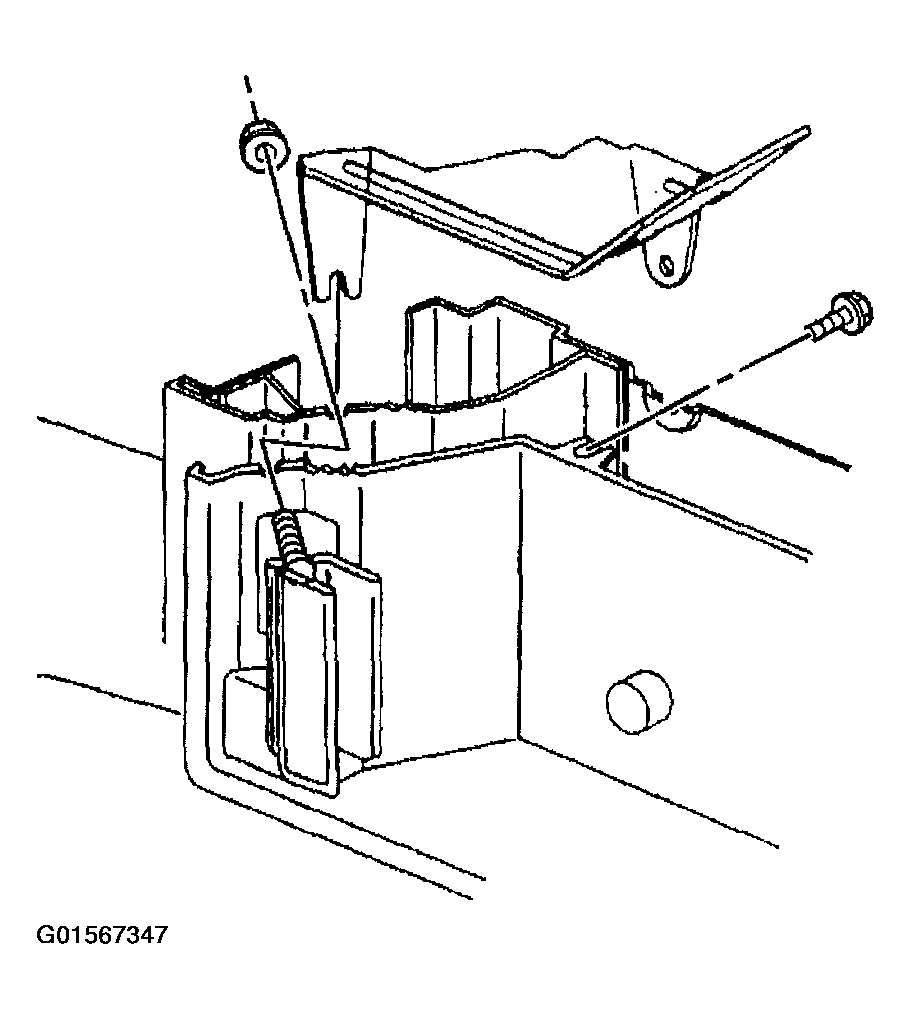

    Fig 1: Installing Rear Door Outside Handle
    G01567347Courtesy of GENERAL MOTORS CORP.
